IZH10-TFK19GB

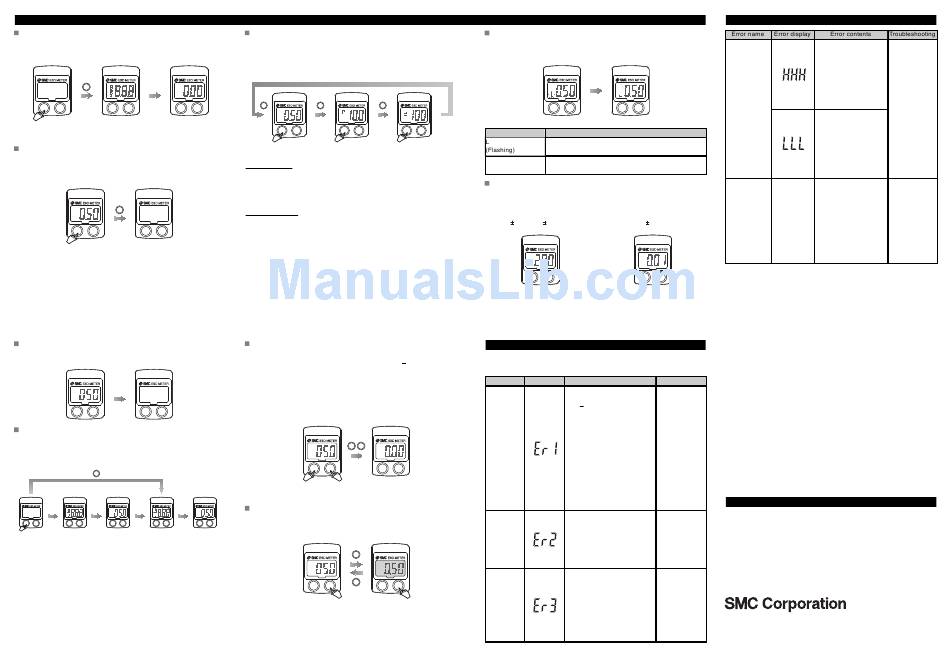

Setting
Power ON
When the "POWER" button is pressed with the meter off, the meter will
be turned on. All display segments are displayed for 1 second after the
meter is turned on.
POWER
kV kV kV
1 s after
POWER LIGHT POWER LIGHT POWER LIGHT
All display Instantaneous
segments are on value display
Power OFF
When the "POWER" button is pressed for 3 seconds or more with the
meter on, the meter will be turned off. If no buttons are pressed for a set
time the meter will automatically turn off. (For details, refer to Auto
Power-off function.)
POWER
kV kV
3 s
POWER LIGHT POWER LIGHT
To conserve battery life turn the meter off immediately after use.
Auto Power-off
If no buttons are pressed for 5 minutes or more the meter will turn off
automatically.
kV kV
5 min.
POWER LIGHT POWER LIGHT
Auto Power-off Extension
When the "POWER" button is pressed for 6 seconds or more with the
meter turned off, the auto power-off display will extend to 15 minutes.
(When the auto power-off extension is activated, all the display
segments will flash for 3 seconds.)
POWER
6 s
kV kV kV kV
3 s
POWER LIGHT POWER LIGHT POWER LIGHT POWER LIGHT
after
All display Instantaneous Flashing Instantaneous
segments are on value display value display
When the meter is turned off again, the auto power-off extension will be
cleared.
Peak/Bottom Hold Value
When the "POWER" button is pressed with the meter turned on, the display
will be changed to instantaneous value, peak hold value, bottom hold value
and back to instantaneous value, in that order.
Note) Release the "POWER" button after "P" or "b" is displayed so the meter is not
turned off.
POWER POWER
kV kV
POWER LIGHT POWER LIGHT
Instantaneous value Peak hold value
Peak hold value
The maximum charged potential detected and "P" are displayed.
The maximum charged potential is continuously detected and updated from
when the peak hold is started. If a value greater than the displayed charged
potential is detected, the display will update to show the new value.
Bottom hold value
The minimum charged potential detected and "b" are displayed.
The minimum charged potential is continuously detected and updated from
when the bottom hold is started. If a value less than the displayed charged
potential is detected, the display will update to show the new value.
Zero Clear
The displayed value can be adjusted to zero for a measured charged
potential if it is in the range of the factory zero setting + 5 % F.S. (There
may be a slight deviation from the factory setting, due to variations in the
sensor itself and the ambient environment where the meter is used.)
When "POWER" and "LIGHT" buttons are pressed simultaneously for 6
seconds or more (with the meter on), the displayed value is reset to zero
and the meter will then return to measurement mode. Once the meter is
turned off, the offset value for Zero Clear is cleared.
POWER LIGHT
kV
6 s
POWER LIGHT
Instantaneous
value display
Backlight
When the "LIGHT" button is pressed while the meter is in measurement
kV
POWER LIGHT
mode, the backlight will turn on. Pressing the "LIGHT" button again will turn
the backlight off.
LIGHT
kV
LIGHT
POWER LIGHT
Battery LOW
When the power from the batteries is running low, "L" will appear on the
display. Depending upon how much power is left in the batteries, "L" will be
displayed differently.
POWER
POWER
kV
POWER LIGHT
Display
The batteries are low.
Bottom hold value
Prepare to replace with new batteries.
L The batteries are very low.
(ON continuously) Replace with new batteries immediately.
Display resolution change
The display resolution changes depending upon the measured charged
potential value.
<Display example>
1.0 kV to 20.0 kV
kV
POWER LIGHT
Display resolution: 0.1 kV
Error Indication
When a malfunction or an error occurs, information about the affected part
and type of error will be displayed.
Error name Error display
Zero Clear
error
kV
POWER LIGHT
Sensor error
kV
POWER LIGHT
System
error
Error Indication (continued)
kV kV
Measurement
LIGHT POWER LIGHT
error
Cable
0 to 0.99 kV
breakage
kV
POWER LIGHT
Display resolution: 0.01 kV
Error contents Troubleshooting
A charged potential greater
than + 5 %F.S. of the factory
zero setting was present when
Zero Clear was performed.
*The error display lasts for
Return to
approx. 1 s and then the
uncharged
meter returns to
condition, and
measurement mode. There
perform Zero
may be a slight deviation
Clear again.
from the factory setting, due
to variations in the sensor
itself and the ambient
environment where the meter
is used.
Contact
AUSTRIA
BELGIUM
Stop using
CZECH REP.
immediately and
DENMARK
The sensor is broken. contact the local
FINLAND
SMC sales
FRANCE
branch.
GERMANY
GREECE
HUNGARY
Turn the meter
IRELAND
off and on
ITALY
again.
If the error has
There is an internal data error.
not cleared,
contact the local
SMC sales URL http://www.smcworld.com (Global) http://www.smceu.com (Europe)
branch.
Specifications are subject to change without prior notice from the manufacturer.
© 2009 SMC Corporation All Rights Reserved.
The value of charged
potential being
Eliminate static
measured is higher than
electricity until
the upper limit for the
the charge is
sensor or the sensor is
within the
too close to the
measurable
measurement target.
voltage range.
Also, check if
the sensor is
The value of charged
the correct
potential being
distance from
measured is lower than
the
the bottom limit for the
measurement
sensor or the sensor is
target.
too close to the
measurement target.
Correct measurements
cannot be made if any Stop using
of the wires in the cable immediately
are broken. Even if the and contact the
-
sensor is still, local SMC sales
functioning and detects branch.
a charged potential the
display may not change.
