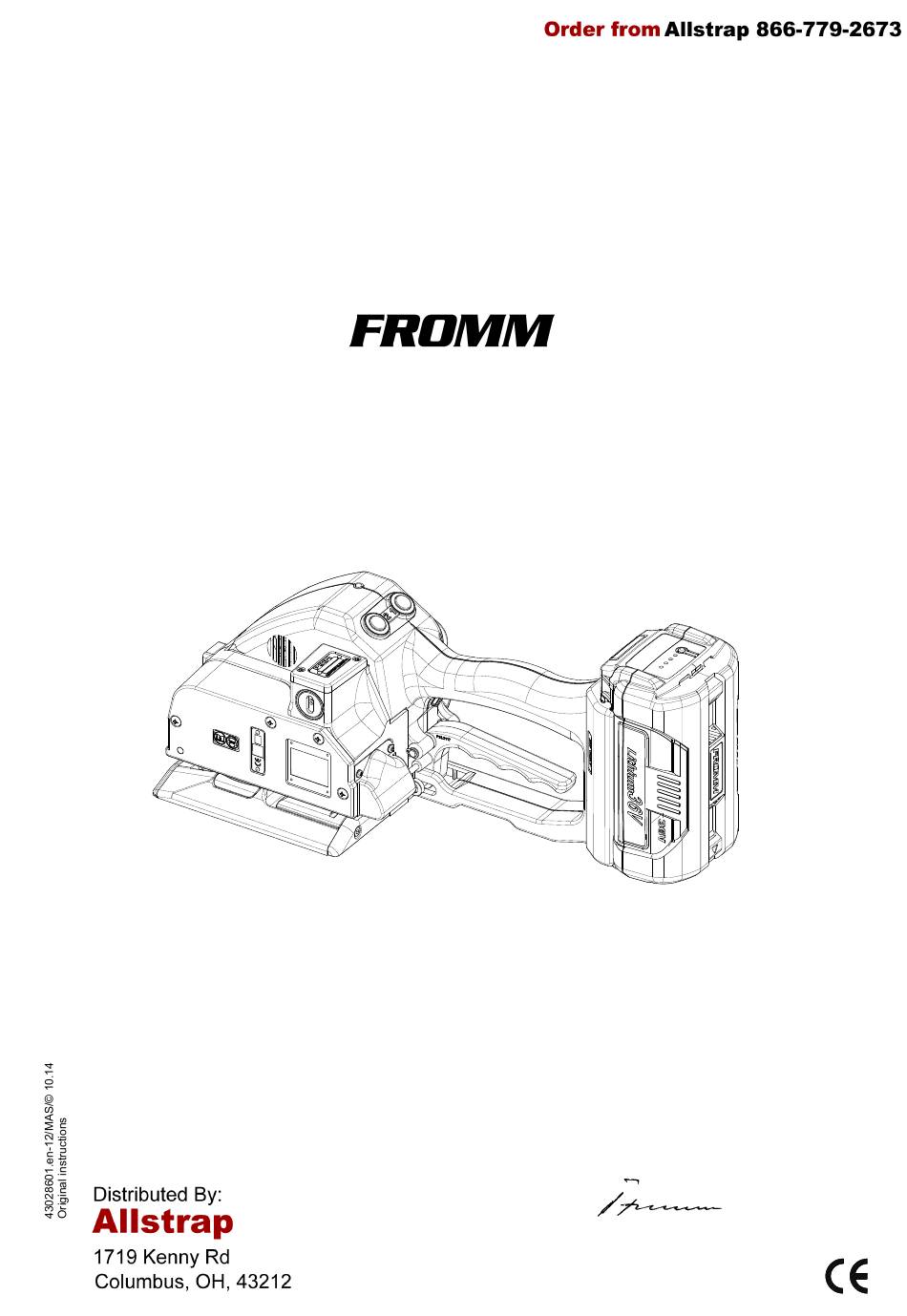

OPERATION MANUAL / SPARE PARTS LIST
BATTERY - POWERED
PLASTIC STRAPPING TOOL
MODEL P331 M/HA
43.0286.01
CE Declaration of conformity
We declare that the machine P331
is in conformity with the following standard or
standardised documents:
2006/42/EC,
2004/108/EC
Technical file at:
M.Rauch
FROMM System GmbH
Neulandstrasse 10
D-77855 Achern
06.03.2014
R.Fromm
Director
FROMM Holding AG
Hinterbergstrasse 26
CH - 6330 Cham

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P331 M/HA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Fromm P331 M/HA

  • Page 1 OPERATION MANUAL / SPARE PARTS LIST BATTERY - POWERED PLASTIC STRAPPING TOOL MODEL P331 M/HA 43.0286.01 CE Declaration of conformity We declare that the machine P331 is in conformity with the following standard or standardised documents: 2006/42/EC, 2004/108/EC Technical file at: M.Rauch...
  • Page 2: Table Of Contents

    Seal - Control ............. . 14 CHART OF TYPES P331 M/HA ELECTRIC SCHEMATIC ELS.1084...
  • Page 3: General Power Tool Safety Warnings

    GENERAL POWER TOOL SAFETY WARNINGS WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mainsoperated (corded) power tool or battery-operated (cordless) power tool.
  • Page 4 f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.
  • Page 5: Safety Rules For Strapping Tools

    SAFETY RULES FOR STRAPPING TOOLS 2.1 Joints You are fully responsible to review the joints made by your tool. Become familiar with the seal control and seal adjustment described in this operation manual. Misformed joints may not secure the load and could cause serious injury. Never handle or ship any load with improperly formed joints.
  • Page 6: Technical Data

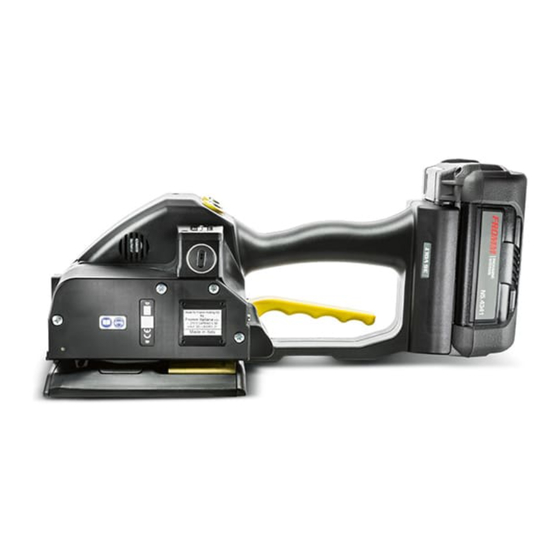

    TECHNICAL DATA Description of the tool The tool model P331 has been designed to strap packages with plastic strapping. The plastic strapping is fed around the package manually or in combination with a strap feeder. The straps are inserted in the tool, tensioned, sealed by friction welding and separated from the strap coil.
  • Page 7: Accessories

    Working temperature The ambient temperature should be between -10° and 45° C (14° and 113°F). The best performance is achieved between 15° and 20°C (59° and 68°F). ACCESSORIES Use only parts and accessories mentioned in the operating instruction. Using other parts or accessories can cause injuries to you and other persons. Battery The battery is not automatically supplied with the tool.
  • Page 8: Suspension

    Suspension When working stationary the P331 can be suspended at a spring loaded balancer by using a suspension bracket. With the swivel mounted suspension bracket the package can be strapped in various working positions. The complete suspension bracket can be ordered under item number P33.0216. P33.0216 P33.2147 ...
  • Page 9: Wearing Plate

    Wearing plate As an option, the tool can be equipped with a wearing plate to protect the base from excessive wear on abrasive package surfaces. The complete wearing plate can be ordered together with the fastening screws under item number P33.0214.
  • Page 10: Operation

    OPERATION Installation Do not expose power tools to rain or wet conditions! The batteries are supplied partially charged. Before the first use, the battery must be completely charged. See separate operating instruction of the battery charger. Never charge a damaged battery. Replace by a new one immediately. Do not open batteries and store them only in dry and frost-proof rooms.
  • Page 11: Adjustments

    Adjustments 6.2.1 Preselecting of strap tension and tensioning speed Do not adjust the tensioning force too high. If the tensioning force is higher than the tensioning strength of the strap, the strap will tear while the tensioning. Tensioning force and tensioning speed can be preselected Adjusting knob tensioning force / with the upper adjusting knob.
  • Page 12: Feeding The Strap Around The Package

    Feeding the strap around the package • The strapping is fed around the package as illustrated. Warning! The plastic strap which will be welded must be free from oil, grease and other dirt. Dirty plastic straps can't be welded correct! Inserting the strap •...
  • Page 13: Sealing The Straps, Operation Mode Manual

    Sealing the straps, Operation mode Manual • Press and release immediately the sealing button. The plastic strap is welded and cut off from the rest of the strap. During the welding the LED lights green. After elapsing of the adjusted welding time (see 6.2.2) the cooling time begins (LED lights yellow).
  • Page 14: Seal - Control

    The seal efficiency is affected. Warning! Straps with insufficient seal strength must be removed from the package! Adjust the welding time (see 6.2.2). CHART OF TYPES P331 M/HA Item No. Model Strap width Strap thickness 43.0274...
  • Page 15: Exchange Of Wearing Parts

    EXCHANGE OF WEARING PARTS Remove always the battery from the tool before starting maintenance works. Exchange of tensioning wheel and grippers Disassembling • Unscrew cover P33.2143 and remove it; • Unscrew end cover P35.0226 and remove it; • Raise tension wheel by lifting the handle lever P33.2117; •...
  • Page 16: Exchange Of Cutter, Welding Stop Gripper And Welding Gripper

    Exchange of cutter, welding stop gripper and welding gripper Disassembling • Unscrew motor housing and remove it; • Unscrew cover P33.2143 and remove it; • Unscrew end cover P35.0226 and remove it; • Lift tension gear; pull off tensioning wheel together with bearing N31.1148 from the body. •...
  • Page 17: Adjustment Of The Coupler

    Assembly advise • During assembling move the strap guide plate P35.4105 downwards against the holding gripper. • Before mounting the motor housing check the proper seat of the tube P31.1124, it must be pushed in completely (see drawing). • Pay attention to the fitting position of the cutter (see drawing). •...
  • Page 18: Transport

    14 WARRANTY CONDITIONS AND LIABILITY FROMM Holding AG warrants all its strapping tools and machine heads during a period of 12 months from the date sale. The warranty includes all deficiencies clearly resulting from poor manufacturing or faulty materials. Damage claims as a result of production shutdowns and claims for damage to persons and to property resulting from warranty deficiencies cannot be asserted by the customer.
  • Page 19 43028601.z...
  • Page 20 43028601.z...
  • Page 21 43028601.z...
  • Page 22 43028601.z...
  • Page 23 16 SPARE PARTS LIST 43.0286.01 43.0286.01 P331/25/1.20-1.35/7.0 P331.0001.01 17.06.14 Item-No. in group Pcs. Description Dimension Field N1.1168 3 SCREW M5 X 16 N1.1305 6 SCREW M4 X 7.8 N1.1553 P35.0227 1 HEXAGON SCREW M4 X 8 N1.1919 1 SCREW M4 X 16 N1.1924 1 SCREW M4 X 65...
  • Page 24 1 LABEL <<CE>> N43.9181 1 ADHESIVE LABEL 20 X 10 X 0.1 N43.9182 1 TYPE PLATE <<P331>> N44.9104 P33.2113 1 ADHESIVE LABEL <<FROMM>> N44.9139 P33.2111 1 ADHESIVE LABEL N44.9139 P33.2113 1 ADHESIVE LABEL N44.9140 P33.2113 1 ADHESIVE LABEL N5.1193 P33.0212 1 GEAR MOTOR N5.2702...
  • Page 25 43.0286.01 P331/25/1.20-1.35/7.0 P331.0001.01 17.06.14 Item-No. in group Pcs. Description Dimension Field [P33.0204] P33.0212 1 GEAR WHEEL [P33.0205] P33.0208 1 GEARING COVER [P33.0206] P33.0208 1 LEVER [P33.0207] P33.0208 1 GEAR BODY [P33.0208] P33.0212 1 GEAR B14+ [P33.0209] P33.0212 1 CONICAL GEAR WHEEL [P33.0210] P33.0212 1 GEAR WHEEL...
  • Page 26 43.0286.01 P331/25/1.20-1.35/7.0 P331.0001.01 17.06.14 Item-No. in group Pcs. Description Dimension Field P35.4110 P33.0212 1 DRIVING PIN P35.4111 P33.0212 2 DRIVER D10+ P35.4150 P35.0213 1 GEAR WHEEL P35.4151 P35.0214 1 GEAR WHEEL P35.4154 P35.0214 1 PLANET SHAFT P35.4155 P35.0214 3 PINION P35.4156 P33.0206 1 LEVER...
