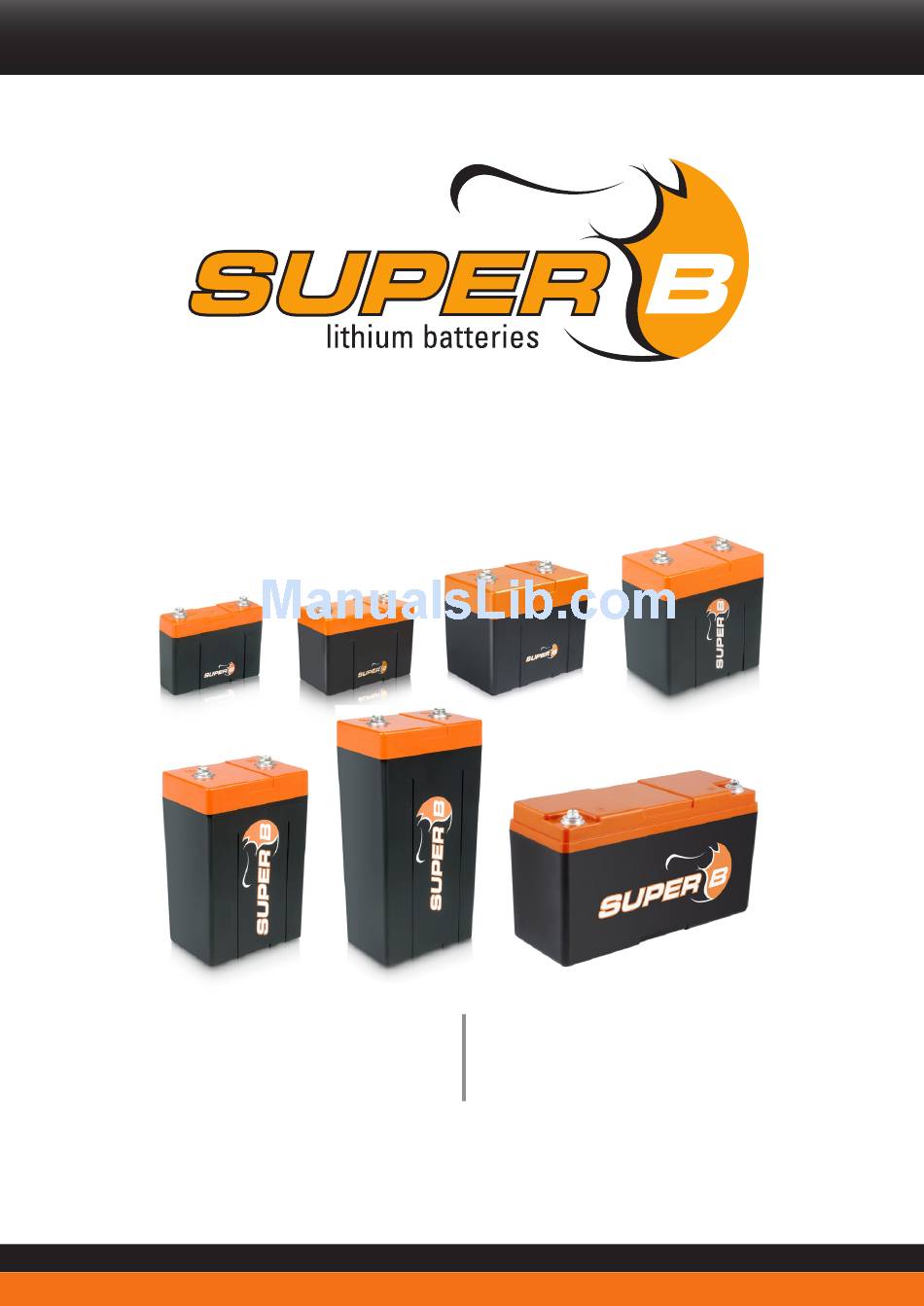

- Page 1 Manual Version May 2018 12.7V STARTER BATTERIES Lithium Iron Phosphate...
- Page 2 User Manual Super B Lithium Iron Phosphate starter batteries This is the Super B starter battery manual, belonging to the following starter batteries: - SB12V2600P-AC - SB12V10P-DC - SB12V20P-FC - SB12V5200P-BC - SB12V15P-EC - SB12V20P-SC - SB12V7800P-CC - SB12V15P-SC - SB12V25P-SC With our roots in motorsports, Super B knows what it takes to develop and produce batteries that are light-weight, high performing and reliable in extreme environments.
- Page 3 Information in this publication supersedes that in all previously published material. Specifications and price change privileges reserved. Super B is a registered trademark of Super B International b.v. For more information, or to order documents, contact: Super B International b.v. Expolaan 50 7556 BE Hengelo (Ov) The Netherlands Tel: +31(0)748200010 E-mail: support@super-b.com...
-
Page 4: Table Of Contents
Table of content 1. Introduction 1.1. Product description 1.2. Glossary of Terminology 1.3. Used symbols 2. Product specifications 2.1. Product features 2.2. General product specifications 2.3. Technical specifications 2.3.1. Battery designation 2.3.2. Electrical properties (23°C) 2.3.3. Dimensions ± 1mm 2.4. Environmental conditions 2.5. - Page 5 Super B Be in charge 7. Storage 8. Transportation 8.1. General 9. Disposal and recycling 9.1. General information 10. Troubleshooting 11. Warranty and liability Appendix I. Declaration of Conformity...
-
Page 6: Introduction
4. This battery is specially developed for motorsport. If you want to use it on road, please consult Super B. In Appendix I, the Declaration of Conformity for Super B starter batteries is given. 1.2. Glossary of Terminology The products maximum lifespan, achieved by following the guidelines... -
Page 7: Product Specifications
Super B Be in charge Product specifications 2.1. Product features • Starter battery • Lithium Iron Phosphate (LiFeP04): Safe lithium technology • High performance, even under extreme conditions • Fast charging and high discharge current • Extremely high discharge pulse current •... -
Page 8: Battery Designation
Rated Charge Product name: current pulse current at 20 °C (rated capacity current continuous (1 sec)) capacity) SB12V2600P-AC 2.5Ah Max 10A 136A (54C) 2.5Ah / 31.3Wh SB12V5200P-BC 5Ah Max 19A 255A (51C) 5.0Ah / 62.5Wh SB12V7800P-CC 7.5Ah Max 27A 120A 375A (50C) 7.5Ah / 93.8Wh... -
Page 9: Dimensions ± 1Mm
Super B Be in charge 2.3.3. Dimensions ± 1mm Product name: Height (H): Width (W): Thickness (T): SB12V2600P-AC 84mm 114mm 35mm SB12V5200P-BC 84mm 114mm 62mm SB12V7800P-CC 98mm 120mm 82mm SB12V10P-DC 124mm 120mm 82mm SB12V15P-EC 181mm 120mm 82mm SB12V20P-FC 238mm 120mm... -
Page 10: Environmental Conditions
2.4. Environmental conditions Warning! The Li-ion battery may only be used in conditions specified in this manual. Exposing the battery to conditions outside the specified boundaries may lead to serious damage to the product and/or the user. When the batteries are placed in an enclosed environment without air circulation, it is advised to provide 2 ventilation holes of 100mm x 100mm each, to prevent heat built-up. -
Page 11: Connections
Super B Be in charge 2.7. Connections Figure 3. Connections X1: Battery Terminal up to 95mm wire connection X2: Battery Terminal up to 95mm wire connection 2.8. Optional Components Description Article name EAN code For SB12V10P-DC SB Battery Bracket DC... -
Page 12: Safety Guidelines And Measures
Safety guidelines and measures 3.1. General • Do not short-circuit the Li-ion battery. • Treat the Li-ion battery as described in this manual. • Do not dismantle, crush, puncture, open or shred the Li-ion battery. • Do not expose Li-ion battery to heat or fire. Avoid exposure to direct sunlight. •... -
Page 13: Disposal
Super B Be in charge 3.2. Disposal Dispose of the Li-ion battery in accordance with local, state and federal laws and regulations. The Li-ion battery may be returned to the manufacturer. Do not mix with other (industrial) waste. -
Page 14: Safety Symbols And Markings On Product
3.3. Safety symbols and markings on product Several safety symbols and markings can be found on the product. These markings are displayed below. Never remove these markings! The meanings of the symbols: Shield eyes 14340_067_id_SUPB_Labels_Safety_30x70.indd 1 26-04-17 09:27 Note operating instructions Battery acid Explosive gas No smoking, no naked flames, no sparks... -
Page 15: Installation
Super B Be in charge Installation 4.1. General information Warning! Never install or use a damaged battery. Warning! Never short circuit the battery. Warning! 12V systems only. Never install multiple Li-ion batteries in series. Caution! Do not reverse connect the power cables (polarity) 4.2. -
Page 16: Placement Of The Battery
4.3.1. Placement of the battery Before it is used, the Li-ion battery must be positioned in such a way that it will not move around in its compartment during use. Use appropriate brackets for mounting. 4.4. Connection wires Use appropriate wire for the connection wires to ensure no overheating or unnecessary losses occur. -
Page 17: Connecting A Charger To The Battery
Super B Be in charge Figure 5. Place terminal covers over the terminals. 4.5. Connecting a charger to the battery Warning! Ensure you have completed all the previous steps described in chapter 4 before connecting the battery to the charger. -
Page 18: Battery Use
Battery use 5.1. General information Warning! Follow the safety guidelines and measures of chapter 3 5.2. Charging Warning! Never overcharge the Li-ion battery, this will permanently damage the battery. Caution! Charge before use. Caution! Disconnect the charger from the battery if it is not used for a long time. Caution! To preserve the lifespan of the Li-ion battery, use a Super B charger or a charger approved by Super B. -
Page 19: Charging Method
Table 11. Charging rates at different charge currents * Charge time: max 25 minutes ** Charge time: approximately 1 hour 5.2.2. Charging method Super B recommends using the following charging method. Charge profile Super B Batteries Charge Profile Super B Batteries Bulk Absorption Float... - Page 20 Bulk phase In this phase the batteries are charged with a constant current up to the end of charge voltage (Ubulk), If UBulk is reached the charger will automatically switch to absorption phase. The maximum charge current (Imax) for Super B batteries is mentioned in table 11, however for endurance cycle life Super B suggests to limit the current to 1C = nominal battery capacity.
-
Page 21: Inspection, Cleaning And Maintenance
Super B Be in charge Float phase In this phase the charge voltage is set to UFloat. Float Phase Typical 13.8V DC 13.6V DC 14V DC Float Table 14. Float Phase Maintenance phase If supported by the charger, every t3 hours the charger can do a maintenance charge to make sure that the batteries are kept fully charged. -
Page 22: Cleaning
6.3. Cleaning If necessary, clean the Li-ion battery with a soft, dry cloth. Never use liquids, solvents, or abrasives to clean the Li-ion battery. Storage Follow the storage instructions in this manual to optimize the lifespan of the Li-ion battery during storage. -
Page 23: Transportation
Super B Be in charge Transportation 8.1. General To transport the Li-ion battery, make sure the transportation terminal is installed. Always check all applicable local, national, and international regulations before transporting a Li-ion Iron Phosphate battery. Transporting an end-of-life, damaged, or recalled battery may, in certain cases, be specifically limited or prohibited. -
Page 24: Disposal And Recycling
Disposal and recycling 9.1. General information Always discharge the battery before disposal. Use electrical tape or other approved covering over the battery connection points to prevent short circuits. Battery recycling is encouraged. Dispose of the battery in accordance with local, state and federal laws and regulations. -
Page 25: Warranty And Liability
In the event that any such damage has arisen, the customer must notify Super B thereof as soon as possible, in any event no later than three (3) days after delivery, by means of accurate, written statement, stating the damage and where possible a photograph. - Page 26 These policies contain a usual limitation of insurance payment to be paid out to Super B if, and to the extent that, the event is a covered event.
-
Page 27: Appendix I. Declaration Of Conformity
Super B Be in charge Appendix I. Declaration of Conformity... - Page 29 For more information, or to order documents, contact: Super B International b.v. Expolaan 50 7556 BE Hengelo (Ov) The Netherlands Tel: +31(0)748200014 (support) E-mail: support@super-b.com www: www.super-b.com Manual May 2018...
