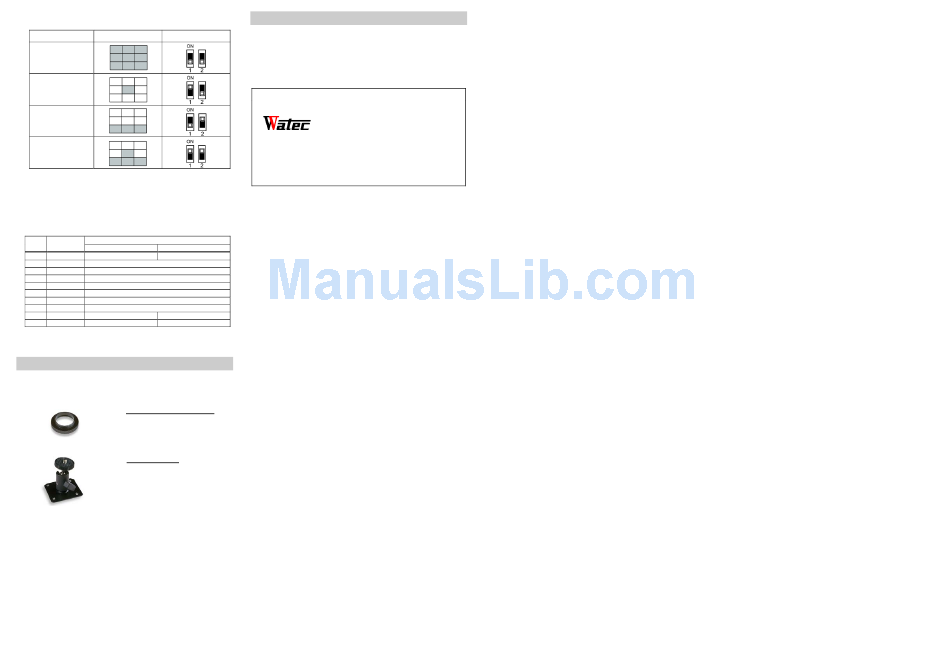

11) Select any required back light area by ⑬BACK LIGHT to one of its 4
positions.
Area
Switch
1. Default
2. Center
3. Lower
4. Center - Lower
※The switches are set to OFF(Default) upon shipment.
12) Set the shutter mode by ⑭ELECTRONIC SHUTTER ON/OFF SWITCH
When shutter mode is OFF, fix the shutter speed to EIA1/60, CCIR1/50.
When shutter mode is ON, select the shutter speed mode by ⑮AE MODE
CONTROL.
※The switch is set to OFF upon shipment.
13) Select any required shutter speed by the ⑮AE MODE CONTROL to one of
its 10 positions.
Shutter Speeds (Sec.)
No.
Mode
EIA
CCIR
0
FL
1/100
1/120
1
ES
1/250
2
ES
1/500
3
ES
1/1000
4
ES
1/2000
5
ES
1/5000
6
ES
1/10000
7
ES
1/100000
8
EI: OFF
1/60-1/100000
1/50-1/100000
9
EI: FL
1/100-1/100000
1/120-1/100000
※An intense light may leave a trail on the screen longitude. This smearing is
a natural phenomenon and is not due to equipment failure or fault.
※The dial is set to 0(FL) upon shipment.
Options
To purchase these options, please contact the distributor or dealer from which
you purchased the WAT-902H
2/3
ULTIMATE.
C-mount Adaptor (30CMA-R)
This lens mount adaptor is used to
convert a CS-mount to a C-
mount.
Mini Stand (MS50)
A convenient stand for the
WAT-902H
2/3
ULTIMATE. With this
stand, the camera can be adjusted
to any desired angle.
Specifications
Design and specifications are subject to change without notice.
•
Watec is not responsible for any inconvenience or the attendant damages
•
to the video and monitoring recording equipment caused bymisuse, mis-
operation or improper wiring of our equipment.
•
If for any reason the WAT-902H
2/3
ULTIMATE does not work properly, or if you
have any questions regarding installation or operation, please contact the
distributor or dealer from which it was purchased.
Contact information
Watec Co., Ltd.
Add.:I
254-2 Nihonkoku, Daihoji, Tsuruoka- Shi,
Yamagata-Ken, 997-0017 Japan
TEL: +81-235-23-4400 FAX: +81-235-23-4409
E-mail: info-o@watec.co.jp
URL: http://www.watec. c o.jp
1340Z17-Y2000002
