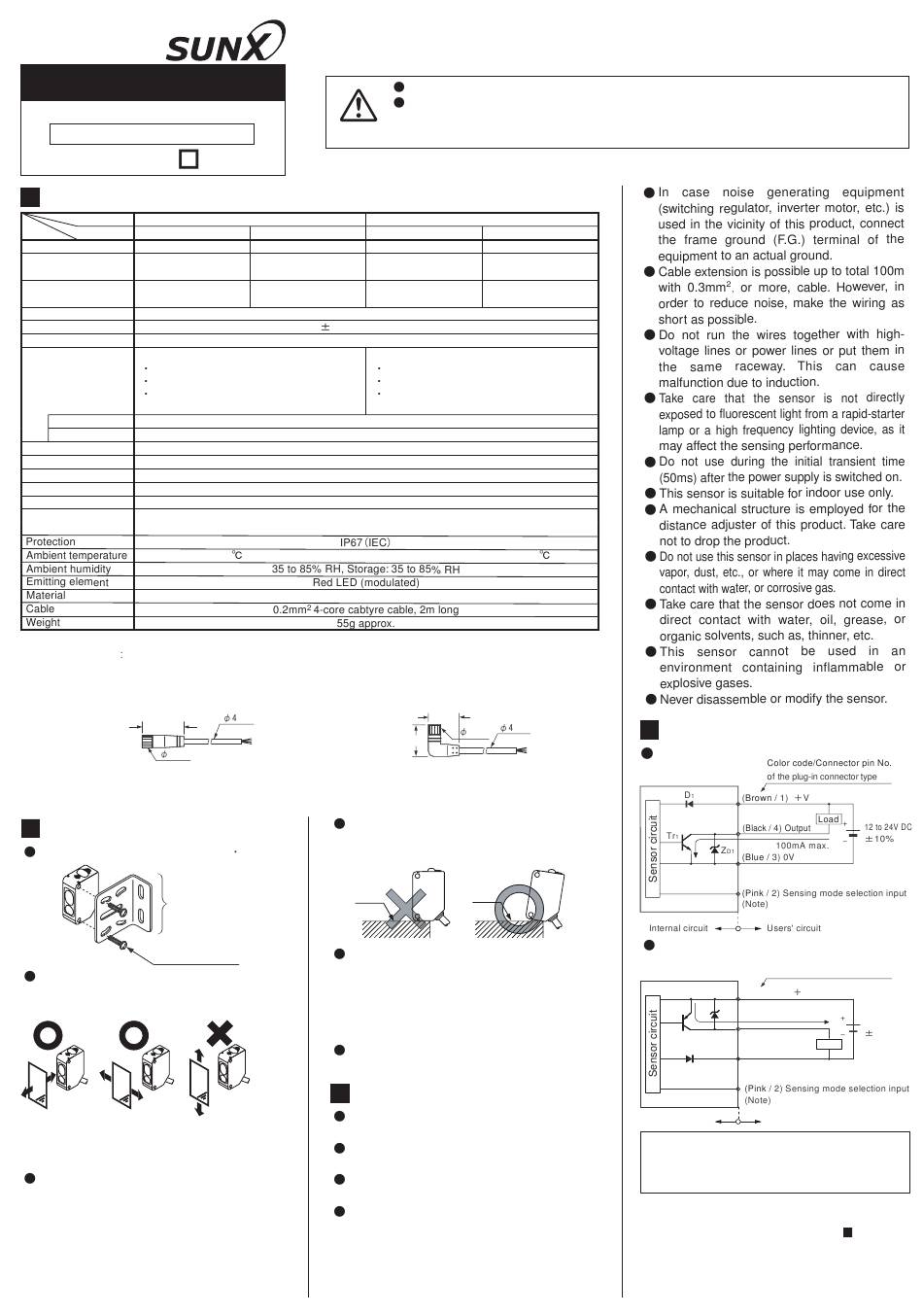

INSTRUCTION MANUAL

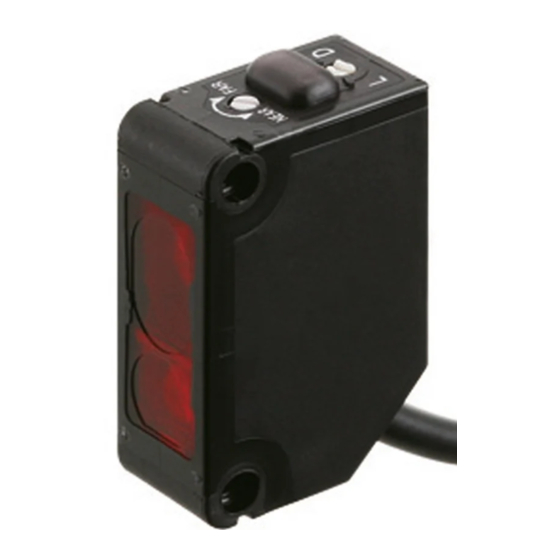

Compact Photoelectric sensor CX-400 series
Adjustable Range Reflective Type
CX-44
1

SPECIFICATIONS

Type
Item Model No. (Note 1) CX-441
Adjustable range (Note 2) 20 to 50mm
Sensing range
2 to 50mm
(with white non-glossy paper)
Hysteresis 2% or less of
(with white non-glossy paper) operation distance
Repeatability Along sensing axis: 1mm or less, Perpendicular to sensing axis: 0.2mm or less (with white non-glossy paper)
Supply voltage
Power consumption
NPN open-collector transistor
Maximum sink current: 100mA
Output Applied voltage: 30V DC or less (between output and 0V)
Residual voltage: 1V or less (at 100mA sink current)
Output operation
Short-circuit protection
Response time
Operation indicator
Stability indicator
Distance adjuster
Sensing mode BGS/FGS function Switchable with wiring of sensing mode selection input
Automatic interference
prevention function
-20 to +55
Enclosure: PBT, Front cover: Polycarbonate, Display cover: Polycarbonate
Notes: 1) The model No. with suffix '-Z' is M8 plug-in connecotor type.
(Example) CX-441-P-Z
For the M8 plug-in connector type, use the following mating cables.
CN-24A-C2 (Straight type, 4-core, cable length 2m) CN-24AL-C2 (Elbow type, 4-core, cable length 2m)
CN-24A-C5 (Straight type, 4-core, cable length 5m) CN-24AL-C5 (Elbow type, 4-core, cable length 5m)
31.4mm
9mm
2) The adjustable range stands for the maximum sensing range which can be set with the distance adjuster.
3) The detection may be unstable depending on the mounting conditions or the sensing object to be used. In the
state that this product is mounted, be sure to check the operation with the actual sensing object to be used.
2

MOUNTING

The tightening torque should be 0.5N m or less.
Sensor mounting bracket
MS-CX-3
(Optional)
M3 (length 12mm)
screw with washers
Care must be taken regarding the sensor
mounting direction with respect to the
object's direction of movement.
Sensing Sensing
object object
Do not make the sensor
detect an object in this
direction because it may
cause unstable operation.
When detecting a specular object (aluminum
or copper foil, etc.) or an object having a
glossy surface or coating, please take care
that there are cases when the object may
not be detected due to a small change in
angle, wrinkles on the object surface, etc.
Ramco Innovations - 1207 Maple Street, West Des Moines IA USA 50265 - 800-280-6933 - www.ramcoinnovations.com
Thank you very much for using SUNX products. Please read this Instruction Manual carefully and
thoroughly for the correct and optimum use of this product. Kindly keep this manual in a convenient
place for quick reference.
WARNING
NPN output
CX-442
40 to 300mm
20 to 300mm
5% or less of 2% or less of
operation distance operation distance
12 to 24V DC 10% Ripple P-P 10% or less
25mA or less
PNP open-collector transistor
Maximum source current: 100mA
Applied voltage: 30V DC or less (between output and +V)
Residual voltage: 1V or less (at 100mA source current)
0.4V or less (at 16mA sink current)
Switchable either Detection-ON or Detection-OFF
Incorporated
1ms or less
Orange LED (lights up when the output is ON)
Green LED (lights up under stable operating condition)
5-turn mechanical adjuster
Incorporated (Note 3)
(No dew condensation or icing allowed), Storage: -25 to +70
mm
When a specular body is present below the
sensor, use the sensor by tiling it slightly
upwards to avoid wrong operation.
Specular
face
If a specular body is present in the
background, wrong operation may be
caused due to a small change in the angle
of the background body. In that case, install
the sensor at an inclination and confirm the
operation with the actual sensing object.
Take care that there is a non-detactable
area right in front of the sensor.
3

CAUTIONS

Sensing object
Make sure that the power supply is off while
wiring and adjusting.
Take care that wrong wiring will damage the
sensor.
Verify that the supply voltage variation is
within the rating.
If power is supplied from a commercial
switching regulator, ensure that the frame
ground (F.G.) terminal of the power supply
is connected to an actual ground.
Never use this product as a sensing device for personnel protection.
In case of using sensing devices for personnel protection, use products which
meet standards, such as OSHA, ANSI or IEC etc., for personnel protection
applicable in each region or country.
PNP output
CX-441-P CX-442-P
20 to 50mm 40 to 300mm
2 to 50mm 20 to 300mm
5% or less of
operation distance
0.4V or less (at 16mA source current)
23.1mm
mm
9mm
20.5mm
Specular
face
Tilt
4

I/O CIRCUIT DIAGRAMS

NPN output type
PNP output type
Color code/Connector pin No.
of the plug-in connector type
(Brown / 1) V
Z
100mA max.
D2
Tr
2
(Black / 4) Output
D
2
(Blue / 3) 0V
Internal circuit Users' circuit
Symbols... D D : Reverse supply polarity protection diode
1, 2
:
Z Z Surge absorption zener diode
D1, D2
Tr : NPN output transistor
1
Tr :
PNP output transistor
2
Note: The sensing mode (BGS/FGS function) can be
selected by wiring of the sensing mode selection
input (pink / 2). For details, refer to '
FUNCTION'.
12 to 24V DC
10%
Load
6 BGS/FGS
