Operation

6 Operation
The device has been designed for use in a system
complying with the PROFINET standard. For successful
operation, the controller must also support all functions
and interfaces described in this manual.

6.1 Device Classification

The PROFINET Module is a PROFINET IO device managed
by an IO controller over Ethernet.

6.3 LEDs

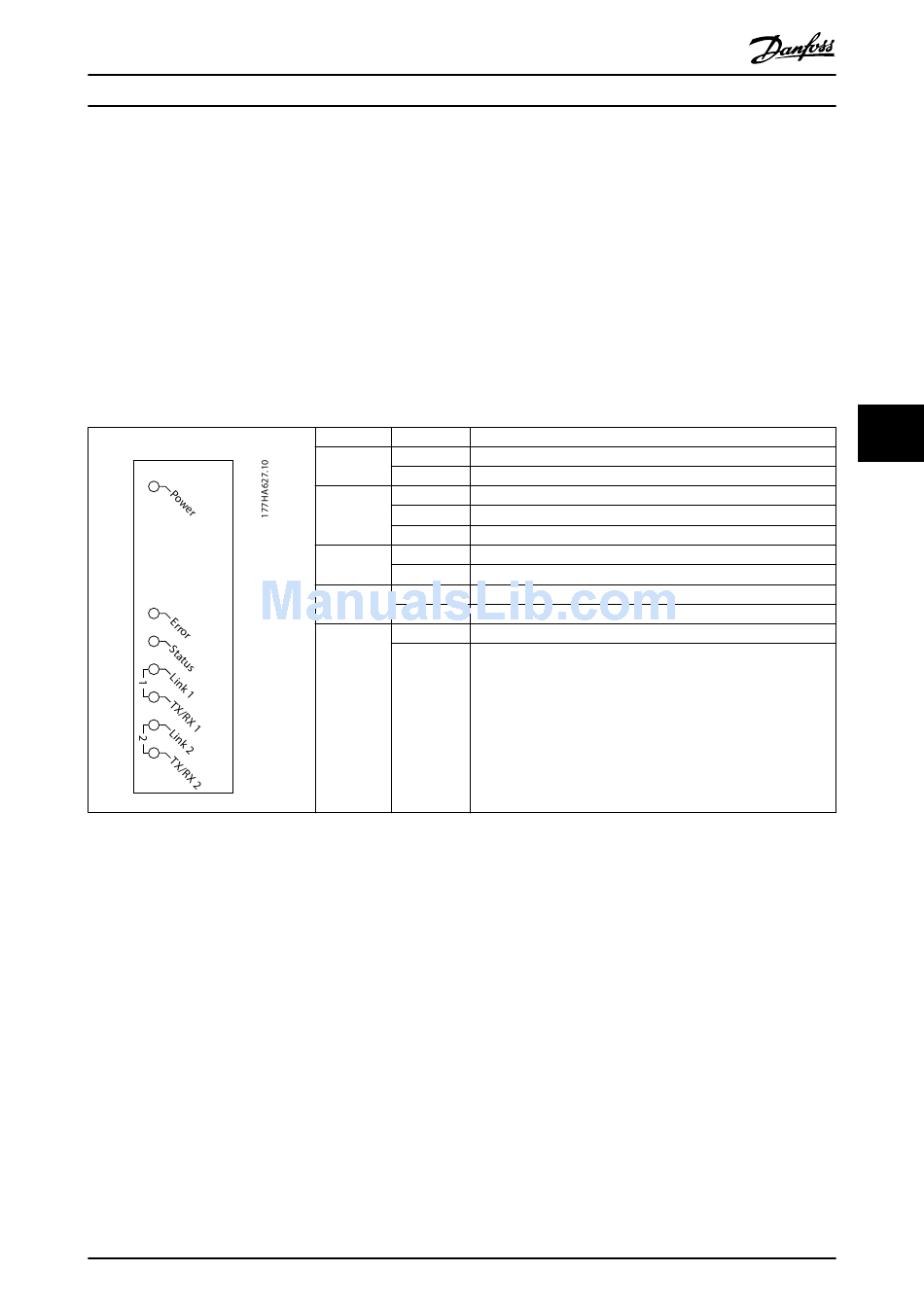

Table 6.1 Feedback LEDs
MG17P102
Installation Guide

6.2 Master Configuration

Import the latest GSDML file into the master configuration
tool. The file is available from drives.danfoss.com/
services/pc-tools.
If the master uses on-screen icons, 2 graphic bitmaps files
are available from the website. SSPM_N.bmp indicates
normal mode. SSPM_D.bmp indicates diagnostic mode.
LED name LED status Description
Off The module is not powered up.
Power
On The module receives power.
Off No error.
Error Flashing No data exchange.
On No physical link or slow physical link. No configuration.
Off No error.
Status
Flashing DCP signal service initiated via the bus.
Off No network connection.
Link x
On Connected to a network.
TX/RX x Flashing Invalid controller.
On Transmitting or receiving data.
