INSTALLATION INSTRUCTIONS FOR PART INSTGMOS-LAN-02

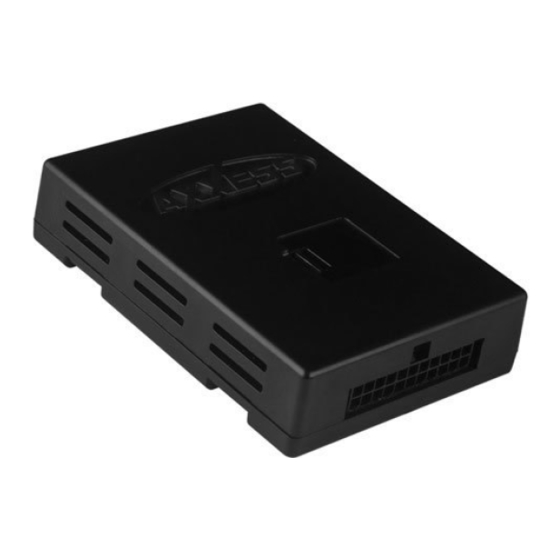

GMOS-LAN-02
GM LAN 29 Amplified OnStar
Interface 2006-up
See inside front cover
KIT FEATURES
• Provides accessory (12-volt 10-amp)
• Retains R.A.P. (Retained Accessory Power)
• Used in amplified systems
• Retains chimes
• Provides NAV outputs (Parking Brake, Reverse, Mute, V.S.S.)
• ASWC harness included (ASWC not included)
• Retains OnStar/OE Bluetooth
• Adjustable volume for chimes and OnStar
• High level speaker input
• USB updatable
• Retains balance and fade
• Retains factory back-up camera
• Includes antenna adapter
INTERFACE COMPONENTS
GMOS-LAN-02 interface • 16 pin harness with stripped leads • 18-pin harness to 30 pin
GM harness with stripped leads • BACKUPCAM harness • Antenna adapter

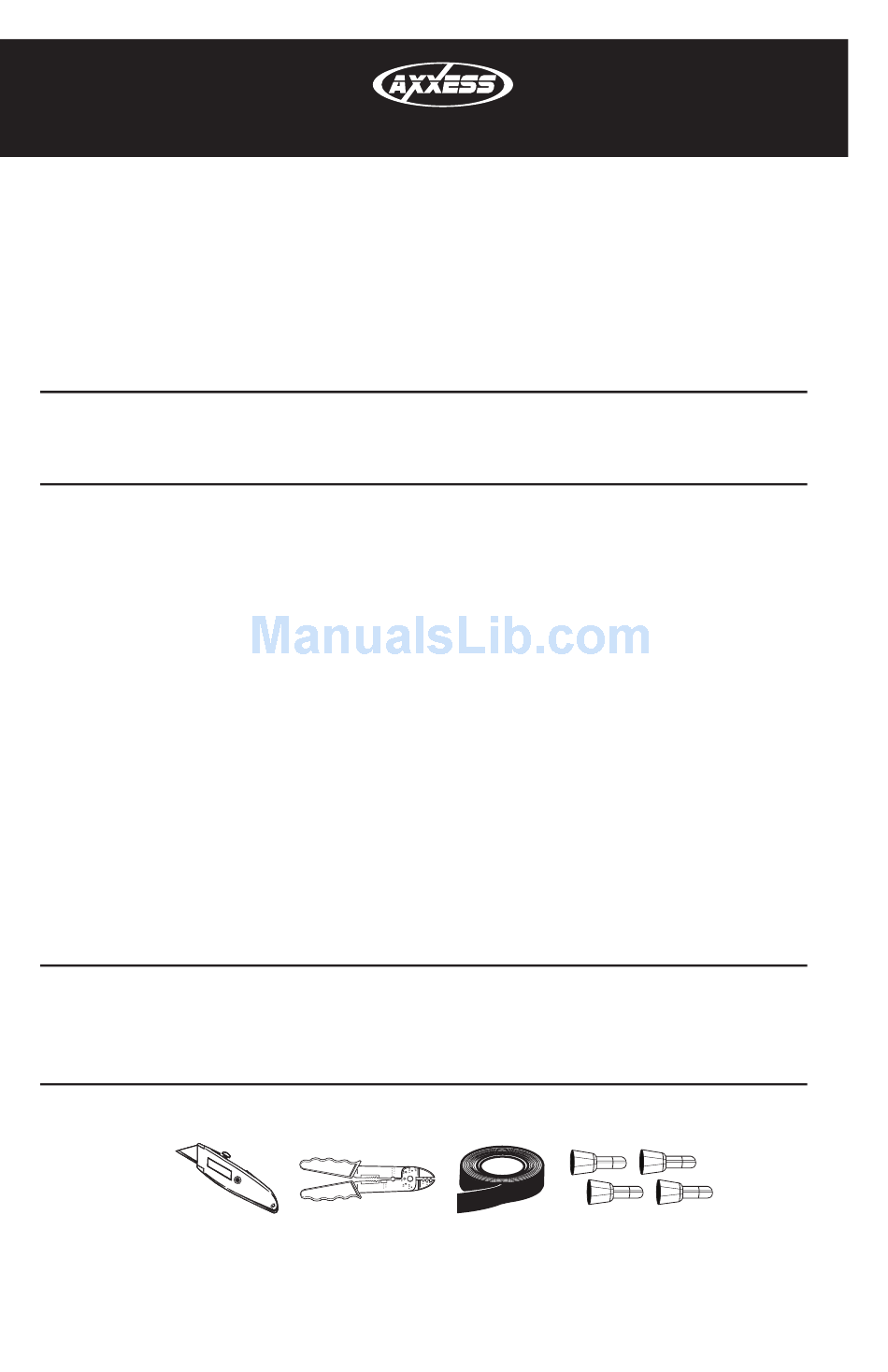

TOOLS REQUIRED
• Cutting tool • Crimping tool • Tape • Connectors (example: butt-connectors, bell caps, etc.)
Advertisement
Table of Contents
Related Manuals for Axxess GMOS-LAN-02
Summary of Contents for Axxess GMOS-LAN-02
- Page 1 • Retains factory back-up camera • Includes antenna adapter INTERFACE COMPONENTS GMOS-LAN-02 interface • 16 pin harness with stripped leads • 18-pin harness to 30 pin GM harness with stripped leads • BACKUPCAM harness • Antenna adapter TOOLS REQUIRED • Cutting tool • Crimping tool • Tape • Connectors (example: butt-connectors, bell caps, etc.)
- Page 2 GMOS-LAN-02 Applications (Note: This interface will also work in vehicles listed below that are not equipped with OnStar) BUICK Enclave 2007-up Acadia 2007-up Lucerne 2006-up Savana 2008-up Sierra (new body) 2007-up CADILLAC Yukon 2007-up Escalade 2007-up 2006-2010 PONTIAC 2007-2009 Torrent...
- Page 3 • Connect the Blue/Pink wire to the VSS or speed sense wire of the aftermarket navigation radio. • Connect the Green/Purple wire to the reverse wire of the aftermarket navigation radio. • Plug the 16 pin harness into the GMOS-LAN-02...
- Page 4 • Connect the Yellow wire to the radio’s 12 volt battery or memory wire. • Connect the Black wire to the radio’s ground wire. • Plug the 14 pin harness into the GMOS-LAN-02 • The Black/Yellow wire is for the OnStar volume adjustment. This will be discussed in the OnStar Level Adjustment section of this instruction.
- Page 5 (if equipped) to adjust the OnStar level. Additional 12 pin harness (ASWC harness) This 12 pin harness is to be used in conjunction with the ASWC (not included). Please refer to ASWC instructions for programming. AXXESS AUDIO ACCESSORIES ELECTRONICS WIRES...
