INSTALLATION INSTRUCTIONS FOR PART GMOS-100i
The GMOS-100i which is USB updatable,is a replacement interface
designed to retain Onstar, retain the warning chimes that are normally
lost when the OEM radio is removed, retain factory installed satellite
radio(XIA-LCD is required and sold separately), and factory steering
wheel controls (if equipped). It also provides a 12 volt accessory output
for proper aftermarket radio operation. The GMOS-100i also provides
a Mute, Parking Brake, VSS or Speed Sense, and a Reverse output
to make installing an aftermarket navigational radio simpler and less
time comsuming.
required to complete installation. Please see below.
CLASS II-100
Buick
Allure 2005-09
Century 2004-05
Lacrosse 2005-09
Rainier 2004-07
Rendezvous 2002-07
Terraza 2005-08
Cadillac
Escalade 2003-06
Escalade Ext 2003-06
Chevrolet
Avalanche 2003-06
Cavalier 2000-05
Colorado 2004-09
Corvette 2005-10
Express 2003-07
Impala 2000-05
1-800-221-0932
© COPYRIGHT 2004-2010 METRA ELECTRONICS CORPORATION
GMOS-100i
*Read Important Warning On Page 1
Before Attempting Any Installation*
One of three additional harnesses is
APPLICATIONS
Malibu 2000-03
Malibu Classic 2004
Monte Carlo 2000-05
Silverado 2003-06
Silverado Classic 2007
Ssr 2003-06
Suburban 2003-06
Tahoe 2003-06
Trailblazer 2002-09
Uplander 2005-08
Venture 2000-05
GMC
Canyon 2004-09
Envoy 2002-09
Savana 2003-09
Sierra 2003-06
Sierra Classic 2007
Yukon/Xl/Denali 2003-06
Hummer
H2 2003-07
H3 2006-09
Isuzu
Ascender 2003-08
I Series 2006-08
Oldsmobile
Alero 2001-04
Bravada 2002-04
Intrigue 2002
Silhouette 2000-04
Pontiac
Aztec 2001-05
Grand Am 2001-05
Grand Prix 2004-08
Montana 2000-2005
Sunfi re 2000-05
Saab
9-7x 2005-09
Saturn
Relay 2005-09
GMLAN11-100
Chevrolet
Cobalt 2007-11
HHR 2006-11
Malibu 2008-11
Pontiac
G5 2007-08
G6 2009
Solstice 2006-09
Saturn
Aura 2006-09
Sky 2006-09
GMLAN29-100
Buick
Enclave 2007-11
Lucerne 2006-11
Cadillac
Escalade 2007-11
DTS 2006-2011
SRX 2007-09
Chevrolet
Avalanche 2007-11
axxessinterface.com
Equinox 2007-10
Express 2008-11
Impala 2006-2011
Monte Carlo 2006-07
Silverado (New Body)
2007-11
Suburban 2007-11
Tahoe 2007-11
Traverse 2009-11
GMC
Acadia 2007-11
Savanna 2008-11
Sierra (New Body)
2007-11
Yukon 2007-11
Hummer
H2 2008-09
Pontiac
Torrent 2007-09
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Axxess GMOS-100i
Summary of Contents for Axxess GMOS-100i

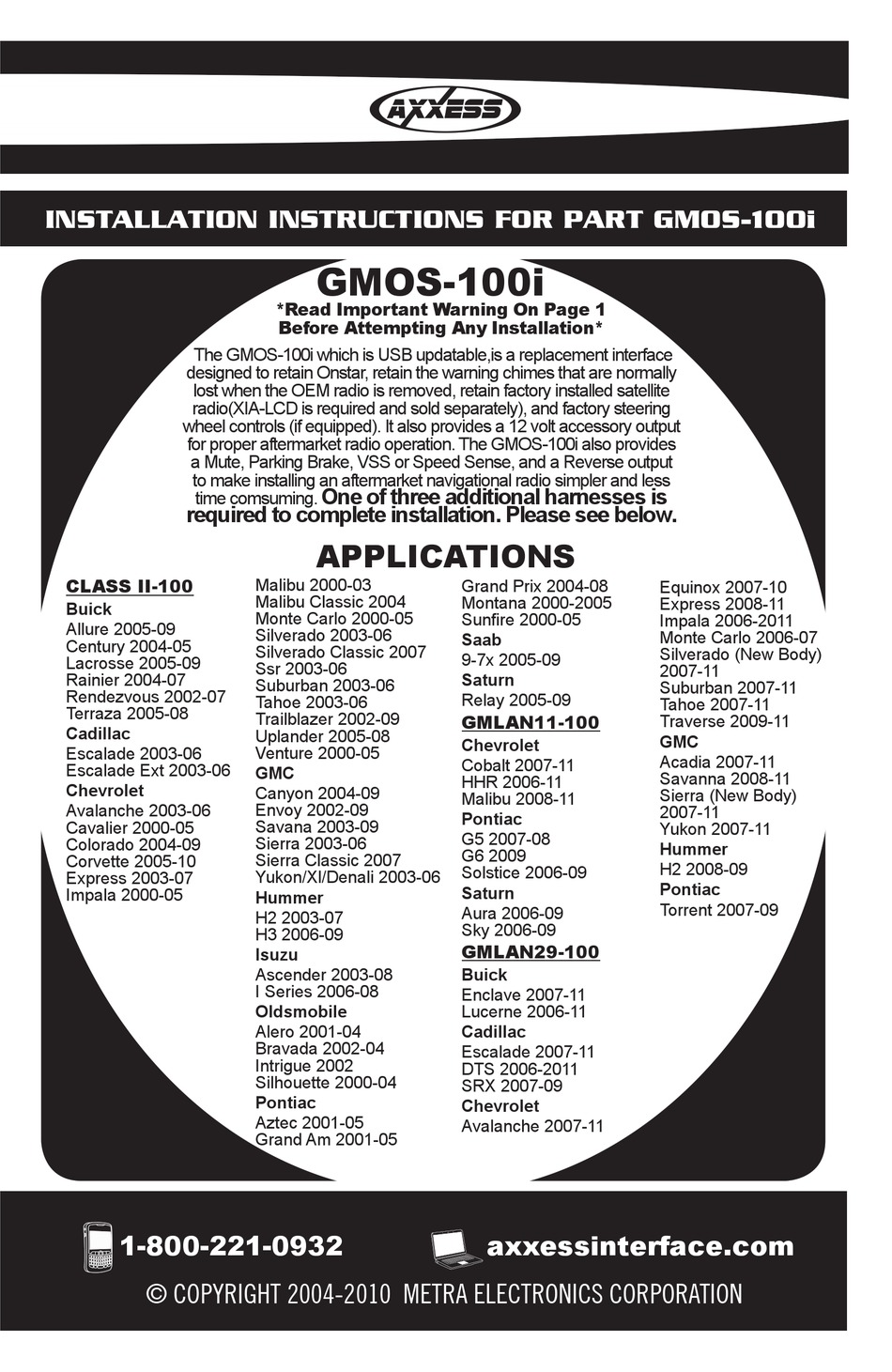

- Page 1 *Read Important Warning On Page 1 Before Attempting Any Installation* The GMOS-100i which is USB updatable,is a replacement interface designed to retain Onstar, retain the warning chimes that are normally lost when the OEM radio is removed, retain factory installed satellite radio(XIA-LCD is required and sold separately), and factory steering wheel controls (if equipped).
- Page 2 INTERFACE COMPONENTS •A) GMOS-100i Interface •B) 20 pin harness with stripped leads TOOLS REQUIRED FOR INSTALLATION •Cutting Tool •Tape •Crimping Tool •Connectors (I.E. butt-connectors, bell caps, ECT…)
- Page 3 TABLE OF CONTENTS GMOS-100i Installing The Interface .............. 1 Testing The GMOS-100i ............. 3 NOWLEDGE IS OWER Enhance your installation and fabrication skills by enrolling in the most recognized and respected mobile electronics school in our industry. Log onto www.installerinstitute.com or call 800-354-6782 for more information and take steps toward a better tomorrow.
- Page 4 *Important: Before beginning any of the following, disconnect the negative battery terminal to prevent an accidental short circuit. INSTALLING THE INTERFACE From the 20 pin harness: • Connect the Red wire to the ignition/accessory wire of the aftermarket radio. • Connect the Orange/White wire to the illumination wire of the aftermarket radio.
- Page 5 Chime/Turn signal Volume Adjustment To adjust the chime volume, use a small screwdriver to rotate the potentiometer, located on the 8 pin harness side of the interface (closest to 8 pin harness). Turn clockwise to make the chime/turn signal louder and counterclockwise to make the chime/turn signal softer.
- Page 6 Connect one terminal from the switch to ground and the other terminal to the Black/Yellow wire. The volume will change one level every time the switch is pressed. TESTING THE GMOS-100i Turn the ignition on, and then turn the aftermarket radio on.
- Page 7 NOTES...
