DEMO MANUAL DC2641A
EXTV BIAS SUPPLY
CC
20MHz BW
V
OUT
100mV/DIV
50µs/DIV
DC2641 F04

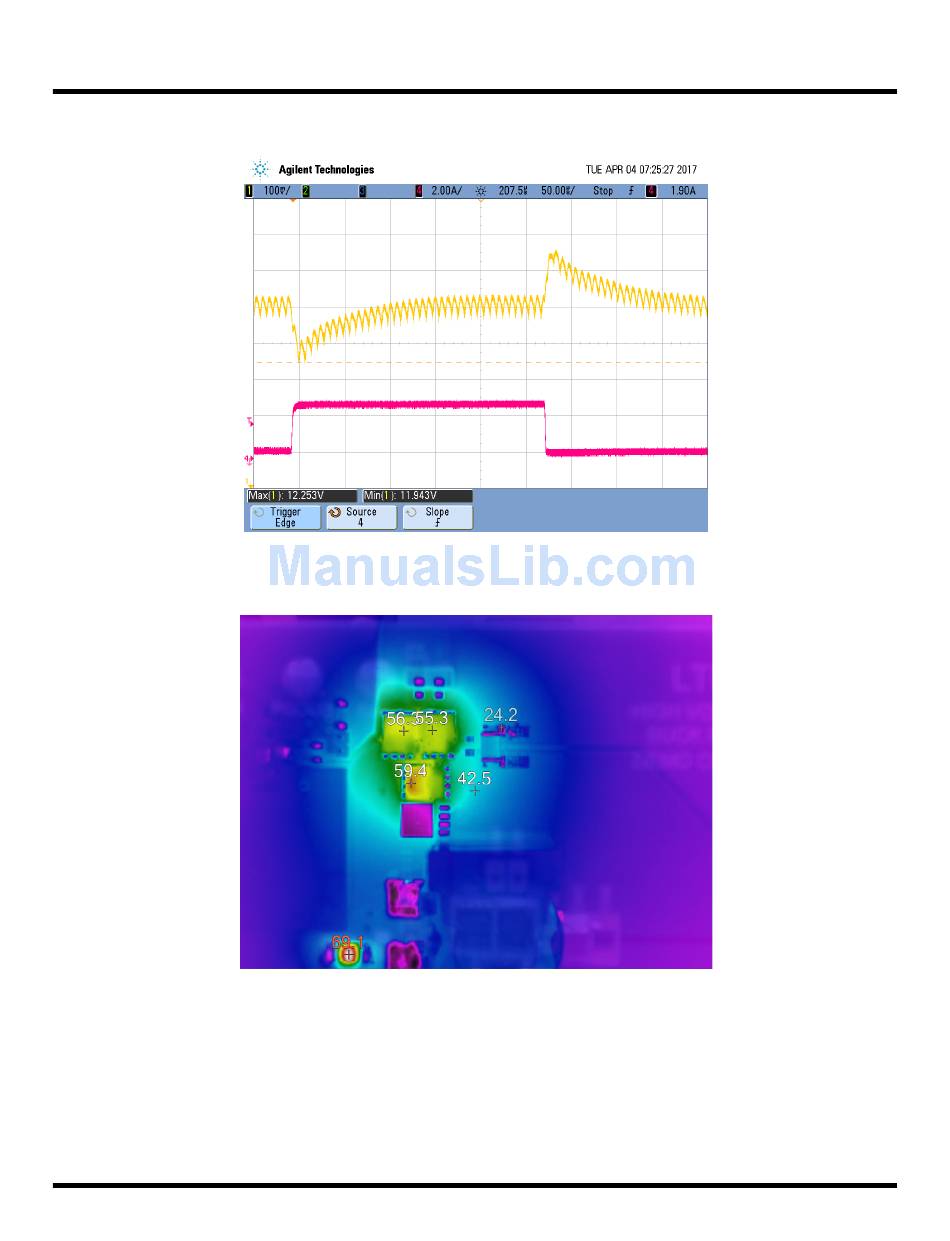

Figure 4. DC2641A V 0~2.5A Load Transient at V = 48V
OUT IN
Figure 5. Thermal Image V 48V, V 12V at 10A No Air Flow, T = 25°C
IN O A
