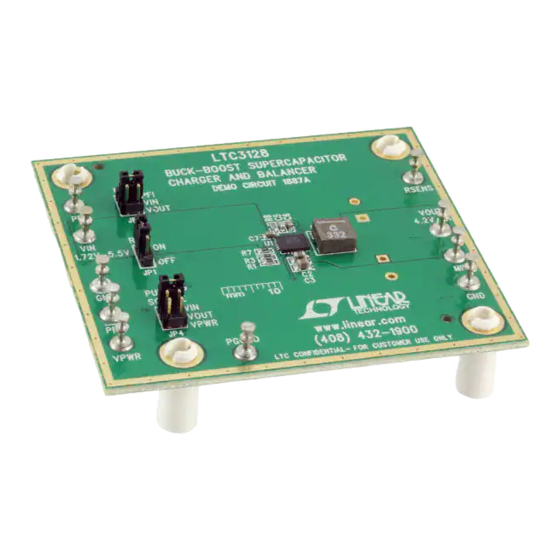

Demonstration circuit 1887 is a DC/DC supercapacitor
buck-boost charger and balancer converter featuring the
LTC
3128. The DC1887A operates over 1.72V to 5.5V input
®
and charges the output up to 5.5V. Also, the LTC3128 has
2% precision input current limit, which allows the circuit to
operate effectively with current limited input power sources
like the USB. The 1.2MHz switching frequency operation
results in a small and efficient circuit. The converter pro-
vides high output voltage accuracy (typically ±2%) over
a 1.72V to 5.5V input. The demonstration circuit can be
easily modified to generate different output voltages.
performance summary
PARAMETER
Minimum Input Voltage
Maximum Input Voltage
V
OUT
Input Current Limit (Programmable to 3A)
Nominal Switching Frequency
Arrow.com.
Downloaded from

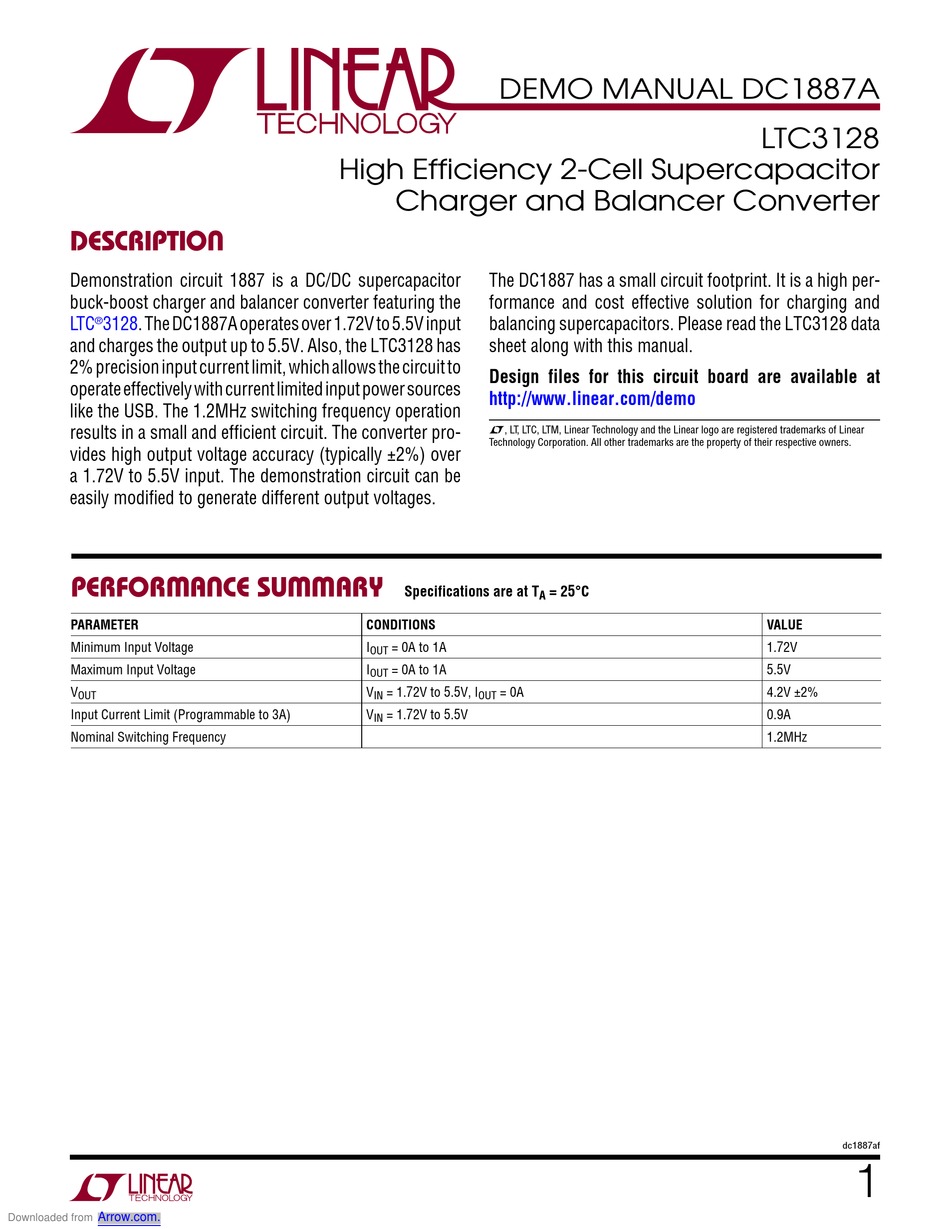

DEMO MANUAL DC1887A
High Efficiency 2-Cell Supercapacitor
Charger and Balancer Converter
The DC1887 has a small circuit footprint. It is a high per-
formance and cost effective solution for charging and
balancing supercapacitors. Please read the LTC3128 data
sheet along with this manual.
Design files for this circuit board are available at
http://www.linear.com/demo
L, LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks of Linear
Technology Corporation. All other trademarks are the property of their respective owners.
Specifications are at T
CONDITIONS
I
= 0A to 1A
OUT
I
= 0A to 1A
OUT
V
= 1.72V to 5.5V, I
= 0A
IN
OUT
V
= 1.72V to 5.5V
IN
= 25°C
A
LTC3128
VALUE
1.72V
5.5V
4.2V ±2%
0.9A
1.2MHz
dc1887af
1
