ASAHI KASEI
AKD4584 is an evaluation board for the 24bit 96kHz CODEC, AK4584. The AKD4584 can evaluate A/D
converter D/A converter separately in addition to loop back mode (A/D → D/A). The AKD4584 also has
the digital audio interface and can achieve the interface with digital audio systems via opt-connector.
Ordering guide
AKD4584
---
• DIT/DIR with optical input/output
• BNC connector for an external clock input
• 10pin Header for serial control mode
LIN
RIN
LOUT
ROUT
Opt In
BNC In
Opt out
BNC out
* Circuit diagram and PCB layout are attached at the end of this manual.
<KM065802>
GENERAL DESCRIPTION
Evaluation board for AK4584
(Cable for connecting with printer port of IBM-AT,
compatible PC and control software are packed with this.)
FUNCTION
2.7 ~ 5.25V 4.75 ~ 5.25V GND
AK4584

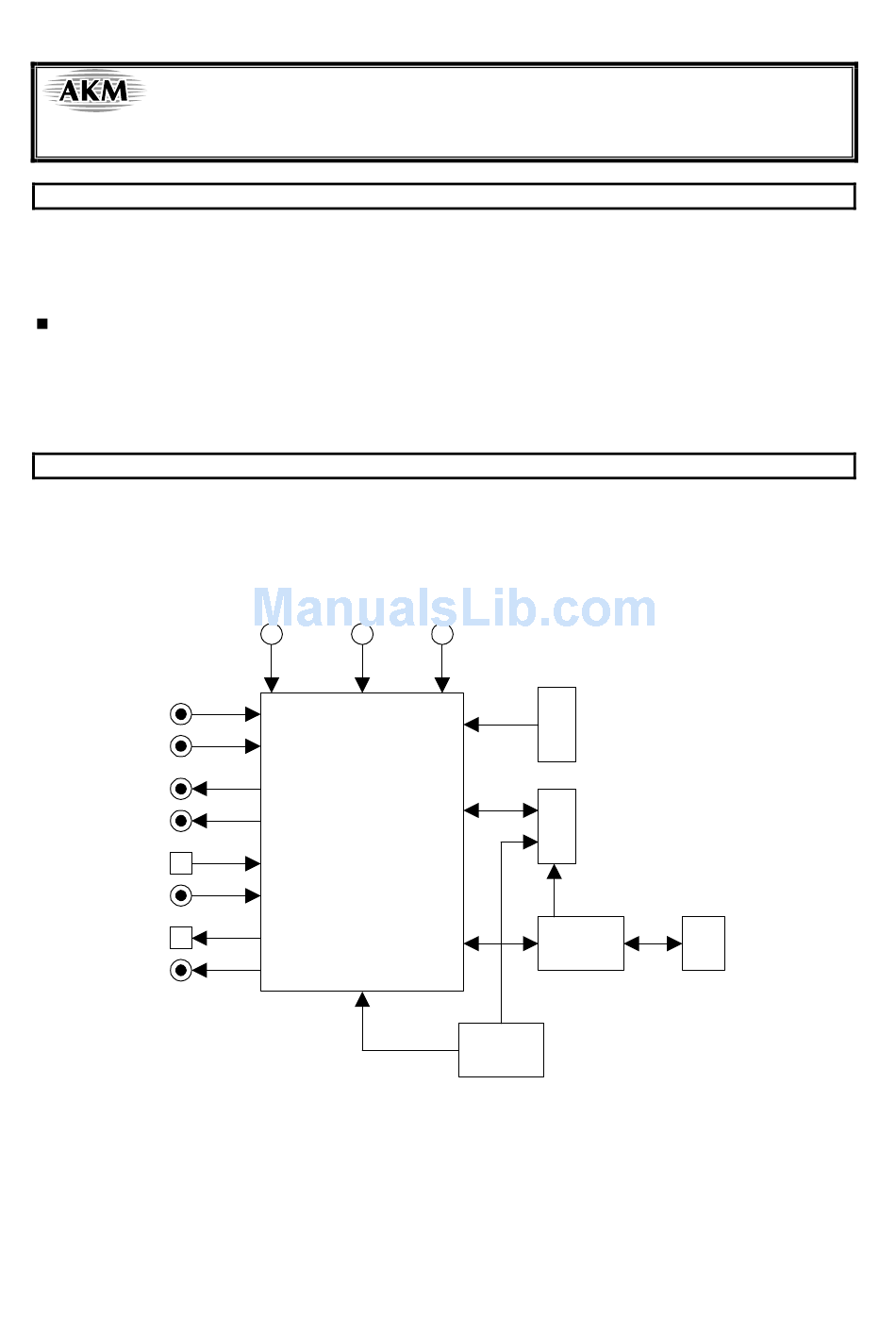

Figure 1. AKD4584 Block Diagram
AK4584 Evaluation Board Rev.A
Control Data
10pin Header
ROM
10pin Header
AK4114
Clock
Gen
- 1 -
[AKD4584]
AKD4584
Opt In
Opt Out
2009/06
