Envirovent energiSava 200 Installation Manual page 8

Installation Instructions
SECOND FIX - Installing the unit

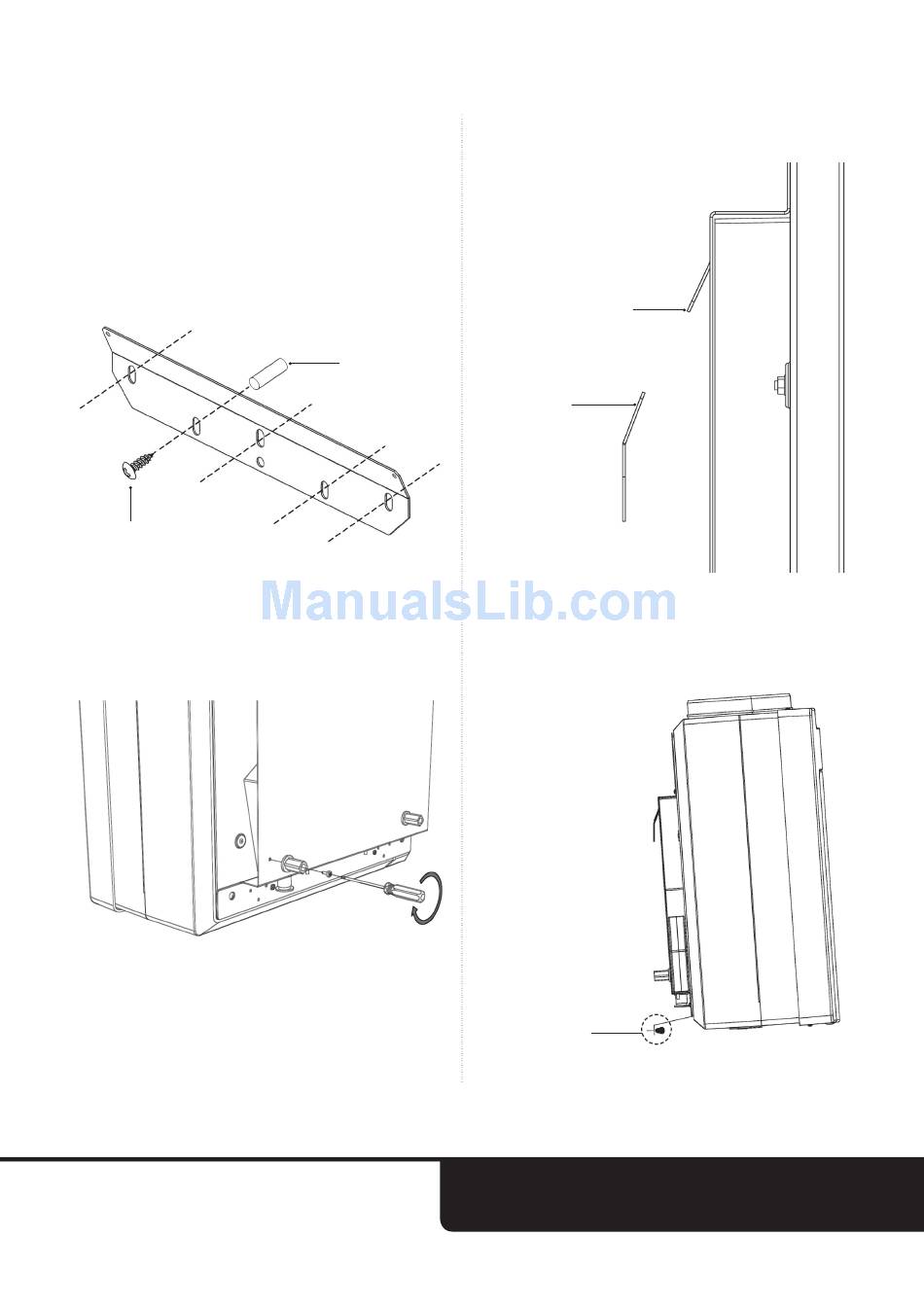

1. Attach the wall bracket to a flat stable
surface that is capable of bearing the
unit's weight, 14Kg. Ensure that bracket is
positioned so that there is enough space
for the condensate drain and ducts to be
connected. Fixing kit provided.
Screws x 5
2. Attach spacers x 2 with screws provided.
The spacers ensure that the unit tilts to
improve drainage.
7
energiSava® 200
3. Slide the unit onto the wall bracket and
attach ducting and drain.
Pre-fixed bracket
on the back of the
energiSava® 200 unit
Plugs x 5
Wall bracket
4. Tie down cable required for wall fit only.
Allow some slack in the tie down cable
when fitting.
Wall fit only
SHOULD YOU ENCOUNTER ANY PROBLEMS
INSTALLING THIS UNIT, CALL US ON:
0345 27 27 810
