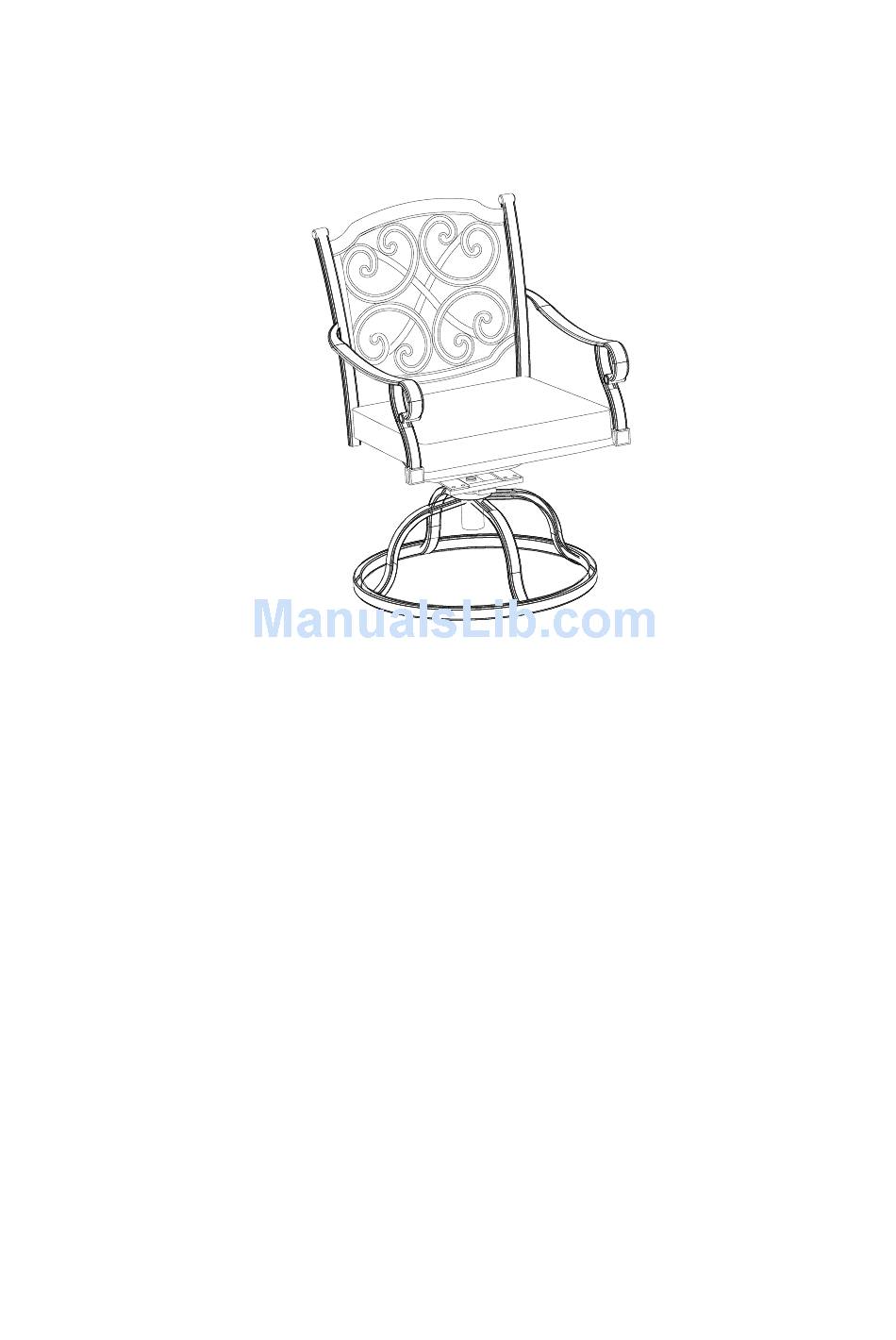

BELIZE DINING SWIVEL ROCKER CHAIR
ASSEMBLY INSTRUCTION
Item# L-DN1196SAL-RC
CAUTION:
Chair is for setting purpose only. Standing on or misuse of bench may result in
damage or injury. Not intended for commercial use. WEIGHT LIMIT
225 LBS (100
KG).
WARNING:
_ Keep all children and pets away from assembly area. Children and pets should be
supervised when they are in the area of the Chair construction.
_ Keep assembly area at least 6 feet from any obstruction such as a fence, garage, house,
overhanging branches, laundry line or electrical wires.
_ Some parts may contain sharp edges. When assembling and using this product, basic
safety precautions should always be followed to reduce the risk of personal injury and
damage to the product. Please read all instructions before assembly and use.
_ Check all bolts for tightness before use. IMPORTANT - check and tighten bolts often to
keep them secure!
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Sunjoy L-DN1196SAL-RC
Summary of Contents for Sunjoy L-DN1196SAL-RC
- Page 1 BELIZE DINING SWIVEL ROCKER CHAIR ASSEMBLY INSTRUCTION Item# L-DN1196SAL-RC CAUTION: Chair is for setting purpose only. Standing on or misuse of bench may result in damage or injury. Not intended for commercial use. WEIGHT LIMIT 225 LBS (100 KG). WARNING: _ Keep all children and pets away from assembly area.
- Page 2 Part List QUANTITY IMAGE Part DESCRIPTION Chair Supporter Base Seat cushion Bolt M8*40 Bolt M8*35 ( Pre-assembled ) Spring washer M8 (Pre-assembled 4 pcs) Flat washer M8 (Pre-assembled 4 pcs) Nut M8 (Pre-assembled 4 pcs) Big washer (Pre-assembled 2 pcs) Spring plate (Pre-assembled）...
- Page 3 Step 1：Connect supporter (B) and chair (A) by bolt (AA), big washer (FF), spring plate (GG), big washer (FF), flat washer (DD), spring washer (CC), and nut (EE). Fully tighten by wrench (HH). Insert the supporter (B) into base (C). Step 2: Attach seat cushion (D) to the chair (A) by hook-and-loop fasteners.
- Page 4 Occasionally, check nuts and bolts, re-tighten if necessary. CUSTOMER SERVICE Sunjoy Group warrants to the original purchaser that this item is free from defects in workmanship and materials of your item provided the item was factory-sealed at the time of purchase and is maintained with care and used only for personal, residential purposes.
