Some parts may contain sharp edges. When assembling and using this product, basic safety precautions should
always be followed to reduce the risk of personal injury and damage to the product. Please read all instructions
before assembly and use.
Check all bolts for tightness before use, and periodically check and tighten bolts as necessary.
Important:
For technical assistance on assembly, please call Sunjoy Industries at 1(866) 578-6569 anytime 24 hours /
7 days a week, or
email to
Production Number: XXXXXXXX

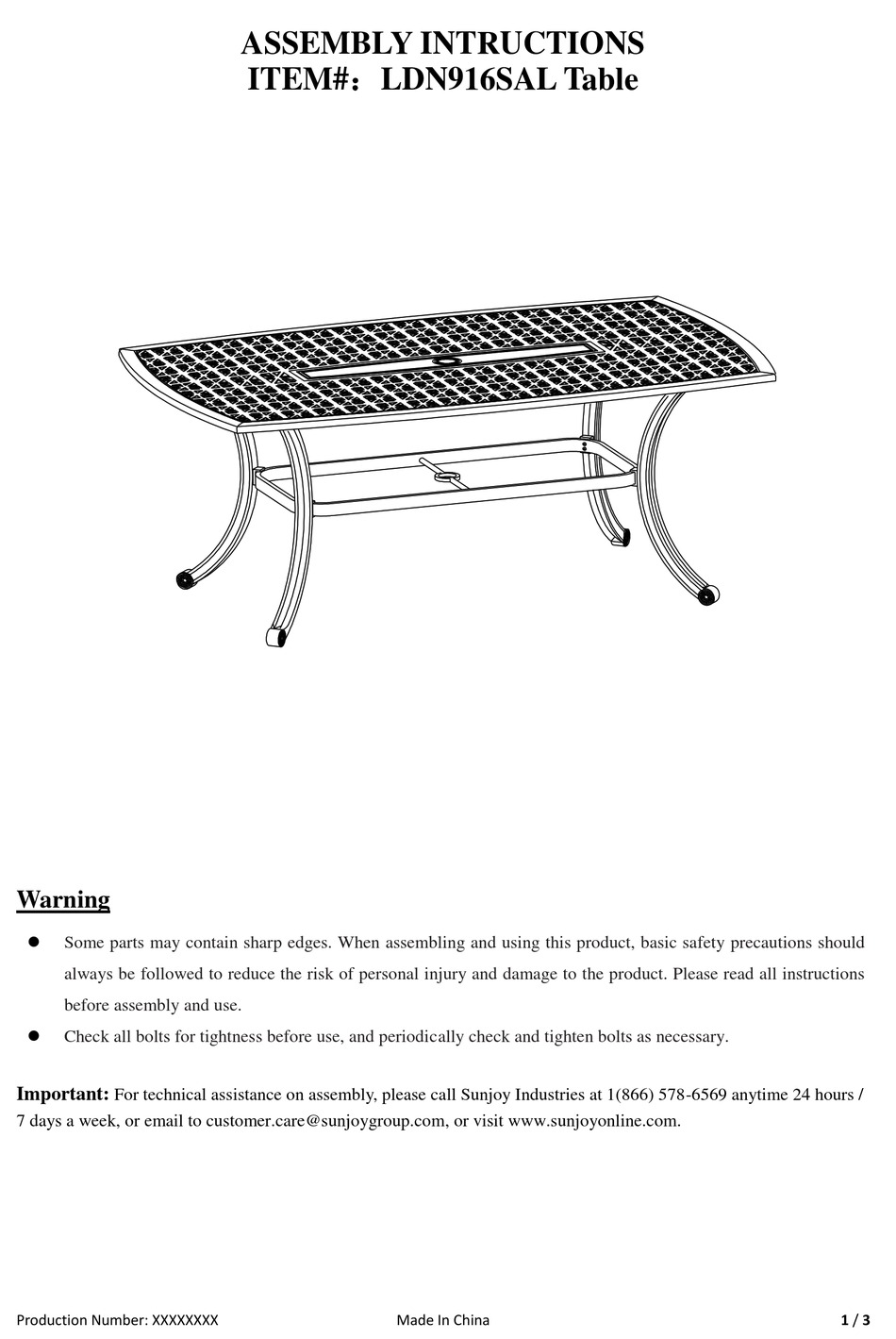

ASSEMBLY INTRUCTIONS
ITEM#：LDN916SAL Table
customer.care@sunjoygroup.com,
or visit
www.sunjoyonline.com.
Made In China
1 / 3
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Sunjoy LDN916SAL
Summary of Contents for Sunjoy LDN916SAL
- Page 1 Check all bolts for tightness before use, and periodically check and tighten bolts as necessary. Important: For technical assistance on assembly, please call Sunjoy Industries at 1(866) 578-6569 anytime 24 hours / 7 days a week, or email to customer.care@sunjoygroup.com,...
- Page 2 PARTS LIST Label Part Number Description P31326A06107 Table top P31433A06107 Table leg P31519A06107 Connection ring HARDWARE PACK Label Part Number Description Image of Part H04030C11 Bolt M6x30 H04020C11 Bolt M6x20 H12001C11 Flat washer M6 H13001C11 Spring washer M6 P91001A07001 Food pad (preasssembled) P30310A06107 Umbrella hole cap H00002C12...
- Page 3 Step 2: Insert Bolt (H2) with Flat washer (H3) and Spring washer (H4) through Leg (B) connection hole, screw into Table top (A) using Allen key (H7). Once bolts are started on each corner of the table, fully tighten all top connection bolts. When finished, go back and tighten all bolts started in step 1.
- Page 4 Check all bolts for tightness before use, and periodically check and tighten bolts as necessary. Important: For technical assistance on assembly, please call Sunjoy Industries at 1(866) 578-6569 anytime 24 hours / 7 days a week, or email to customer.care@sunjoygroup.com,...
- Page 5 PARTS LIST Label Part Number Description Chair frame P31108A06107 T-support P30406A01107 Chair base P31211A06107 Cushion P00414A02119 HARDWARE PACK Label Part Number Description Image of Part H01040C11 Bolt M8x40 P31601A01100 Square iron piece H12001D11 Flat washer M8 (4 preassembled) H13001D11 Spring washer M8 (4 preassembled) H14001D11 Nut M8 (preassembled) H01035C11...
- Page 6 Step 2: Step 3: Insert the assembled parts in step1 into Chair base (C). Put Cushion (D) onto Chair frame (A), fasten the hook and loop. Care & Maintenance: Before using, clean the product completely with a soft dry towel. ...
