ASSEMBLY INSTRUCTION
ITEM#:L-DN2235SST-B-C
We have you in mind,let us help you!
*
*
Contact US FIRST
24 / 7
1-(866)-578-6569
Toll
Free
www.sunjoyonline.com
24 / 7
?Support
Live Chat
24 / 7
customer.care@sunjoygroup.com
Production Number: xxxxxxxx
Country of Origin: China

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the L-DN2235SST-B-C and is the answer not in the manual?

Questions and answers

Darin Barnes
May 14, 2025

Changing the orifice to natural gas

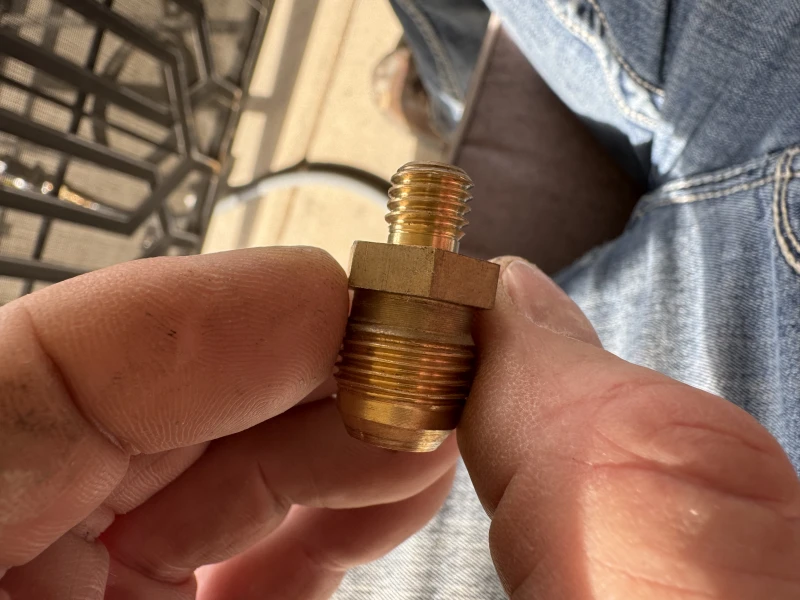

User image 68252cd4ad034

Summary of Contents for Sunjoy L-DN2235SST-B-C

  • Page 1 ASSEMBLY INSTRUCTION ITEM#:L-DN2235SST-B-C We have you in mind,let us help you! Contact US FIRST 24 / 7 1-(866)-578-6569 Toll Free www.sunjoyonline.com 24 / 7 ?Support Live Chat 24 / 7 customer.care@sunjoygroup.com Production Number: xxxxxxxx Country of Origin: China...
  • Page 2 2 / 10 Safety Information  One people are required for this assembly. WARING:  Some parts may contain sharp edges. Wear Keep all children and pets away from assembly area. protective gloves. Children and pets should be supervised when they are ...
  • Page 3 3 / 10 EXPLODED DRAWING Country of Origin: China Call 1-(866)-578-6569 for assistance. Or visit us at www.sunjoyonline.com...
  • Page 4 4 / 10 Parts List Label Part Number Description Part Image P30125A01180 Back P30227A01180 Seat P30046A01180 Handrail (Right) 4 P30047A01180 Handrail(Left) P31214A01180 Chair Base P00415H14122 Cushion P00501H12122 Back Cushion Foot pad P91008C07001 Pre-assembled Foot pad P91009C07001 Pre-assembled Plastic plug P12504E07001 Pre-assembled Country of Origin: China Call 1-(866)-578-6569 for assistance.
  • Page 5 5 / 10 Hardware Pack Label Part Number Description Part Image H06020C11 Bolt M6*20 H01040C11 Bolt M8*40 P31601A01100 Big washer H22001D11 Nut M8 Spring H13001D11 Washer M8 Flat washer H12001D11 Allen Key H00002C12 Size 4 Wrench M8 H00001D12 Country of Origin: China Call 1-(866)-578-6569 for assistance.
  • Page 6 6 / 10 Country of Origin: China Call 1-(866)-578-6569 for assistance. Or visit us at www.sunjoyonline.com...
  • Page 7 7 / 10 Country of Origin: China Call 1-(866)-578-6569 for assistance. Or visit us at www.sunjoyonline.com...
  • Page 8 8 / 10 Country of Origin: China Call 1-(866)-578-6569 for assistance. Or visit us at www.sunjoyonline.com...
  • Page 9 9 / 10 Country of Origin: China Call 1-(866)-578-6569 for assistance. Or visit us at www.sunjoyonline.com...
  • Page 10 Limited Manufacturer’s Warranty SUNJOY Group warrants to the original purchaser that this item is free from defects in workmanship and materials for a period of 1 year from the date of purchase, provided the item was factory-sealed at the time of purchase and is maintained with care and used only for personal, residential purposes.
  • Page 11 HD PROVENCE 5PC GAS FIRE PIT TABLE Assembly Instruction Item# L-DN2235SST-B-T WARNING: For Outdoor Use Only. INSTALLER: Leave this manual with the Installation and service must be performed by a appliance. qualified installer, service agency, or the gas CONSUMER: Retain this manual for future supplier.
  • Page 12: Table Of Contents

    Keep this manual to consumer for installer and consumer future reference/use. We would like to hear from you with any comments or suggestions. In the continental U.S., you can call Sunjoy Toll Free number: 1-866-578-6569 at any time. You can also send us an email to customer.care@sunjoygroup.com...
  • Page 13: Specification

    SPECIFICATION HD PROVENCE 5PC GAS FIRE PIT TABLE Product name Model NO. L-DN2235SST-B-T Rated Heat Output 26,000BTU/HR Fuel Propane-LP Gas Supply 20 lb. LP-Gas cylinder Manifold Pressure 11 Inches W.C. Orifice Size (diameter) 1.57mm Gas Supply Pressure Max.250 PSI Min.25 PSI IMPROTANT SAFETY INFORMATION AND PRECAUTION ...
  • Page 14  The pressure regulator and hose assembly provided with the appliance must be used. The replacement part must be the same as the part specified by manufacturer.  The assembly of LP-gas and leak checking please refer to the “Gas connection” on page “leak Test”...
  • Page 15: Expanded View

    EXPANDED VIEW 5 of 19...
  • Page 16: Parts List

    Parts List Label Part Number Description Part Image P20722A01180 P31341A01180 Table top P22008A01178 Fire bowl P22328A01180 Leg1 P22329A01180 Leg2 P21233A01180 Back panel P21150A01180 Side panel1 P20813A01180 Tank holder P99903D01002 Lava rock 6 of 19...
  • Page 17 P21151A01180 Side panel2 P20927A01180 Panel P22330A01180 Leg1 P22331A01180 Leg2 P23401A01002 Chain Hardware Pack Label Part Number Description Part Image Bolt M6*15 H02015C11 Bolt M6*10 H02010C11 Bolt M6*15 H09015C11 Bolt M6*30 H02030C11 Flat washer H19001C11 Wrench M6 H00001C12 If you want to replace the parts listed, please contact Customer Service Center: 1(866) 578-6569. 7 of 19...
  • Page 18: Installation

    INSTALLATION 8 of 19...
  • Page 19 9 of 19...
  • Page 20 10 of 19...
  • Page 21 11 of 19...
  • Page 22 12 of 19...
  • Page 23 13 of 19...
  • Page 24 14 of 19...
  • Page 25 15 of 19...
  • Page 26: Location

    LOCATION Your Gas appliance must be installed on a flat, stable surface, away from any combustible materials or construction. SET-UP Your Gas appliance comes assembled, ready for a Gas connection. 1- Remove the appliance from container box and place it on any level, outdoor, non-combustible surface.
  • Page 27: Operation

    Fig 7 Fig.7 Fig 8 OPERATION: LEAK TEST !!!WARNING!!!  Do not use an open flame to check for leaks.  Do not smoke during testing.  Do not test indoors.  A leak check must be performed whenever the gas cylinder is replaced. 1.
  • Page 28: Storage And Maintenance

    While in use, the burner flame should be mainly blue in appearance with a small amount of yellow. NOTE: The flame can be identified by the following figure. Warning: Lighting the Fire Pit improperly could lead to an unsafe condition. 7.
  • Page 29: Trouble Shooting

    Clogged or dirty burner Clean burner ports ports If you want to replace the parts listed, please contact SUNJOY Customer Service Center (1(866) 578-6569). LIMITED WARRANTY: Subject to the conditions set out below, this product is warranted to the original purchaser to be free from...
