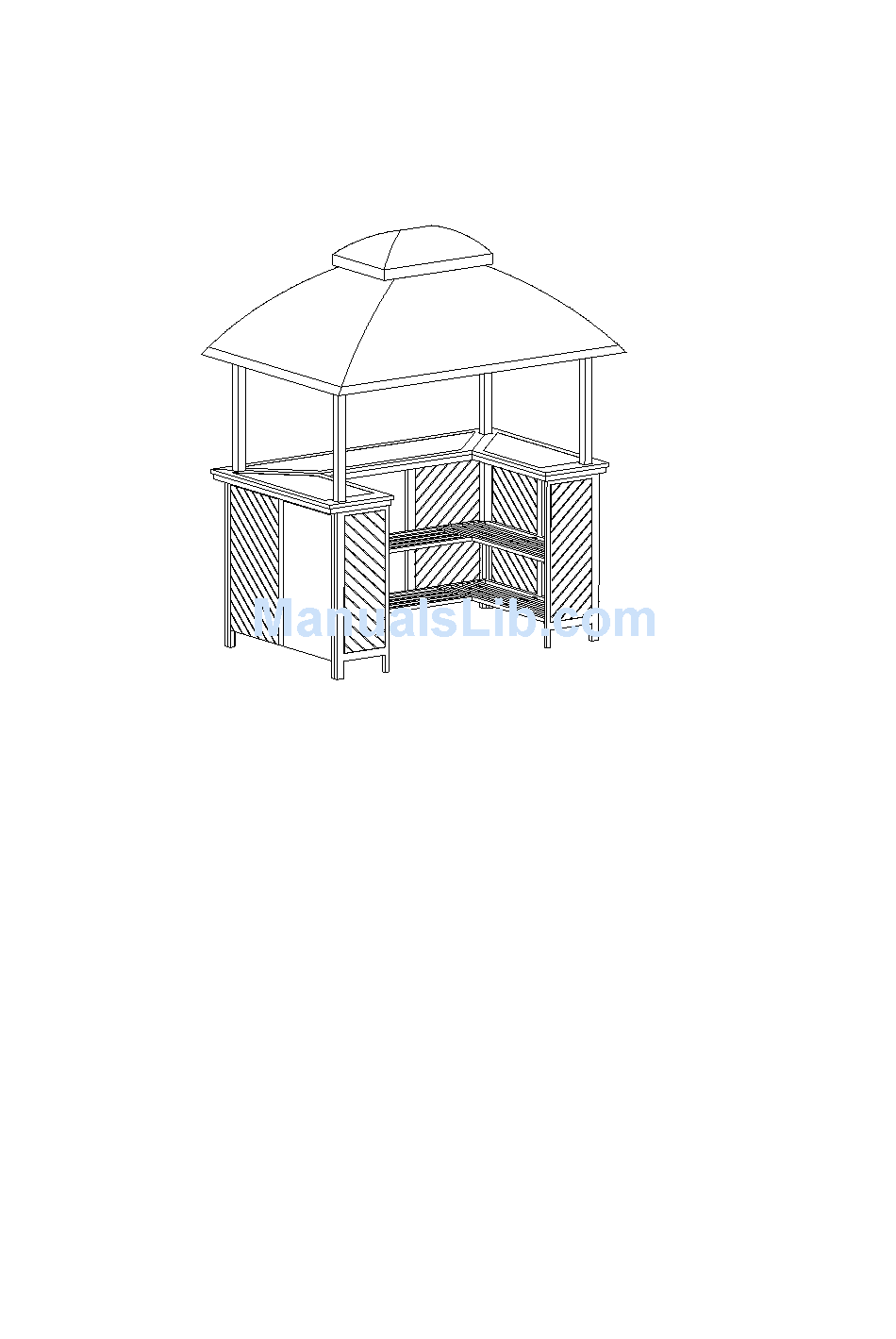

South Beach Bar Instruction Manual
Item#: L-DN1414SST-T
SKU #: 810213850
WARNING:
_ Keep all children and pets away from assembly area. Children and pets should be
supervised when they are in the area of the bar construction.
_ Keep assembly area at least 6 feet from any obstruction such as a fence, garage,
house, overhanging branches, laundry line or electrical wires.
_ Some parts may contain sharp edges. When assembling and using this product, basic
safety precautions should always be followed to reduce the risk of personal injury and
damage to the product. Please read all instructions before assembly and use.
_ Check all bolts for tightness before use. IMPORTANT - check and tighten bolts often to
keep them secure!
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Sunjoy 810213850
Summary of Contents for Sunjoy 810213850
- Page 1 South Beach Bar Instruction Manual Item#: L-DN1414SST-T SKU #: 810213850 WARNING: _ Keep all children and pets away from assembly area. Children and pets should be supervised when they are in the area of the bar construction. _ Keep assembly area at least 6 feet from any obstruction such as a fence, garage, house, overhanging branches, laundry line or electrical wires.
-
Page 2: Parts List
Parts list Part# Description Part# Description Right shelf Small top Front shelf horizontal tube Left shelf Small top arch Left small board tube Left board Big top Fastener Big top arch tube Horizontal tube Small canopy Table top Big canopy Wine glass shelf Plastic button Post... - Page 4 Do not lock all bolts tightly, must lock tightly after the whole bar finish assemble. Fig.1：Connect one side of right board (J) with bottom side of front board (I ) by bolt (AA) and flat washer (FF). Use the same way to attach left board (P) and front board (I) to bottom side of left/right small board (O/K).
- Page 5 Fig.4: Put table top (F) on connected frame, then lock table top (F) by connection slice with bolt (AA) and flat washer (FF).
- Page 6 Fig.5-1：Put plastic button (T) into hole of table top (F), then insert post (H) into table top (F) as Fig. 5-1 shows. Fig.5-2：Connect post (H) with front board (I) and right board (J) by bolt (AA) , flat washer (FF) and fastener (Q). Use the same way to connect other posts (H). Fig.6: Connect horizontal tube (E) with post (H) by bolt (EE) and flat washer (FF).
- Page 7 Fig.8: Insert one side of small top arch tube (B) into small top horizontal tube (A), until spring hook of small top arch tube (B) into hole of small top horizontal tube (A). Fig.9: Insert one side of small top arch tube (B) into big top (C), until spring hook of small top arch tube (B) into hole of big top (C).
- Page 8 Fig11: Put assembled top frame on bottom frame. Insert big top arch tube (D) into top side of post (H) by bolt (BB), flat washer (FF) and nut (GG). Lock all bolts tightly.
-
Page 9: Customer Service
CUSTOMER SERVICE Sunjoy Industries warrants to the original purchaser that this item is free from defects in workmanship and materials of your item provided the item was factory-sealed at the time of purchase and is maintained with care and used only for personal, residential purposes.
