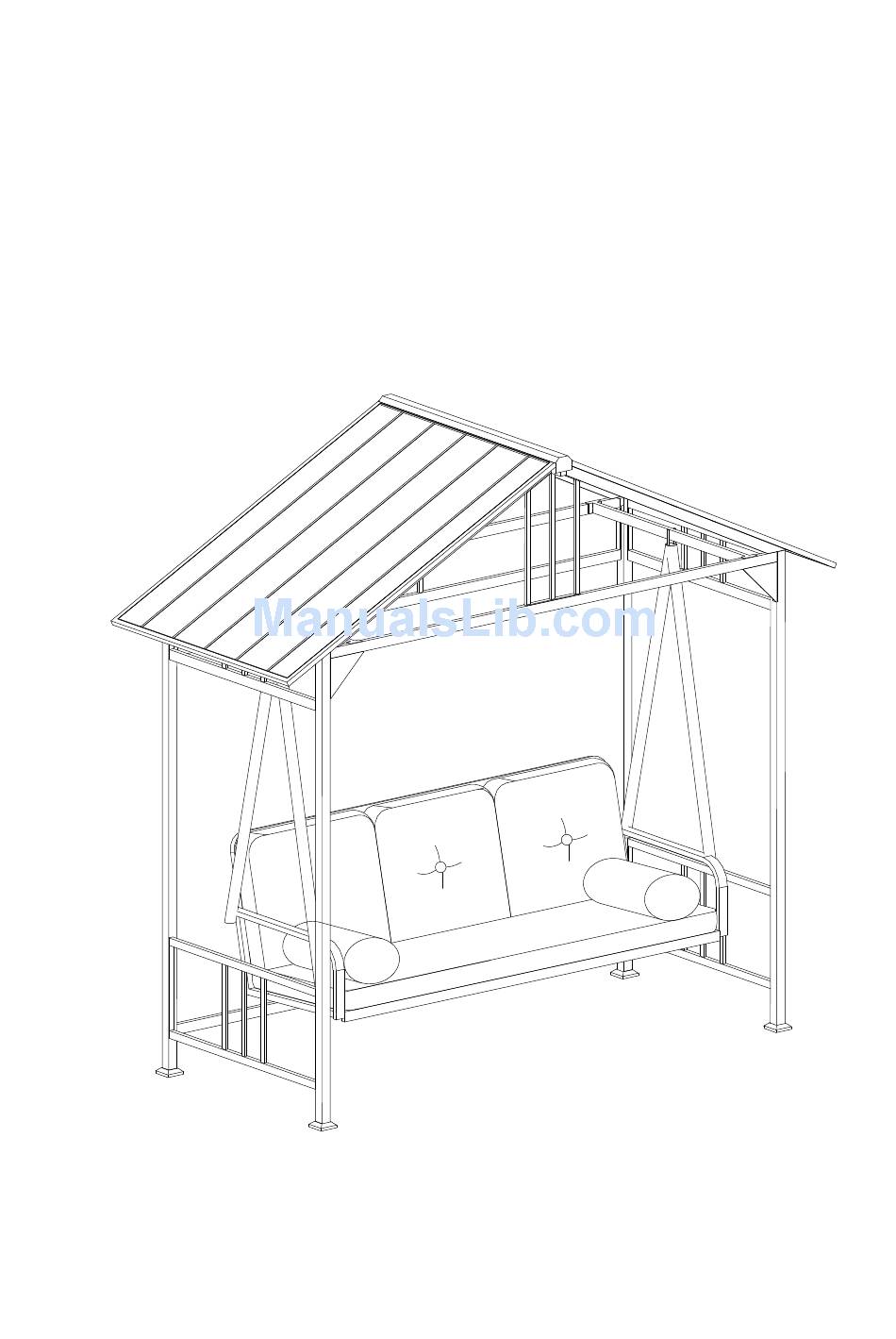

Northwood Hard Top Swing
Assembly Instruction
Item# L-DNC475PST

Advertisement

loading
Need help?

Need help?

Do you have a question about the L-DNC475PST and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sunjoy L-DNC475PST

  • Page 1 Northwood Hard Top Swing Assembly Instruction Item# L-DNC475PST...
  • Page 2 IMPORTANT: Please read and follow all safety statements, warnings, assembly instructions, use & care directions before attempting to assemble. WARNING: 1. When installing and assembling your swing, it is recommended that 2 or more adults are involved. 2. This product is intended for outdoor use only and should be placed on flat, horizontal ground.
  • Page 3 Part List Description Description Armrest 1 Cover board Armrest 2 Top horizontal tube Back board Top board Seating board hook Hanging bar 1 Central support part Hanging bar 2 Back horizontal beam 1 Back horizontal tube Sidehorizontal beam Side panel Front beam Stake cover Hanging bar connect...
  • Page 4 Hardware part list Name M6*15 Hex Bolt Flat washer M6 M6*25 Hex Bolt M6*35 Hex Bolt M8*15 Hex Bolt M8 Flat washer M6/M8 Wrench Stake D8*180 Step1: Fig.1: Attach the stake cover (S) to the post (K1/K2/K3/K4). Then attach the post onto stake slice (T) by bolt (AA) and flat washer (BB).
  • Page 5 Fig.2: Connect back horizontal beam (F) to Post (K1/K4) by hex bolt (CC) and flat washer (BB). Fig.3: Connect side horizontal beam (G) to Post (K1/K2/K3/K4) by hex bolt (CC) and flat washer (BB). Fig.4: Connect front horizontal beam (H) to Post (K2/K3) by hex bolt (AA) and flat washer (BB).
  • Page 6 Step 2: Fig.8: Attach hook (D) to top horizontal tube (B). Fig.9: Attach one end of top board (C) to top horizontal tube (B) by hex bolt (AA) and flat washer (BB). Fig.10: Attach the other end of top board (C) to back horizontal beam (F) and front horizontal beam (H) by hex bolt (AA) and flat washer (BB).
  • Page 7 Fig.11: Put the central support part (E) to the middle position of top board (C) and back horizontal (F) and connect them by hex bolt (AA) and flat washer (BB). Fig.12: Connect central support part (E) to top board (C) by hex bolt (AA) and flat washer (BB).
  • Page 8 Fig.16: Attach the seat board (N) and back board (M) by hex bolt (DD) and flat washer (BB). Fig.17: Attach hanging bar (O) to armrest (L1/L2) by hex bolt (EE) and flat washer (HH). Fig.18: Attach hanging bar (P) to armrest (L1/L2) by hex bolt (EE) and flat washer (HH).
  • Page 9 Step4: Fig.22: Put the seat cushion (V) onto the seat board and put the back cushion (U) onto the seat board. Attach the hook-and-loop tape of back cushion (U) and seat cushion (V) to the seat board tube. Put the bolster pillow (W) onto the seat cushion (V).
  • Page 10 CUSTOMER SERVICE Sunjoy Group warrants to the original purchaser that this item is free from defects in workmanship and materials of your item provided the item was factory-sealed at the time of purchase and is maintained with care and used only for personal, residential purposes.
