Oriental motor BMU Series Quick Start Manual

Many other useful features are also available
Various settings in addition to changing the display are possible
Various settings can be performed when removing the front panel.
 Blocks so that the settings are not changed
 Displays the status of a load
 Holds the load at motor standstill
 Accelerates the speed slowly
OPERATING MANUAL
Refer to "8 Convenient functions"
Controlling the motor using a programmable controller is possible
AC power
supply
Controls the motor operation externally
Controls the motor operation with two or more speeds
OPERATING MANUAL
Refer to "7 Operating by programmable controller"
© Copyright ORIENTAL MOTOR CO., LTD. 2015
When the front panel is removed
Set using
these keys
Programmable
controller
ORIENTALMOTOR CO.,LTD.

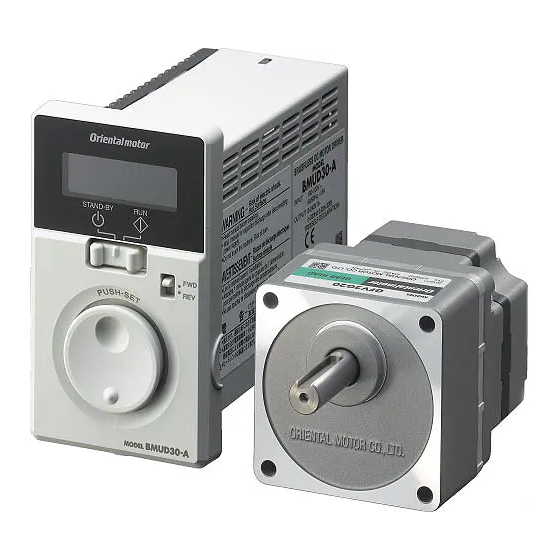

Brushless Motor and Driver Package
BMU Series
30 W / 60 W / 120 W

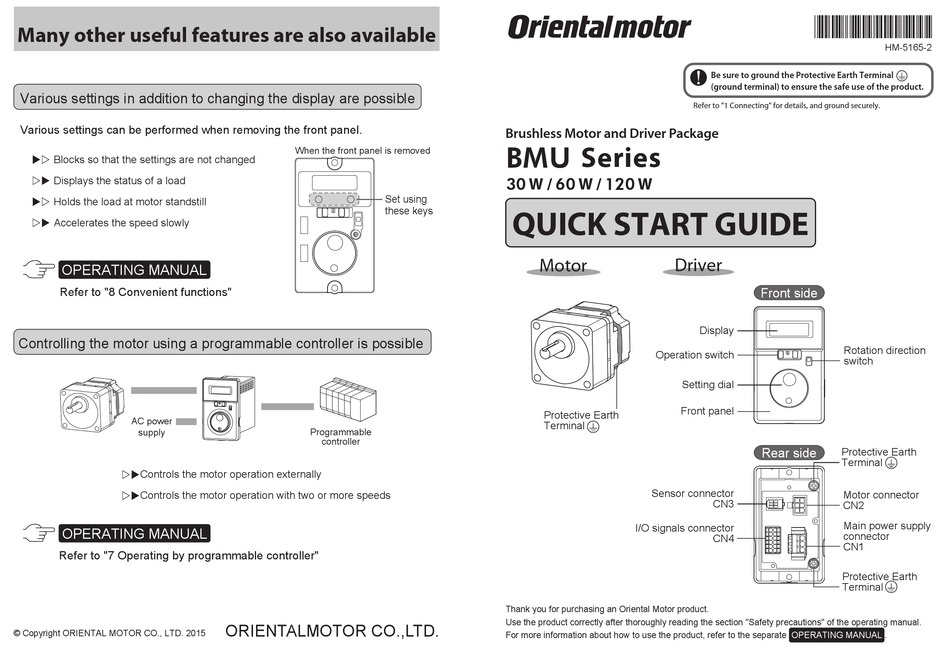

QUICK START GUIDE
Motor Driver
Operation switch
Setting dial
Front panel
Protective Earth
Terminal
Sensor connector
I/O signals connector
Thank you for purchasing an Oriental Motor product.
Use the product correctly after thoroughly reading the section "Safety precautions" of the operating manual.
For more information about how to use the product, refer to the separate
Be sure to ground the Protective Earth Terminal
(ground terminal) to ensure the safe use of the product.
Refer to "1 Connecting" for details, and ground securely.
Front side
Display
Rotation direction
switch
Rear side
Protective Earth
Terminal
Motor connector
CN3
CN2
Main power supply
connector
CN4
CN1
Protective Earth
Terminal
OPERATING MANUAL
HM-5165-2
.
