Oriental motor BMU Series Quick Start Manual

Many other useful features are also available
For example.....
The rotation speed will not change even if the setting dial is turned.
Remove
the panel.
MODE key
lock
To the 1
Press the MODE key
setting data
Top screen of
monitor mode
release
To 1
Press the MODE key
the lock
And others.....
 To display the rotation speed of the
gearhead output shaft
 To display the size of a load
 To hold a load by the slight
position-keeping function
 To increase the rotation speed slowly
Refer to "8 Convenient functions."
OPERATING MANUAL
The motor can be operated using a programmable controller.
AC power supply
OPERATING MANUAL Refer to "7 Operating by programmable controller."
© Copyright ORIENTAL MOTOR CO., LTD. 2016
Display: Rotation speed
FUNCTION key
2
Press and hold the MODE key for 5 seconds
When the
FUNCTION key is
pressed, the rotation
The display blinks
speed is displayed.
several times
2
Press and hold the MODE key for 5 seconds
The display blinks
several times
As mentioned in the right,
various operating functions
are available.
ORIENTALMOTOR CO.,LTD.

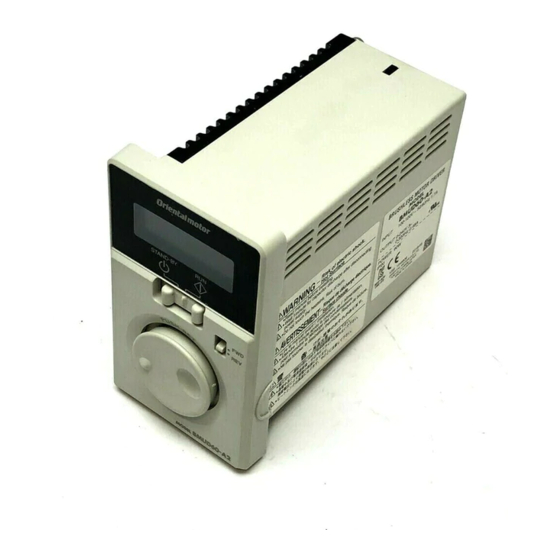

Brushless Motor
Refer to "1 Connecting" for details, and ground securely.
BMU
Series
30 W / 60 W / 120 W
Connector type
QUICK START GUIDE
Thank you for purchasing an Oriental Motor product.
Use the product correctly after thoroughly reading the section "Safety precautions" of the operating
manual.
This document describes methods till rotating the motor after connecting it to the driver.
For details about how to use the product, refer to the
Package contents
The package includes the items shown below.
□ Driver □ Connector
CN1 : 3 pin
CN4 : 9 pin
□ QUICK START GUIDE (this document)
□ OPERATING MANUAL
Connection cable (sold separately)
There are two types of connection cables
which cable leading directions are di erent.
(→ Refer to the right gure)
Be sure to ground the Protective Earth Terminal
(ground terminal) to ensure the safe use of the product.
This document describes for when the
motor is of the connector type.
The descriptions other than "connection
for motor and cable" are common to the
BMU Series.
supplied with the driver.
OPERATING MANUAL
Motor (sold separately)
□
□
Motor Mounting screw set
The gure shows an Supplied with the
example of the combination type.
combination type.
□
OPERATING MANUAL
∗
Be sure to match the motor output power with the
driver output power.
To connect the motor and driver, the dedicated
connection cable is always needed.
Leading in direction of Leading in opposite direction
output shaft of output shaft
Model: CC__HBLB
Model: CC__HBLF
For the round shaft type, only the cable for leading in
opposite direction of output shaft can be used.
HM-5191
