Oriental motor BMU Series Quick Start Manual

2 Operating a motor
1
AC power ON
Set the operation switch to
[ STAND-BY ] Power ON
The gure is an example
for when the product is
of a single-phase 100 VAC.
If the power supply is turned on while the operation switch
is set to the [RUN] side, the alarm
【 】
How to reset Set the operation switch to [STAND-BY].
The alarm is reset, and the motor rotation
speed is displayed.
2
Start of motor
[ RUN ]
The motor rotates.
50 r/min (factory setting)
REV
FWD
REV
Switch the motor rotation direction
using the rotation direction switch.
3
Change of motor speed
Adjustment
Decelerate
Accelerate
When the setting dial is turned, the display blinks.
You can change the speed while blinking.
© Copyright ORIENTAL MOTOR CO., LTD. 2015
The display blinks
Rotation speed
0 r/min (standstill)
Operation switch
FWD
REV
Rotation
direction switch
Setting dial
is generated.
To stop the motor
[ STAND-BY ]
FWD
FWD
REV
The motor stops.
[ Example: 50 → 1000 r/min ]
When the setting dial is
Set
pressed, the display
changes to lighting
from blinking, and the
speed will be set.
When you start the
Press
motor next time, it will
rotate at the set speed.
Published in December 2019
ORIENTALMOTOR CO.,LTD.
Brushless Motor
BMU Series
QUICK START GUIDE
Thank you for purchasing an Oriental Motor product.
Use the product correctly after thoroughly reading the section "Safety precautions" of the operating manual.
This document describes methods till rotating the motor after connecting it to the driver.
For details about how to use the product, refer to the
the driver.
This document describes for when the motor is of the connector type.
Package contents
The descriptions other than "connection for motor and cable" are
common to the BMU Series.
The package includes the items shown below.
□ □

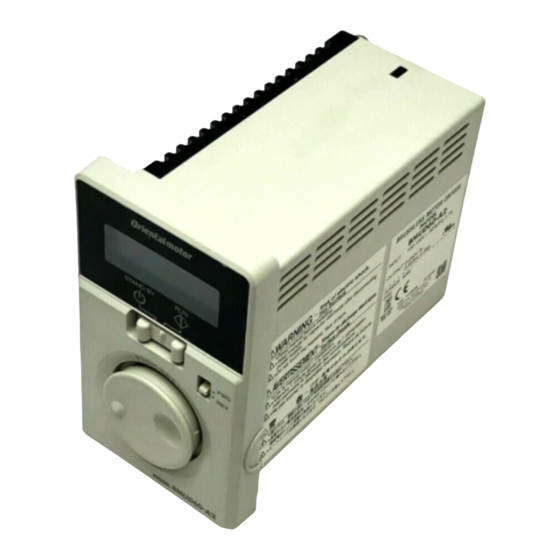

Driver
• 30 W to 120 W
The figure shows the
30 W to 120 W driver.
□
QUICK START GUIDE
(this document)
□
OPERATING MANUAL
Motor (sold separately)
□
Motor □
Mounting screw set
The gure shows an Supplied with the
example of the combination type.
combination type.
□
OPERATING MANUAL
∗ Be sure to match the motor output power with the driver output power.
OPERATING MANUAL supplied with
Connector
• 200 W to 400 W
CN1 : 3 pin CN1 : 3 pin
CN4 : 9 pin CN4 : 12 pin
Connection cable (sold separately)
To connect the motor and driver, the dedicated
connection cable is always needed.
HM-5191-3
