ASSEMBLY INSTRUCTIONS
8

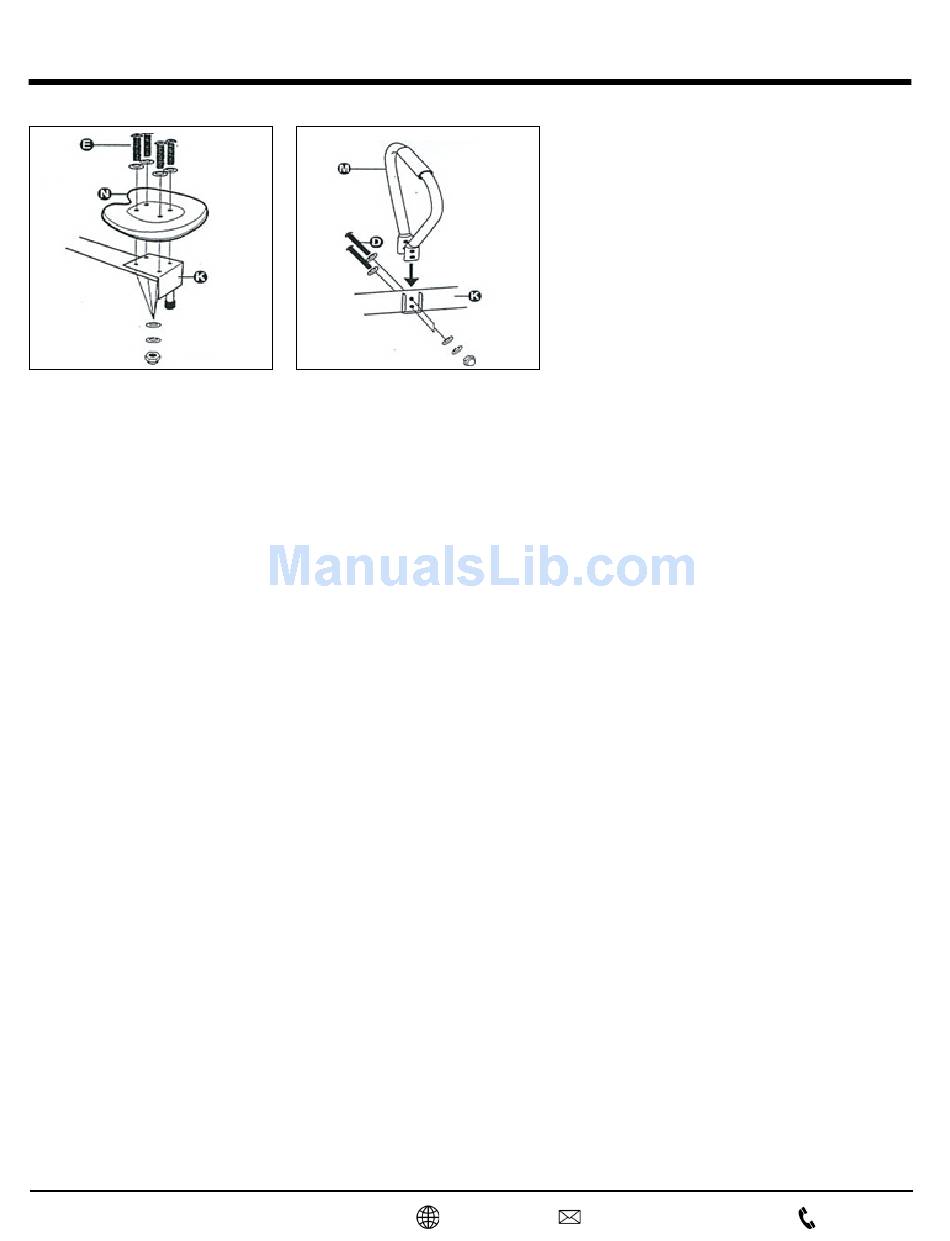

STEP 1:
A. Secure a plastic seat (N) onto each end
of the Side Bars (K) using 4x M6 25mm
Bolts (E), 8x M6 Washers (F), 4x Lock
Washers (G), and 4x Nuts (P), as shown
in Figure 1.
NOTE:
Make sure that the Lock Washer is resting
against each Nut.
B. Affix the a Handlebar (M) to each of the
Side Bars (K) using 2x M6 45mm Bolts,
4x M6 Washers (F), 2x Lock Washers
(G), and 2x Nuts (P) as shown in Figure
2. Make sure that the Lock Washer is
resting against each Nut.
GQBrands.com
CustomerService@GQBrands.com
1-866-498-5269
