Eneo DOME-S1 Installation Manual

DOME-S1 Installation Guide

Parts supplied

• DOME-S1
• Installation Guide
• L-Wrench 3 mm
• Sunshild screw with washer M2.5x8 (x3)
• Assembly screw M4x12 (x3)
• Assembly ring

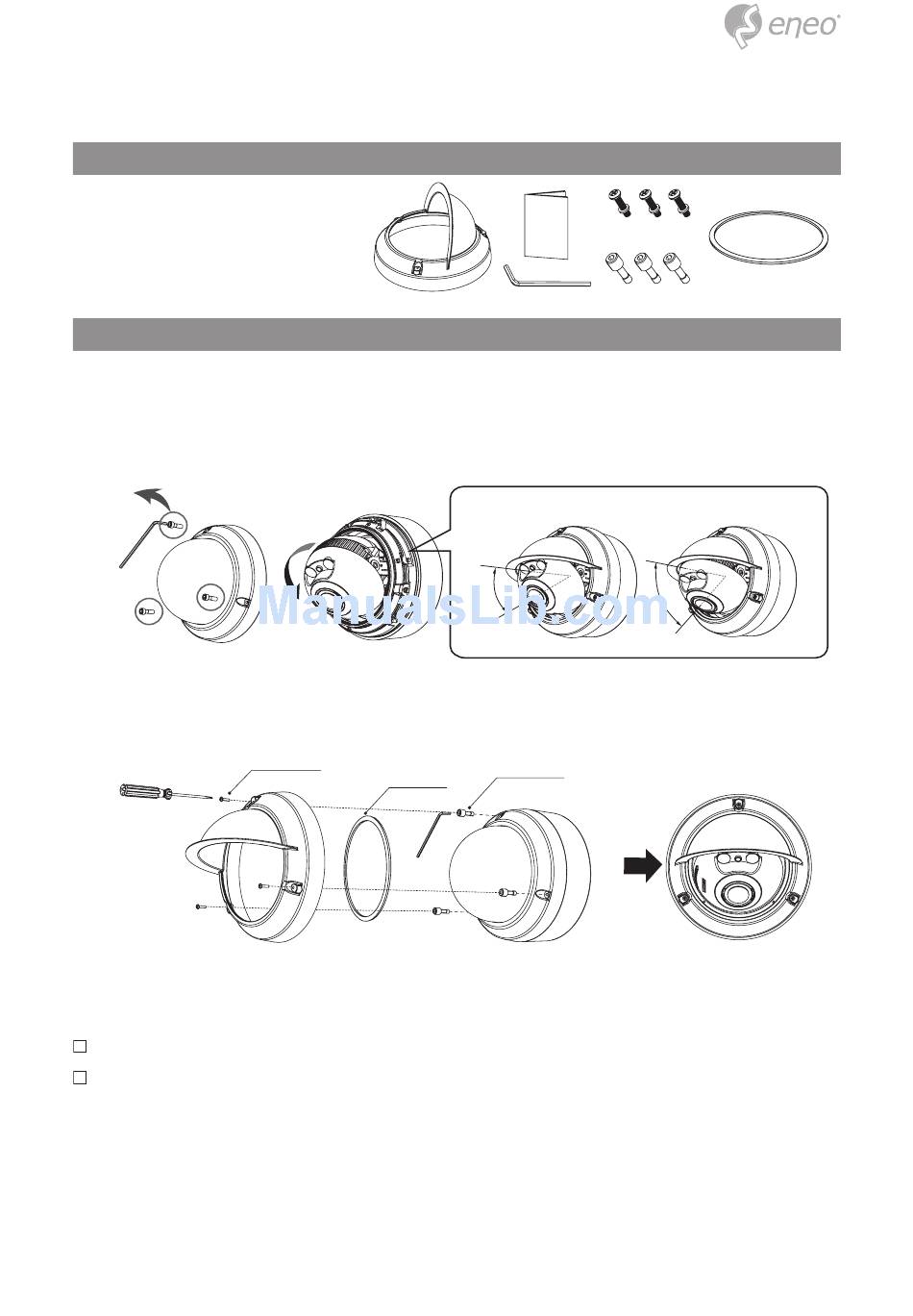

How to assemble

After installing a vandalproof dome camera on the wall, assemble the sunshield with the camera unit as illustrated.
1. Remove the assembly screws from the Dome Cover and adjust viewing angle by the Gimbal.
Gimbal should be set between 40° ~ 60° so as not to get IR LEDs covered by Sunshield. (Built-in 30pcs IR LED model :
35°~60°) If IR LEDs are covered by Sunshield, it causes IR LEDs reflection and shown on the video when IR LEDs are ON
at night.
2. Assemble the Dome Cover by using supplied M4x12 assembly screw.
Do not use the screw which was originally assembled with Dome cover. It doesn't fit to Sunshield.
3. Fix the Sunshield by using supplied M2.5x8 screws to M4x12 screws.
4. Since the camera is installed on the wall, please reverse the direction of video left/right and up/down by MIRROR/FLIP
in camera menu.
Notice: Please do not use an electronic screw driver to assemble screws.
i
Caution:
i
Please do not cover IR LEDs by sunshield. It causes IR reflection when IR LEDs ON and reflection shows on the video. Please
follow application guide with green hook. If IR LEDs are not necessary, please turn them off in the camera.
M2.5x8
Limit the gimbal tilt adjustment
40°
M4x12
60°
