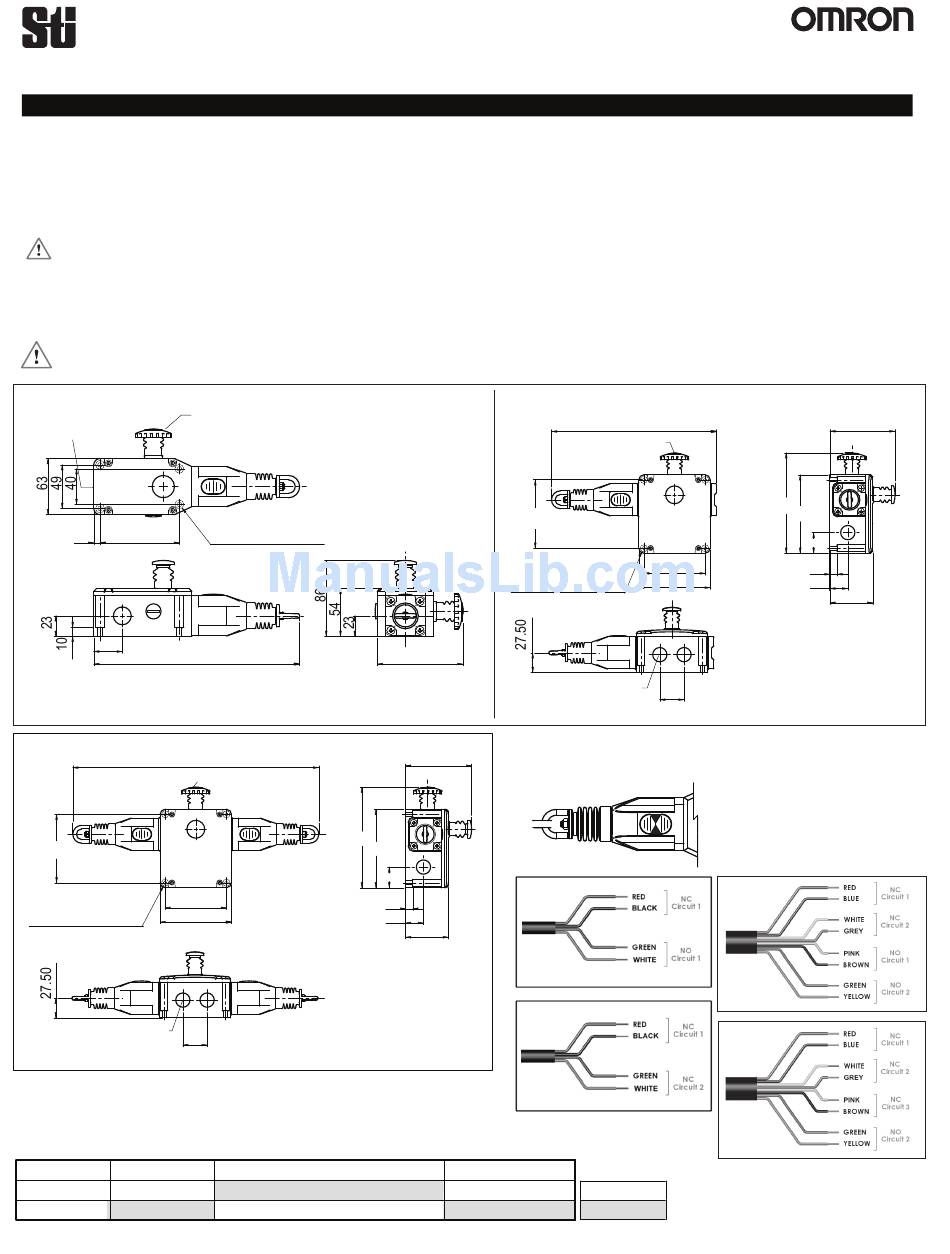

Omron XER6022-SS Operating Instructions

Safety,
Technology
& Innovation
XER Series
Operating Instructions for XER6022, XER6022-SS, XER1022 & XER1032

Explosion-Proof Classification

The explosion-proof models of safety interlock switches are specifically designed for potentially explosive atmospheres while retaining the features and operating
characteristics of the conventional models.
A sealed flameproof contact block makes the explosion-proof interlock switches suitable for use in European Zone 1 and Zone 2 environments, which are typical
of those found in the chemical and petrochemical industries. All switches are classified by the European method as EEx d II C T6. For a full explanation of the
classification method, see "Hazardous Location Rating Systems for Interlock Switches" in The Safety Library Section of this catalog.
WARNING: These switches are not suitable for use in atmospheres containing Group I gases, e.g., methane (firedamp).
These switches DO NOT meet all conditions of the US classification of Class I, Div 1, due to the differences between European and US classification
methods. In the US and Canada, these products can be used in areas classified as Class I, Division 2 in Groups A (acetylene), B (hydrogen), C (ethylene) and D
(propane).
Installation must be in accordance with the following steps and stated specifications and should be carried out by suitably competent personnel.
Adherence to the recommended maintenance instructions forms part of the warranty.
WARNING: Do not defeat, tamper, remove or bypass this unit. Severe injury to personnel could result.
XER6022
XER6022-SS
Optional E-Stop Button
cable entry
7 89
32
222 min - 239 max
All Dimensions in mm
XER1032
327 min - 361 max
Optional E-Stop Button
96
4 Mounting Holes
86
Clearance
100
for M5 Screws
cable entry
34
All Dimensions in mm
Contact Arrangement: XER6022, XER6022-SS, XER1022 and XER1032 Models
0mm
Rope Slack
1NC/2NC/3NC
1NO/2NO
4 Mounting Holes Clearance
for M5 Screws
143
110
29
3.5mm
Tension Range
XER1022
Optional E-Stop Button
96
4 Mounting Holes
Clearance
for M5 Screws
96
All Dimensions in mm
Tension Indicator
92
Indicator shown with steel rope properly adjusted.
1NC + 1NO
10
25
60
2NC
14.5mm 17.0mm
Rope Pulled
223 min - 240 max
86
100
cable entry
34
Left Sided Model: XER1022-011C3L
2NC + 2NO
3NC + 1NO
Contact open
Contact closed
92
143
110
29
10
25
60
