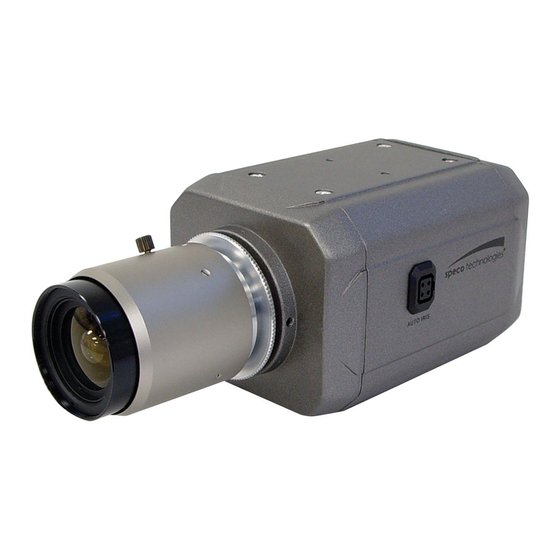

Speco HTINTT5H Manual

Intensifier H® Series Traditional Camera
Accepts C & CS mount lenses, Dual Voltage (12VDC / 24VAC)
HTINTT5H – Grey housing

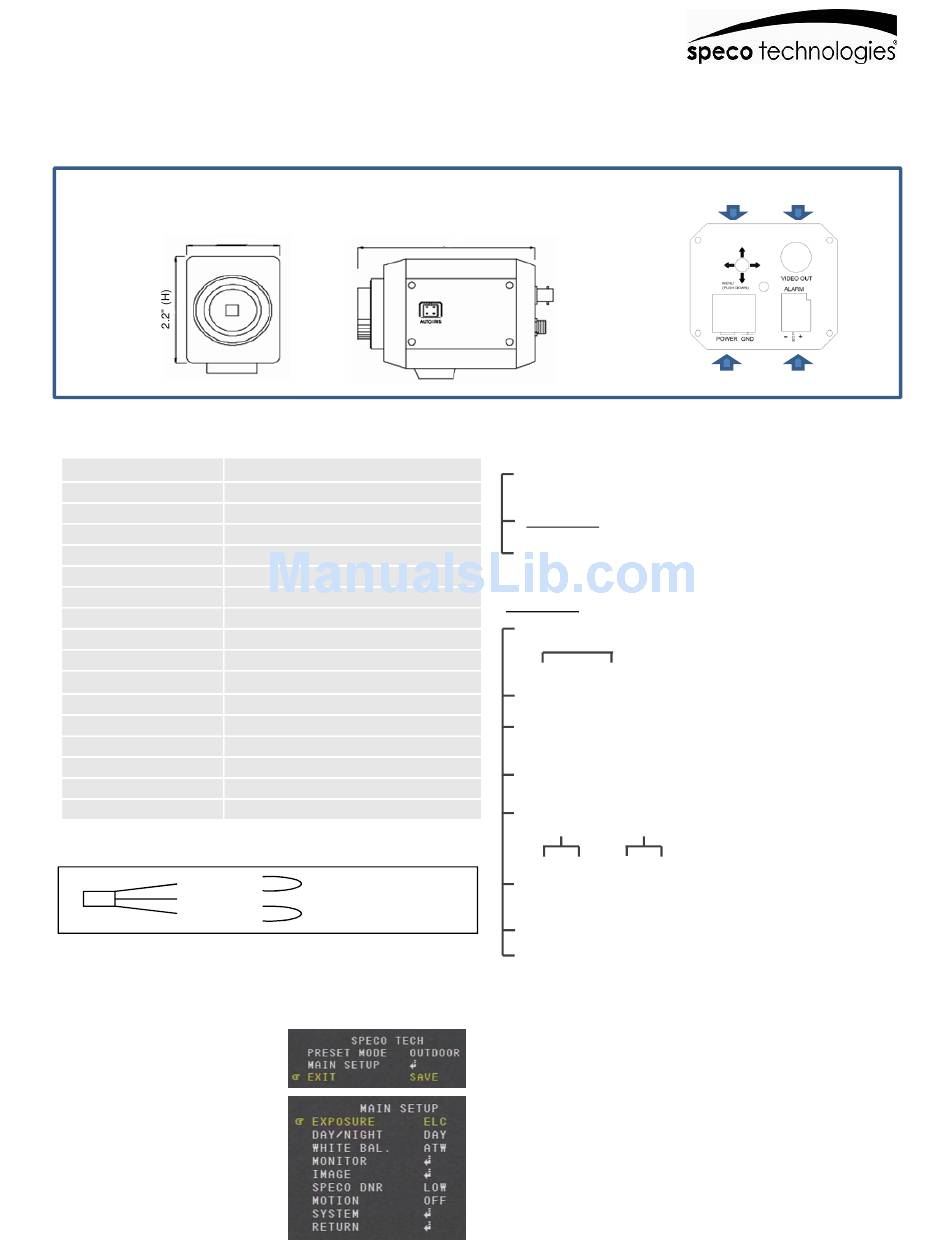

DIMENSIONS

Front View
2.5" (W)
Unit : inch

SPECIFICATIONS

ITEMS
Lens
Image Sensor
Resolution
Total Pixels
Effective Pixels
Scanning System
Synchronization Synchronization
Min. Illumination
S/N (Y signal)
Shutter
Power Consumption
Power Supply
Operational Temp.
Storing Temp.
Dimensions
Weight

RELAY-Out (ALARM-Out)

+ RED
COM (GREY)
- WHITE
Connect (+ , COM) for Positive activation and (-. COM) for Negative activation of
External Alarm Device when Motion Detection is 'ON' in the camera.

OSD MENU Details

PRESET : Used for quick and easy setup
for the installation environment.
MAIN SETUP : to adjust more detailed
Function, press this button then you get
More OSD tree as window as right side.

EXIT

- SAVE : Press to save the current
settings and exit main menu.
- RESTORE : Press to exit main menu
without saving settings.
- INITIAL : Resets all settings to its factory
defaults.
Intensifier H® Series Traditional Camera
Accepts C & CS mount lenses optionally
1/3" SONY COLOR 960H CCD
700TV lines
1020(H) x 508(V) (NTSC)
976(H) x 494(V) (NTSC)
2 : 1 Interlace
Internal Internal
0.01Lux at F1.2, 0.00001Lux (Sens-up x512)
50dB
1/60~1/120,000sec (NTSC)
150mA (DC) / 2W (AC)
12VDC / 24VAC Dual Voltage
14 F - 122 F
° °
-4 F - 140 F
° °
2.5"(W) x 2.2"(H) x 3.46"(L)
1.5Ibs.
Positive Alarm Device
Negative Alarm Device
Side View Back panel
Configuration
3.46" (L)

OSD MENU TREE

PRESET MODE

• INDOOR • OUTDOOR • LOW LIGHT • LOBBY • HALLWAY • ELEVATOR

MAIN SETUP***

EXIT
• SAVE • RESTORE • INITIAL
MAIN SETUP***

EXPOSURE

EXPOSURE
• ELC
• ALC
• AGC • INTENSIFY
DAY / NIGHT
• DAY • NIGHT
WHITE BAL
• ATW • PUSH
MONITOR
• GAMMA • CHROMA
• BACKLIGHT
• BLC • HLC
SPECO DNR
• LOW / MIDDLE / HIGH / OFF
MOTION
SYSTEM
• CAM TITLE
EXPOSURE : Adjusts exposure settings.
ALC / ELC (Automatic Light Control) / ELC (Electronic Light Control)
LENS : Select the lens type (ALC/ELC)
BRIGHTNESS : Adjusts image brightness. (0~ 20)
SHUTTER : Auto / Manual Shutter can be selectable (1/60 ~ 1/120000)
FLK(Flicker Less) : Select this when the picture flickers (ON/OFF)
AGC: Adjusts the Automatic Gain Control level. (0~20)
INTENSIFY : x2-x512 (increasing magnification may cause noise/distortion).
DAY / NIGHT : Adjust Day / Night options.
DAY : Full time color mode (This camera has this function as a factory default)
NIGHT : Full time B/W mode.
AUTO : Day / Night is switching automatically by AGC level.
EXTERN & CDS : not use for this camera
200 New Highway, Amityville, NY 11701
800-645-5516 / www.specotech.com
OSD joystick
Power In
• EXT.
• AUTO
• MANUAL
• SHARPNESS • SHADING
•CONTRAST • POSI/NEGA •H-MIRROR
• WDR • DEFOG
• CAM ID • ID DISP • SYNC
•SPECIAL
BNC Out
Relay Out
• PED.LV
•PRIVACY
• LANGUAGE
