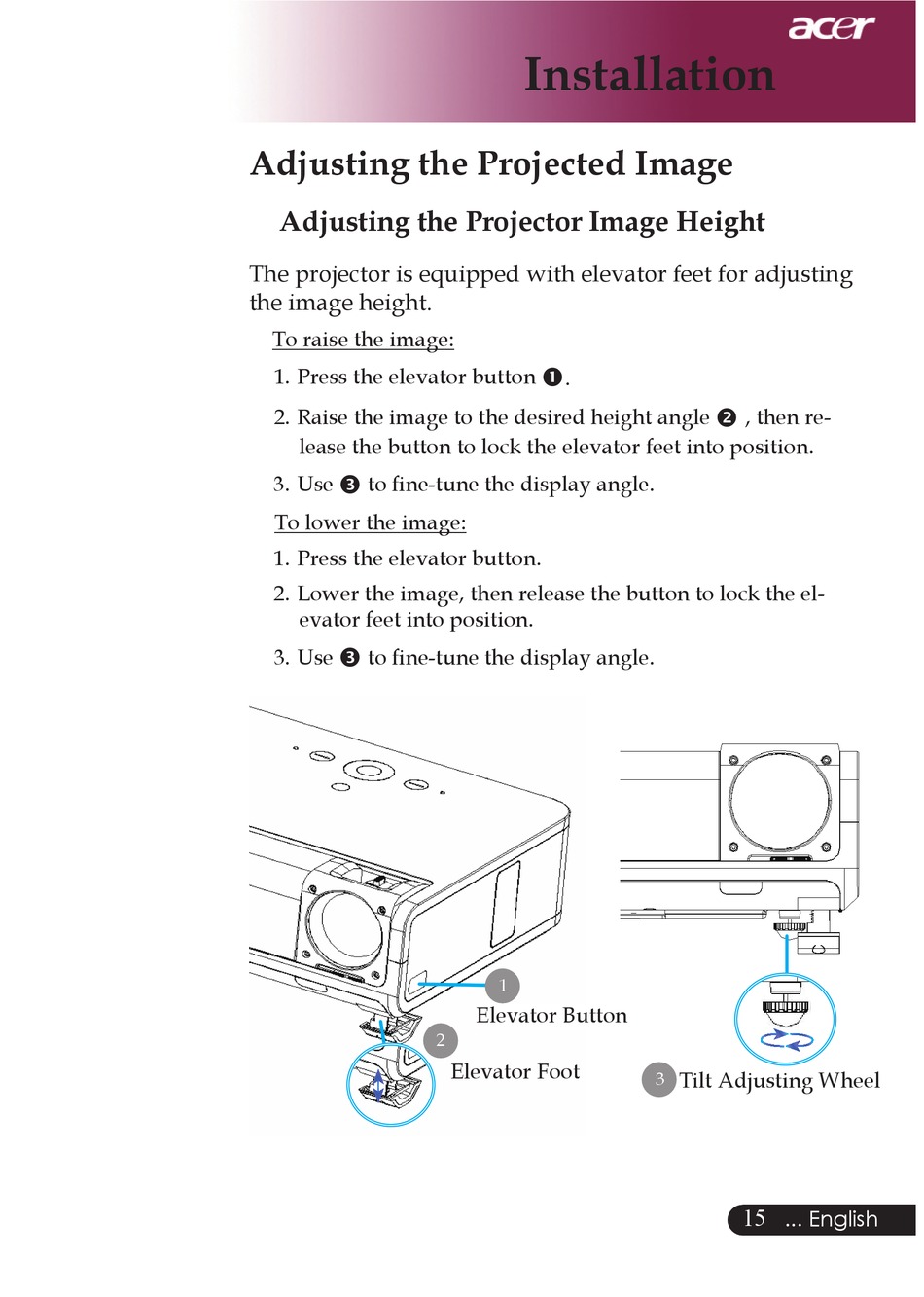

Adjusting the Projected Image

The projector is equipped with elevator feet for adjusting

the image height.

To raise the image:

1. Press the elevator button

2. Raise the image to the desired height angle

lease the button to lock the elevator feet into position.

3. Use

to fine-tune the display angle.



To lower the image:

1. Press the elevator button.

2. Lower the image, then release the button to lock the el-

evator feet into position.

3. Use

to fine-tune the display angle.



Installation



Elevator Button

Elevator Foot



, then re-

Tilt Adjusting Wheel

... English
