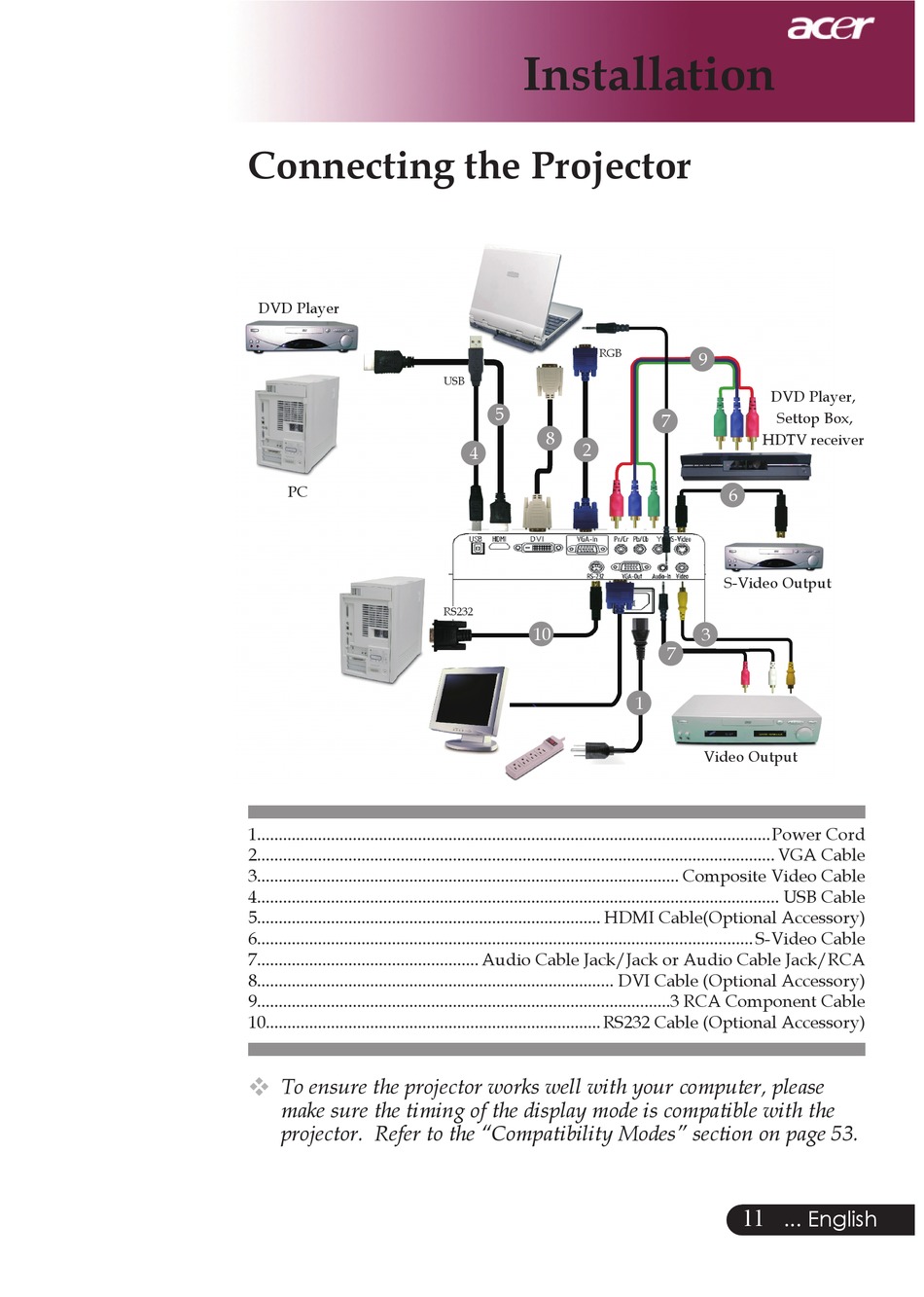

Installation; Connecting The Projector - Acer PD724 series Manual

Acer projector user manual.

DVD Player

1......................................................................................................................Power Cord

2....................................................................................................................... VGA Cable

3................................................................................................. Composite Video Cable

4........................................................................................................................ USB Cable

5............................................................................... HDMI Cable(Optional Accessory)

6.................................................................................................................. S-Video Cable

7................................................... Audio Cable Jack/Jack or Audio Cable Jack/RCA

8.................................................................................. DVI Cable (Optional Accessory)

9...............................................................................................3 RCA Component Cable

10............................................................................. RS232 Cable (Optional Accessory)

To ensure the projector works well with your computer, please



make sure the timing of the display mode is compatible with the

projector. Refer to the "Compatibility Modes" section on page 53.

Installation

RGB

USB

RS232

DVD Player,

Settop Box,

HDTV receiver

DVI

S-Video Output

Video Output

... English
