e-ICE User's Guide
1-2 selects the internal VDD (Figure 9)
2-3 selects an external power supply provided on VEXT (Figure 10)

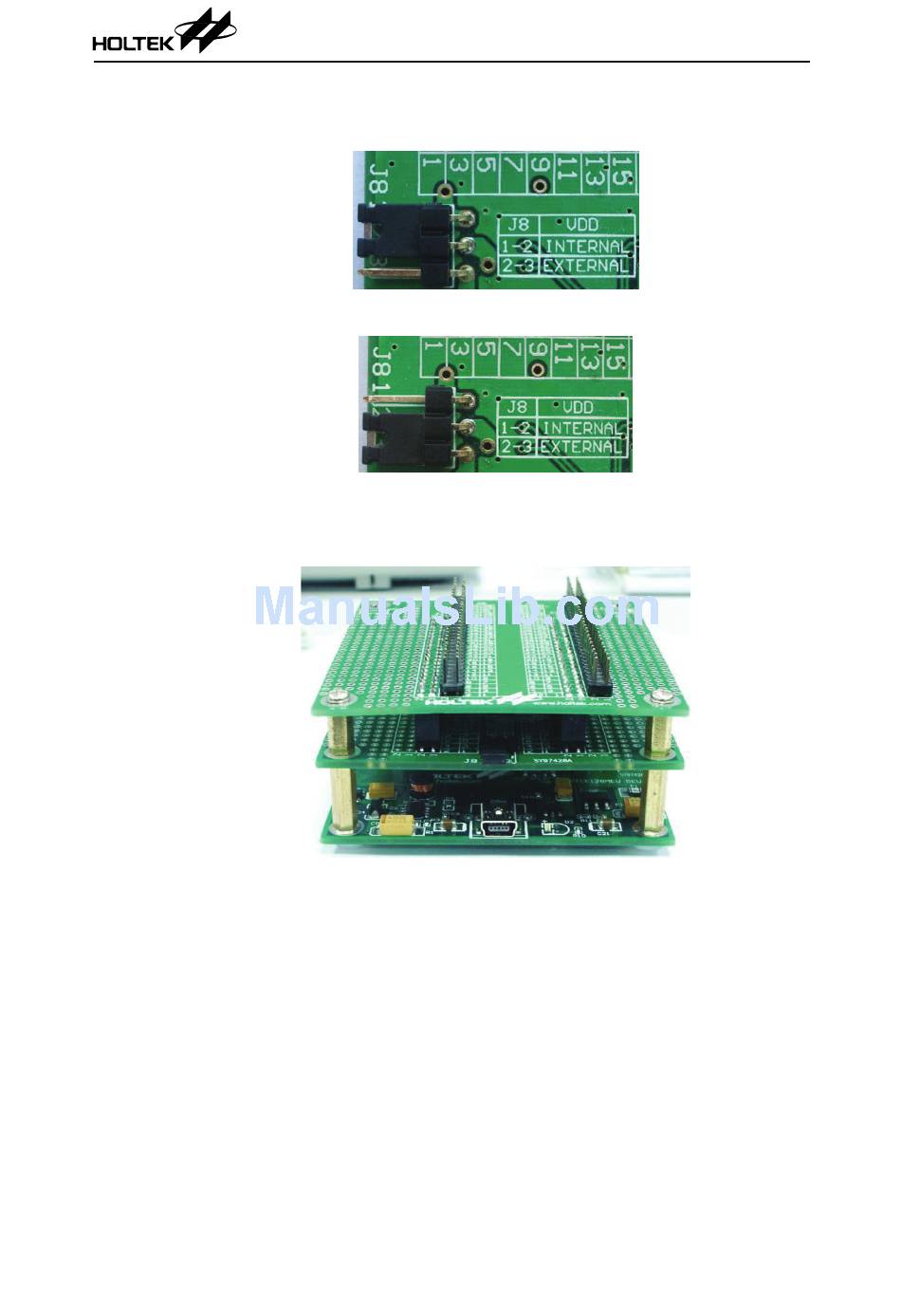

Figure 9 Connect jumper between 1-2 for internal VDD power supply
Figure10 Connect jumper between 2-3 for external VEXT power supply

Connect the EV Board

Figure 11 MEV Board+DEV Board+PEV Board
Layer Order:
Bottom Layer: MEV Board
Middle Layer: DEV Board
Top Layer: PEV Board -- not always necessary
Ensure screws are firmly secured for good contact.
Connect to the USB Port and Simulation will begin Using the
IDE3000
8
