e-ICE Operation

IDE3000 Software Update

The new emulator continues to use the original HT-IDE3000 software, however it should
be upgraded to at least Version V7.1 which offers support for the e-ICE.
This can be downloaded at the Holtek official website.
Download the latest IDE3000 ensuring that is the correct version.

Accompanying MCU Tools


Open the accompanying MCU tools Excel table.
There are two options provided:
1. Execute the HT-IDE3000 V7.4, click "menu/help/Holtek e-ICE pin mapping table."
2. Open the

In the Excel table, press "DEV name" or "MCU name" to check.

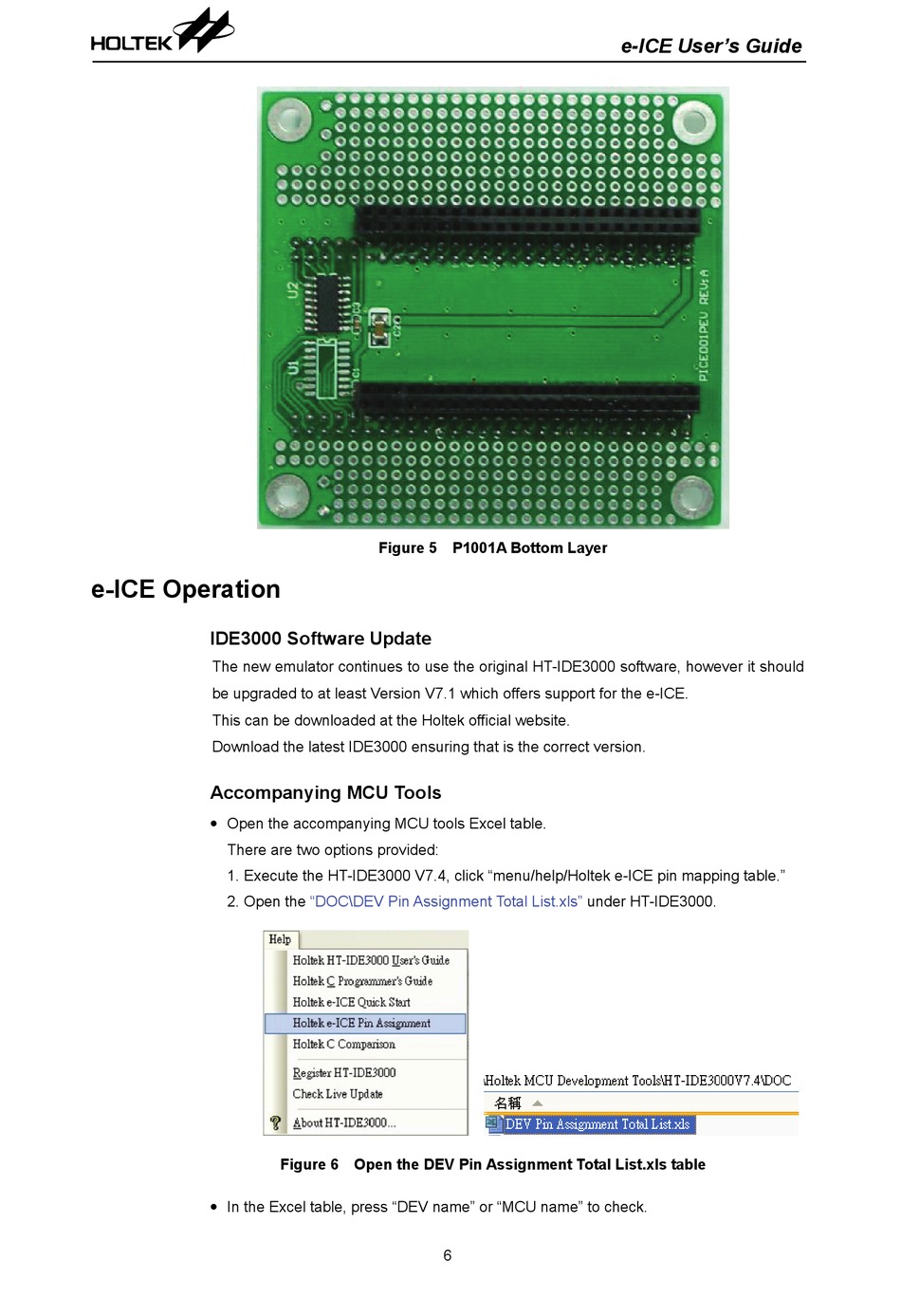

Figure 5 P1001A Bottom Layer
"DOC\DEV Pin Assignment Total List.xls"
Figure 6 Open the DEV Pin Assignment Total List.xls table
6
e-ICE User's Guide
under HT-IDE3000.
