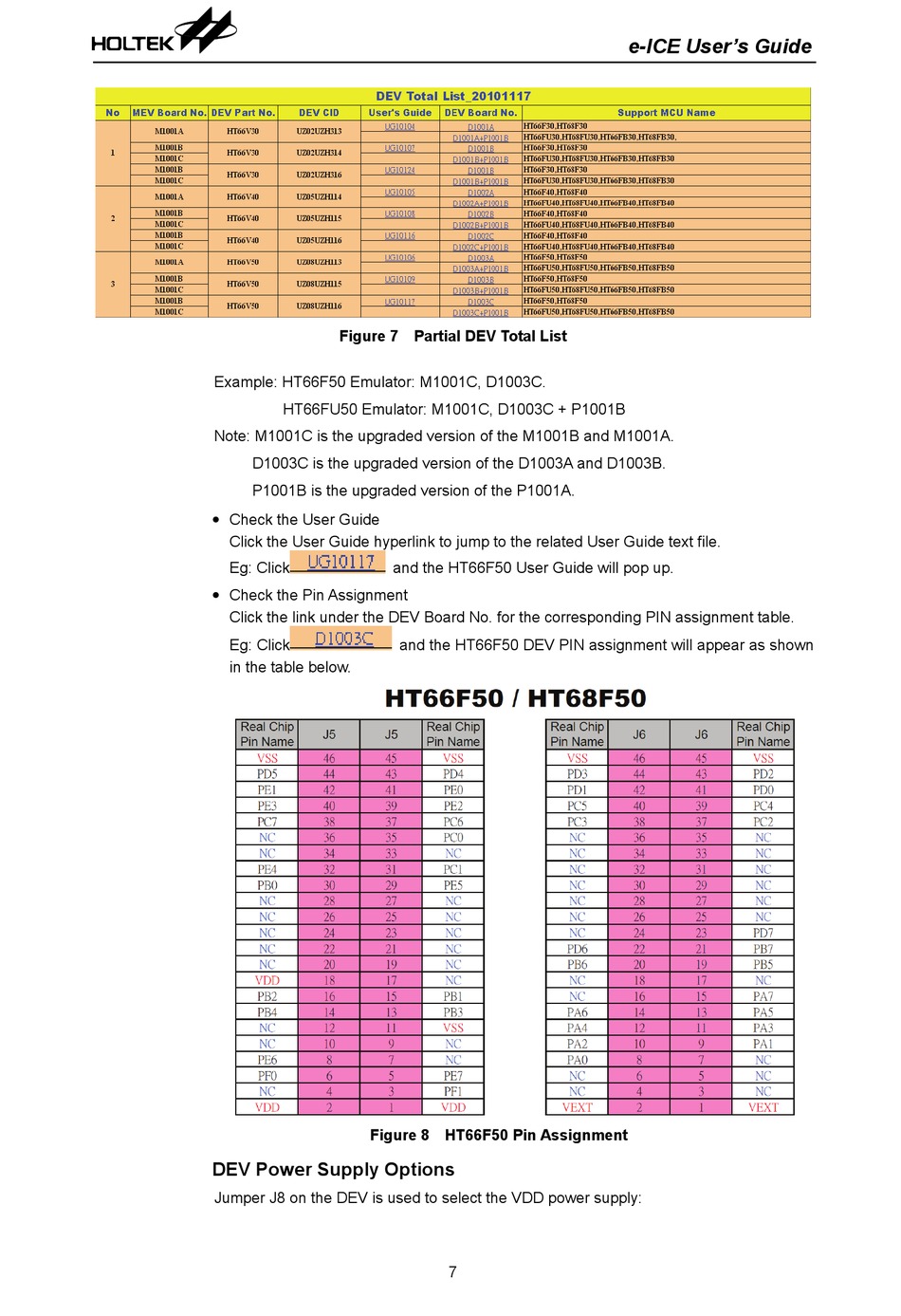

Figure 7 Partial DEV Total List
Example: HT66F50 Emulator: M1001C, D1003C.
HT66FU50 Emulator: M1001C, D1003C + P1001B
Note: M1001C is the upgraded version of the M1001B and M1001A.
D1003C is the upgraded version of the D1003A and D1003B.
P1001B is the upgraded version of the P1001A.

Check the User Guide
Click the User Guide hyperlink to jump to the related User Guide text file.
Eg: Click

Check the Pin Assignment
Click the link under the DEV Board No. for the corresponding PIN assignment table.
Eg: Click
in the table below.
Figure 8 HT66F50 Pin Assignment

DEV Power Supply Options

Jumper J8 on the DEV is used to select the VDD power supply:
and the HT66F50 User Guide will pop up.
and the HT66F50 DEV PIN assignment will appear as shown
7
e-ICE User's Guide
