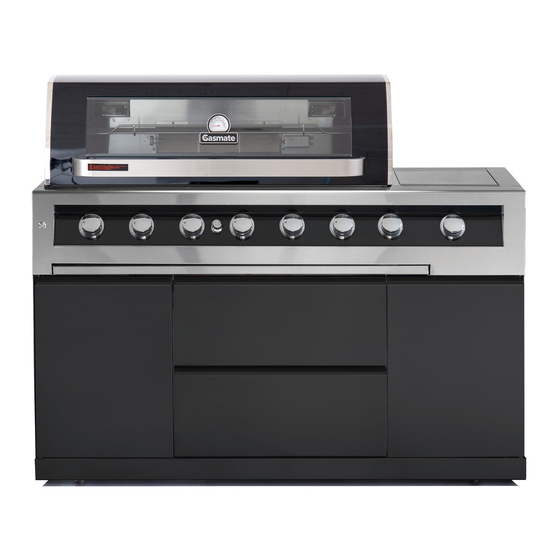

6 BURNER BBQ
Model No. BQ1090BLBH, BQ1090BLBHNG,
BQ1090BLBHSL
DRAWER MODULE
Model No. BQ1093BL
FRIDGES AND FRIDGE TOPS ALSO AVAILABLE
TO INTEGRATE AND COMPLETE YOUR
OUTDOOR KITCHEN
Gasmate® is a registered trademark of Sitro Group Australia Pty Ltd
www.gasmate.com.au Aber Living, N.Z.
04466 08/22
GALAXY BLACK
BBQ & MODULES
BUILT-IN BBQ
Model No.
BQ1090BLBHB,
BQ1090BLBHBNG,
BQ1090BLBHBSL
STORAGE MODULE
Model No. BQ1092BL
www.gasmate.co.nz
SINK MODULE
Model No. BQ1091BL
IMPORTANT: RETAIN THESE
INSTRUCTIONS FOR FUTURE USE.
LCC27 REGULATOR SUPPLIED
THIS LCC27 REGULATOR CAN ONLY BE USED
WITH THE NEW SAFER INDUSTRY STANDARD
LCC27 GAS CYLINDER CONNECTION.
BUILT-IN BBQ
Model No.
BQ1190BLB,
BQ1190BLBNG,
BQ1190BLBSL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GALAXY BLACK BQ1090BLBH and is the answer not in the manual?

Questions and answers

Summary of Contents for Gasmate GALAXY BLACK BQ1090BLBH

  • Page 1 TO INTEGRATE AND COMPLETE YOUR OUTDOOR KITCHEN LCC27 REGULATOR SUPPLIED THIS LCC27 REGULATOR CAN ONLY BE USED Gasmate® is a registered trademark of Sitro Group Australia Pty Ltd WITH THE NEW SAFER INDUSTRY STANDARD www.gasmate.com.au Aber Living, N.Z. www.gasmate.co.nz LCC27 GAS CYLINDER CONNECTION.
  • Page 2: Read Me First

    READ ME FIRST GAS LEAK TESTING It is important that you leak test the BBQ before first use and every time the gas cylinder is refilled and reconnected to the BBQ. To Complete Leak Test • Make sure all the control knobs are OFF. •...
  • Page 3: General Information

    GENERAL INFORMATION FOR YOUR SAFETY • Never test for gas leaks with a lit match or open flame. Never light barbecue with hood closed or Failure to comply with these instructions could before checking to ensure the burner tubes are result in a fire or explosion which could cause fully seated over gas valve orifices.
  • Page 4: If You Smell Gas

    GENERAL INFORMATION Hose & Regulator Safety The regulator and hose assembly supplied with the IMPORTANT barbecue are suitable for Propane Gas. Read these instruction carefully prior to use. A gas regulator adjusted to have an outlet pressure of Familiarise yourself with the appliance before 2.75kPa is supplied for connection to the propane gas connecting it to it’s gas container.
  • Page 5: Electrical Information

    ELECTRICAL INFORMATION To reduce the risk of personal injury or damage to property, follow basic safety precautions IMPORTANT SAFEGUARDS when using this product, including the following: READ THESE INSTRUCTIONS CAREFULLY BEFORE USING THE PRODUCT. KEEP • DO NOT use the Product for other than its intended THE INSTRUCTIONS HANDY FOR FUTURE use as described in these instructions.
  • Page 6: Electrical Data

    ELECTRICAL DATA GENERAL ASSEMBLY CONNECTING & DISCONNECTING TO THE IMPORTANT GAS SOURCE This product is fitted with a sealed electrical connection Familiarise yourself with the general information and plug that is compatible with the product, the mains safety guidelines located at the front of this manual. supply for Australia and meets the requirements of DO NOT USE AN ADAPTOR AT THE CYLINDER international standards.
  • Page 7: Lighting Procedure

    LIGHTING PROCEDURE Burner Operation & Ignition System Check Lighting With Match 1. Turn the control knobs clockwise to “OFF” position. If needed you can light burners using a match and the provided holder. The holder can be found chained to the 2.
  • Page 8: Operating Procedure

    OPERATING PROCEDURE Burn-off Roasting The cooking surface does not need any burn-off time For best results when roasting remove the hotplate and after first use. centre the grill. The outer two burners should be used on the low to medium setting. Preheating Adjust the control knob to maintain the temperature It is necessary to preheat the barbecue for at least 5...
  • Page 9: Care And Maintenance

    CARE & MAINTENANCE Location of your Barbecue As with all appliances, proper care and maintenance will keep them in top operating condition and prolong DO NOT use your barbecue in garages, porches, sheds, their life. Your new gas barbecue is no exception. By breezeways, or other enclosed areas.
  • Page 10: Cleaning The Burner

    Flash-Back Spiders and small insects occasionally spin webs or WARNING make nests in the burner tubes during warehousing and transit. These webs can lead to a gas flow obstruction Beware of spiders and wasps. Burner tube should be which could result in a fire in and around the burner inspected and cleaned periodically.
  • Page 11 EXPANDED VIEW - BQ1090BLBH, BQ1090BLBHNG, BQ1090BLBHSL Description Quantity Description Quantity Trolley bottom panel Main body Gas bottle holder Flame tamer Trolley right inner panel Warming rack Cooking plate Trolley left inner panel Drawer Cooking grid Shelf inside cabinet Side burner grid Left door Fat tray Trolley left panel...
  • Page 12 ASSEMBLY INSTRUCTIONS IMPORTANT IMPORTANT: Remove any transit protection material before use. Remove all packing and transit protection before assembly. Tools required: CAUTION: Ensure no packing material is left in BBQ before lighting. STEP 1 Unscrew ignition cap and place a Battery (size AA - not supplied) into place with the (+) end facing outwards.
  • Page 13 EXPANDED VIEW - BQ1090BLBHB, BQ1090BLBHBNG, BQ1090BLBHBSL Description Quantity Description Quantity Side burner grid Main body Side bracket Flame tamer Fat tray Warming rack Transformer Cooking plate Adjustable feet Cooking grid EXPANDED VIEW - BQ1190BLB, BQ1190BLBNG, BQ1190BLBSL Description Quantity Description Quantity Side bracket Main body Fat tray...
  • Page 14 ASSEMBLY INSTRUCTIONS STEP 1 Assemble the side bracket and adjustable feet. IMPORTANT Remove all packing and transit protection before assembly. CAUTION: Ensure no packing material is left in BBQ before lighting.
  • Page 15 BUILT-IN BBQ DIMENSIONS GALAXY BLACK 6 BURNER BUILT-IN BBQ Model No. BQ1090BLBHB BQ1090BLBHBNG 1000mm 110mm BQ1090BLBHBSL 110mm 110mm Ø hole for hose & wiring access 145mm 585mm 270mm 1470mm GALAXY BLACK 6 BURNER CLASSIC BUILT-IN BBQ Model No. BQ1190BLB 1000mm BQ1190BLBNG 110mm 110mm...
  • Page 16: Installation Steps

    INSTALLATION STEPS IMPORTANT The front skirting board may not be pre-installed on the BBQ. This to avoid damage in transit. Follow Remove all packing and transit protection before below steps to install the front skirting board. assembly. CAUTION: Ensure no packing material is left in BBQ before lighting.
  • Page 17 STEP 3 Insert the spacer plugs...
  • Page 18: Natural Gas Conversion

    NATURAL GAS CONVERSION Conversion ONLY to be done by an authorised person. TO BE INSTALLED ONLY ON OR IN A NON-COMBUSTIBLE ENCLOSURE Note: Recommended clearances must be maintained. Tools Required: Thin (2.5mm diameter) flat Screw Driver, Adjustable spanner, Phillips head screw driver. GAS PIPING 1.
  • Page 19: Servicing Instructions

    SERVICING INSTRUCTIONS Appliances should be serviced at least annually and servicing must only be carried out by a Licensed Plumber or Authorised Person. Clean the Burner Ports and top with a Soft Brush. Inspect and clean all combustion air inlets, then replace the Burner ensuring it is firmly secured.
  • Page 20: Safe Appliance Locations

    SAFE APPLIANCE LOCATIONS This appliance shall only be used in an above ground open-air situation with natural ventilation, without stagnant areas, where gas leakage and products of combustion are rapidly dispersed by wind and natural convection. Any enclosure in which the appliance is used shall comply with the following: An enclosure with walls on all sides, but at least one permanent opening at ground level and no overhead cover.
  • Page 21 JOINING MODULES - ASSEMBLY INSTRUCTIONS Tools Required Standard Phillips-head screw driver. IMPORTANT Remove all packing and transit protection before assembly. CAUTION: Ensure no packing material is left in To join your kitchen together use 2 wing screws and nuts BBQ before lighting. as shown.
  • Page 22 SINK MODULE - BQ1091BL The sink module is flexible, follow the below steps to interchange it. Note: Marble not fitted.
  • Page 23 SINK MODULE - BQ1091BL Add the shelves (total 3pcs) into the cabinet locating the rear pins through the back panel and securing with the clips then loosen the screws at each of the front corners (see diagram below). Finally secure by tightening the screws.
  • Page 24 Insert the tap thread through the hole in the top and secure with the nut from underneath, inside the cabinet. See diagram below. Fittings required will depend on the situation and location of the BBQ; contact your local hardware store. Note: A plumber will be required to connect tap and drain to mains / household connections.
  • Page 25 SINK MODULE - BQ1091BL Add the marble top with 4 screws. Attach the infill panel with 3 screws.
  • Page 26 STORAGE MODULE - BQ1092BL Add the shelves (total 6pcs) into the cabinet in the same way as for the Sink Module. To take out shelves - Take out the clips at the back panel then loosen the screws at each of the front corners. Finally secure by tightening the screws.
  • Page 27 DRAWER MODULE - BQ1093BL To take out drawers - push one tab up, one tab down to release the drawer as shown.
  • Page 28 For any queries or assistance call Customer Service (Australia Only) 1300 174 876 Hours of operation: Monday to Friday 8am - 5pm EST Do not return to place of purchase. Keep your purchase receipt, this will be required to make any claims under the 12 month warranty.
