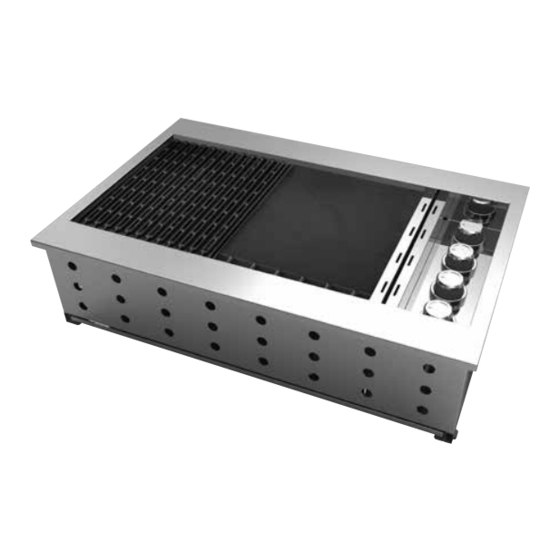

ORION DROP IN BBQ
Model NO. BQ10964B & BQ10964BNG
Premium #304 grade stainless steel construction
Rotary ignition
Easy to clean, heavy duty enamel coated cast
iron plate and grill
Convenient lid gives you extra bench space
when not in use
Stainless steel burners with individual controls
Total output of 54 MJ/h
Supplied fully assembled
Complete with hose and regulator
Operates on Propane or ULPG
Gas Certified to Australian Standards
Suitable for Natural Gas conversion
FOR YOUR SAFETY
If you smell gas:
1. Shut off the gas to the appliance.
2. Extinguish any open flame.
3. If odour continues, immediately call
your gas supplier.
Do not store or use gasoline or other flammable vapour
and liquids in the vicinity of this or any other appliance.
Gasmate® is a registered trademark of: Sitro Group Australia Pty Ltd www.gasmate.com.au
Aber Living Ltd - Hamilton, N.Z. www.gasmate.co.nz
Important: Retain these instructions for future use.
FOR OUTDOOR USE ONLY
WARNING
Improper installation, adjustment, alteration, service or
maintenance can cause injury or property damage.
Read the instructions thoroughly before installing or
servicing this equipment.
04206 08/20

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ORION BQ10964B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Gasmate ORION BQ10964B

Summary of Contents for Gasmate ORION BQ10964B

  • Page 1 Do not store or use gasoline or other flammable vapour and liquids in the vicinity of this or any other appliance. Gasmate® is a registered trademark of: Sitro Group Australia Pty Ltd www.gasmate.com.au Aber Living Ltd - Hamilton, N.Z. www.gasmate.co.nz Important: Retain these instructions for future use.

  • Page 2: General Information

    GENERAL INFORMATION Gas Installation Codes Gas Cylinder Use & Safety • Barbecues must be used in accordance with the This is a low pressure barbecue and must only be used installation requirements of your gas supply authority, with the hose and regulator supplied. Your barbecue is or the Australian Standard AS 5601.

  • Page 3: If You Smell Gas

    WARNING FOR YOUR SAFETY Failure to comply with these instructions could result • Do not store or use petrol or other flammable liquids in a fire or explosion which could cause serious bodily in the vicinity of this or any other appliance. injury, death or property damage.

  • Page 4: General Assembly

    GENERAL ASSEMBLY LIGHTING PROCEDURE Connecting & Disconnecting to the Gas Source Burner Operation & Ignition System Check 1. Turn the control knobs clockwise to “OFF” position. Familiarise yourself with the general information and safety guidelines located at the front of this manual. 2.

  • Page 5: Care And Maintenance

    CARE & MAINTENANCE Care & Maintenance Cleaning the Drip Tray As with all appliances, proper care and maintenance To avoid fat or grease dripping from the barbecue remove will keep them in top operating condition and prolong and empty the drip tray after each use. Wait until the drip their life.

  • Page 6: Cleaning The Burner

    CLEANING THE BURNER 6. Wire brush entire outer surface of burner to Follow these instructions to clean and/or replace burners. remove food residue and dirt. 1. Turn gas off at control knobs and gas cylinder. 7. Clean any blocked ports with a stiff wire such as 2.

  • Page 7: Natural Gas Conversion

    • NATURAL GAS APPLIANCE. TO BE INSTALLED ONLY BY AN AUTHORISED PERSON. • THE AUTHORISED PERSON WILL PROVIDE A CERTIFICATE OF COMPLIANCE. • A Gasmate NGC30 or NGC40 AGA approved natural gas pressure regulator must be installed in the pipeline and be set at 1 kPa.

  • Page 8: Safe Appliance Locations

    SAFE APPLIANCE LOCATIONS Within a partial enclosure that includes an overhead cover and no more than two walls This appliance shall only be used in an above ground (see Example 2 & 3). open-air situation with natural ventilation, without Within a partial enclosure that includes an overhead stagnant areas, where gas leakage and products of cover and more than two walls, the following will apply: combustion are rapidly dispersed by wind and natural...
