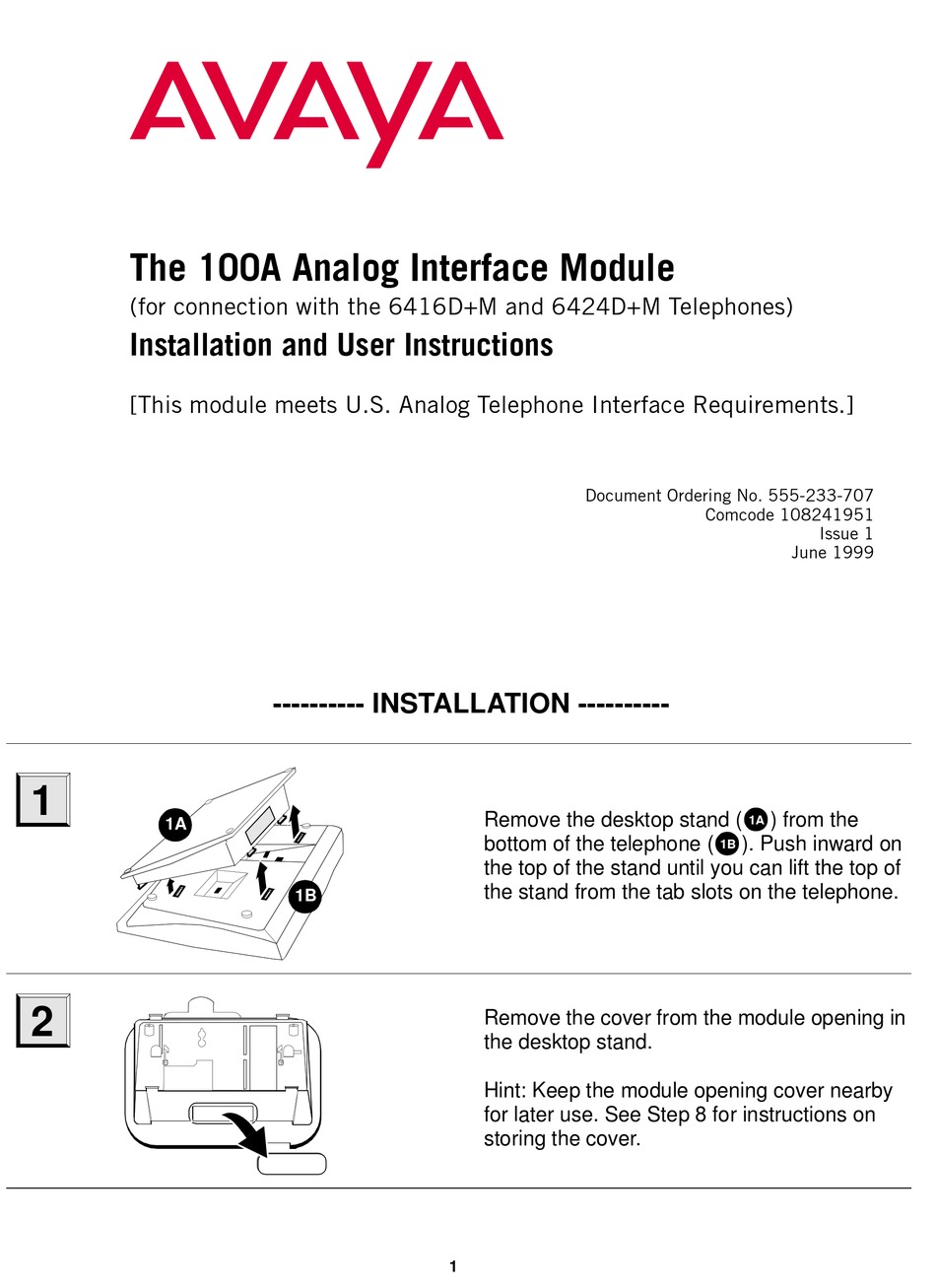

7KH $ $QDORJ ,QWHUIDFH 0RGXOH
(for connection with the 6416D+M and 6424D+M Telephones)
Installation and User Instructions
[This module meets U.S. Analog Telephone Interface Requirements.]
1
1A
2
2
---------- INSTALLATION ----------
2
1B
2
Document Ordering No. 555-233-707
Remove the desktop stand (
bottom of the telephone (
the top of the stand until you can lift the top of
the stand from the tab slots on the telephone.
Remove the cover from the module opening in
the desktop stand.
Hint: Keep the module opening cover nearby
for later use. See Step 8 for instructions on
storing the cover.
1
Comcode 108241951
Issue 1
June 1999
) from the
1A
). Push inward on
1B
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Avaya 100A
Summary of Contents for Avaya 100A
- Page 1 7KH $ $QDORJ ,QWHUIDFH 0RGXOH (for connection with the 6416D+M and 6424D+M Telephones) Installation and User Instructions [This module meets U.S. Analog Telephone Interface Requirements.] Document Ordering No. 555-233-707 Comcode 108241951 Issue 1 June 1999 ---------- INSTALLATION ---------- Remove the desktop stand ( ) from the bottom of the telephone ( ).
- Page 2 (the LINE jack on the power LINE supply) to a wall jack ( Hint: The 100A module requires auxiliary power, and you must use an 8-wire line cord from the telephone to the power supply. Replace the stand and module by lowering the desktop stand onto the bottom of the telephone.
- Page 3 When the second line is used, the telephone and the analog adjunct can use independent lines simultaneously. If the 100A module is installed on a 6416D+M or 6424D+M telephone connected to a DEFINITY switch Release 8.1 or later, you can set the switch on the left to Setting 1 or 2.
-
Page 4: Troubleshooting
Also note that only DTMF (Dual Tone Multi-Frequency) dialing is supported by the 100A module. • The 100A module will work ONLY if it has auxiliary power. When the auxiliary power source is turned on, the 100A module will automatically power up. - Page 5 (of the same type) into your modular wall jack. If the working telephone has dial tone, your own telephone is faulty. See your system manager. The following problems may occur with some external speakerphones connected to the 100A module. These problems may occur with other equipment as well.
-
Page 6: Important User Safety Instructions
To avoid the possibility of electric the time of printing, Avaya can assume no responsibility for shock, do not use them while you are wet. If you any errors. Changes or corrections to the information...
