ADJUSTABLE PARAMETERS

(Factory default settings are shown in bold italicised text)
Section Parameter
Input settings Low Oil Pressure warning
Low Oil Pressure shutdown
High Temperature warning
High Temperature shutdown
Low Temperature warning
Timers Mains transient delay
Generator transient delay
Start delay
Return delay
Preheat
Crank attempt
Crank rest
Safety delay
Overspeed overshoot
Warming up
Transfer delay
Cooling run
Fail to stop delay
Low battery volts delay
High battery volts delay
Mains (utility) Mains Low Voltage
Mains High Voltage
Mains Low Frequency
Mains High Frequency
Generator Generator Under voltage shutdown
Generator Under voltage prealarm
Generator Over voltage prealarm
Generator Over voltage shutdown
Generator Under frequency shutdown Gen low frequency shutdown
Generator Under frequency prealarm
Generator Over frequency prealarm
Generator Over frequency shutdown
Generator delayed overcurrent
Engine Underspeed (RPM) shutdown
Underspeed (RPM) warning
Overspeed (RPM) warning
Overspeed (RPM) shutdown
Overspeed overshoot %
Low DC Voltage
High DC Voltage
Charge Alternator Failure
Display Language
Display shows Values
Oil pressure pre-alarm 0-4bar (1.17bar)
Oil pressure shutdown 0-4bar (1.03bar)
Coolant temp pre-alarm
80-140°C (115°C)
Coolant temp shutdown
80-140°C (120°C)
Low Coolant temp 0-138°C (64°C)
Mains transient delay
0-30s (2s)
Gen transient delay 0 -30s (0s)
Start delay 0 -10h (5s)
Return delay 0 -5h (30s)
Preheat
0 -5m (0s)
Cranking time 0 -60s (10s)
Crank rest 0-60s (10s)
Safety on 0-60s (10s)
Overspeed overshoot
0-10s (2s)
Warm up 0-60m (0s)
Transfer delay 0-10m (0.7s)
Cooling 0-60m (60s)
Fail to stop
0-2m (30s)
Battery low delay 0-24h (60s)
Battery high delay 0-24h (60s)
Mains undervolt trip 50-360V ph-N (184V)
Mains overvolt trip
50-360V ph-N (276V)
Mains underfreq trip 0-75Hz (45Hz)
Mains overfreq trip 0-75Hz (55Hz)
Gen low voltage shutdown 50-360V ph-N (184V)
Gen low voltage prealarm
50-360V ph-N (196V)
Gen high voltage prealarm 50-360V ph-N (265V)
Gen high voltage shutdown 50-360V ph-N (276V)
0 -75Hz (40Hz)
Gen low frequency prealarm
0 -75Hz (42Hz)
Gen high frequency prealarm 0 -75Hz (55Hz)
Gen high frequency shutdown 0 -75Hz (57Hz)
Delayed high current 100-200% (100%)
Underspeed shutdown
0-6000RPM (1270)
Underspeed prealarm 0-6000RPM (1350)
Overspeed prealarm 0-6000RPM (1650)
Overspeed shutdown 0-6000RPM (1710)
Overspeed overshoot
0-10 (0%)
Battery low warning
0-40V (8V)
Battery high warning 0-40V (33V)
Charge fail warning 0-39V (6V)
ENGLISH , OTHER
Language
ADJUSTABLE PARAMETERS
(continued)
Section Parameter
Application Engine speed selection
Volts selection
AC System
Generator Full Load
Droop control
Frequency Adjust
LCD Contrast
Date/Time

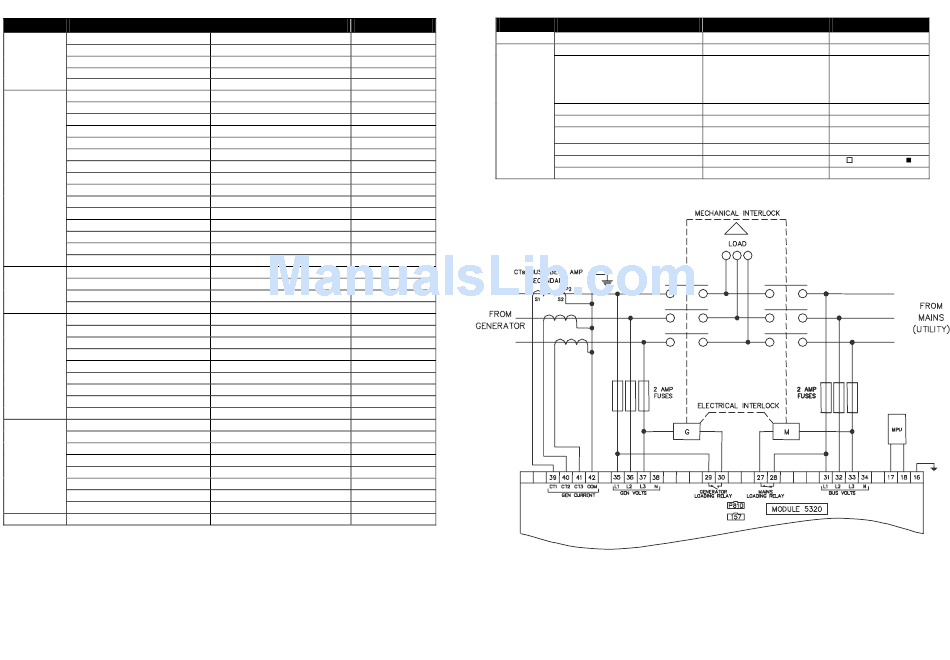

ALTERNATIVE AC WIRING

3 phase, 3 wire
For other AC systems please consult the
module operators manual
Display shows Values
Alternative Frequency
Disable, Enable
Alternative Voltage Disable, Enable
AC System
3 phase 4 wire
Single phase, 2 wire
3 phase, 3 wire
2 phase 3 wire (L1 & L2)
2 phase 3 wire (L1 & L3)
Generator full load 0-6000A(500A)
Droop
Disable, Enable
0% (0%-5%)
Droop
Compatible engine ECUs only
Frequency Adjust
Cummins CM850 only
Contrast |
Date and Time
dd mmm yyyy hh:mm
