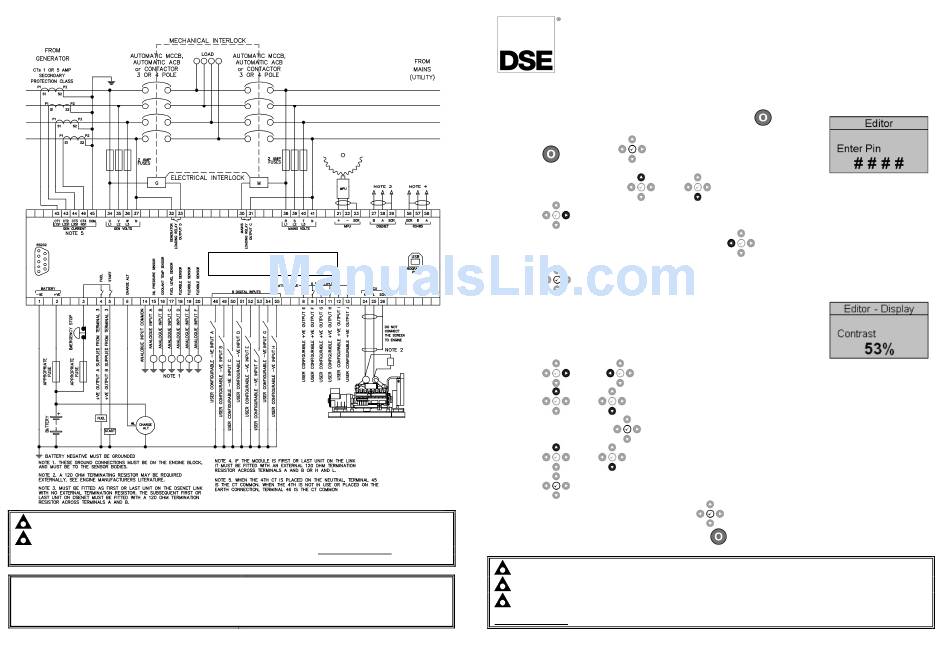

TYPICAL WIRING DIAGRAM
NOTE: Terminals 38, 39, 40 & 41 are not fitted to the DSE7310 MKII.
NOTE: A larger version of the Typical Wiring Diagram is available in the product's operator manual, refer to
DSE Publication: 057-253 DSE7310 MKII & DSE7320 MKII Operator Manual available from www.deepseaplc.com for more
information.
Deep Sea Electronics Plc.
Tel:+44 (0)1723 890099
Fax: +44 (0)1723 893303
Email: support@deepseaplc.com
Web: www.deepseaplc.com
DSE7310 MKII & DSE7320 MKII
Deep Sea Electronics Inc.
Tel: +1 (815) 316 8706
Fax: +1 (815) 316 8708
Email: support@deepseausa.com
Web: www.deepseausa.com
D E E P S E A E L E C T R O N I C S
DSE7310 MKII & DSE7320 MKII
Installation Instructions
ACCESSING THE MAIN CONFIGURATION EDITOR
Ensure the engine is at rest and the module is in STOP mode by pressing the
(Stop/Reset) button.
Press the
(Stop/Reset) and
(Tick) buttons simultaneously.
If a module security PIN has been set, the PIN number request is then shown:
The first '#' changes to '0'. Press the
(Up) or
Press the
(Right) button when the first digit is correctly entered. The digit previously entered now shows '#' for security.
Repeat this process for the other digits of the PIN number. Press the
digits.
When the
(Tick) button is pressed after editing the final PIN digit, the PIN is checked for validity. If the number is not correct,
the PIN must be re-entered.
If the PIN has been successfully entered (or the module PIN has not been enabled), the editor is
displayed:
EDITING A PARAMETER
Enter the editor as described above.
Press the
(Right) or
(Left) buttons to cycle to the section to view/change.
Press the
(Up) or
(Down) buttons to select the parameter to view/change within the currently selected section.
To edit the parameter, press the
(Tick) button to enter edit mode. The parameter begins to flash to indicate editing.
Press the
(Up) or
(Down) buttons to change the parameter to the required value.
Press the
(Tick) button to save the value. The parameter ceases flashing to indicate that it has been saved.
To exit the editor and save the changes, press and hold the
To exit the editor and not save the changes, press and hold the
NOTE: If the editor is left inactive for the duration of the LCD Page Timer, it is automatically exited to ensure security.
NOTE: The PIN number is automatically reset when the editor is exited (manually or automatically) to ensure security.
NOTE: Comprehensive module configuration is possible using the DSE Configuration Suite PC Software, refer to DSE
publication 057-243 DSE7310 MKII & DSE7320 MKII Configuraiton Suite PC Software Manual available from
www.deepseaplc.com.
053-181
ISSUE 4
(Down) button to adjust it to the correct value.
(Left) button to move back to adjust one of the previous
(Tick) button.
.
(Stop/Reset) button
