Deep Sea Electronics Plc 5320 Installation Instructions And Instructions For Use

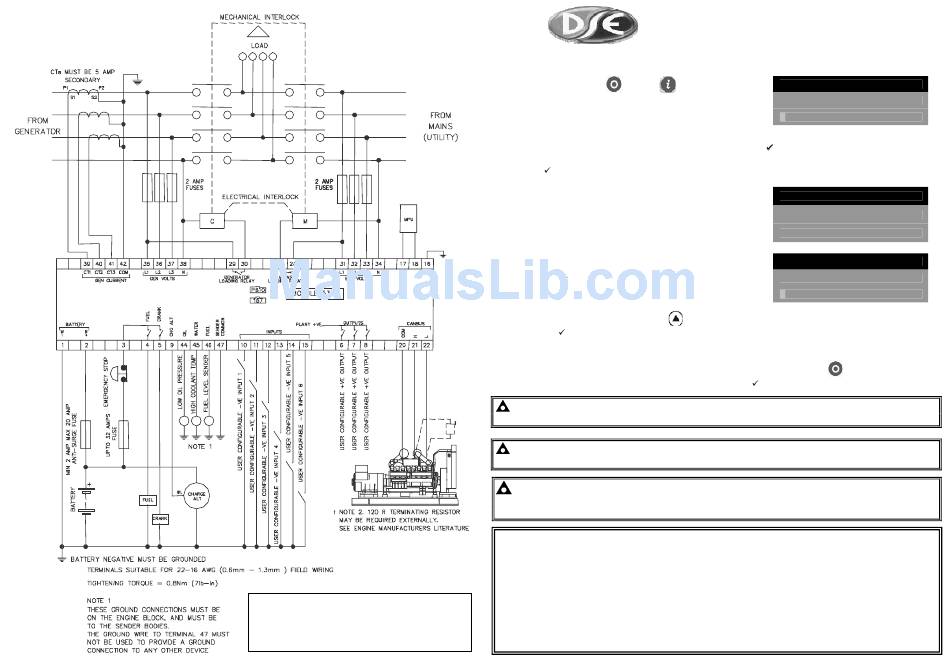

TYPICAL WIRING DIAGRAM

DIMENSIONS :
240mm x 172mm x 57mm
(9.5" x 6.8" x 2.25")
PANEL CUTOUT
: 220mm x 160mm
(8.7" x 6.3")
D E E P S E A E L E C T R O N I C S
5 3 2 0 I N S T A L L A T I O N I N S T R U C T I O N S

ACCESSING THE FRONT PANEL CONFIGURATION EDITOR

•
Press the Stop/Reset and Info
simultaneously
•
If a module security PIN has been set, the PIN number
request is then shown (The first * is flashing) :
Press + or – buttons to adjust it to the correct value. Press
•
Repeat this process for the other digits of the PIN number.
•
When is pressed after editing the final PIN digit, the PIN is checked for validity. If the number is not
correct, the editor is automatically exited. To retry you must re-enter the editor as described above.
•
If the PIN has been successfully entered (or the module PIN
has not been enabled) the first configurable parameter is
displayed :

EDITING A PARAMETER

•
Enter the editor as described above.
•
Press the + and – buttons to cycle to the parameter you wish
to change.
•
Press the button to enter edit mode. When in edit mode
(indicated by the flashing parameter) pressing the + and –
buttons will adjust the parameter to the desired value.
•
For date and time editing only: press
•
Press the button to 'save' the value. The value will stop flashing to confirm that it has been saved.
•
To select another value to edit, press the + button. Continuing to press the + and – buttons will cycle
through the adjustable parameters as shown overleaf.
•
To exit the front panel configuration editor at any time, press the Stop/Reset
have saved any changes you have made by pressing the
NOTE:- When the editor is visible, it is automatically exited after 5 minutes of inactivity to
ensure security.
NOTE:- The PIN number is automatically reset when the editor is exited (manually or
automatically) to ensure security.
NOTE:- More comprehensive module configuration is possible using the 5xxx series PC
configuration software in conjunction with the P810 PC interface. Please contact us for further
details.
Deep Sea Electronics Plc.
Highfield House, Hunmanby Industrial Estate,
North Yorkshire. YO14 0PH.
ENGLAND
Tel:+44 (0)1723 890099.
Fax: +44 (0)1723 893303.
LO CALL (from UK BT landlines) :
Telephone 0845 260 8900. Fax 0845 260 8901
Email: sales@deepseaplc.com
Web: www.deepseaplc.com
CONFIGURATION
buttons
ENTER PIN
****
when the first digit is correctly entered.
CONFIGURATION
Oil pressure pre-alarm
2bar 30PSI 200kPa
CONFIGURATION
Oil pressure pre-alarm
2bar 30PSI 200kPa
to select between day, month, year, hours and minutes.
button. Ensure you
button first.
Deep Sea Electronics inc.
3230 Williams Avenue
Rockford, Illinois 61101-2668,
U.S.A.
Phone: +1 (815) 316-8706.
Fax: +1 (815) 316- 8708
TOLL FREE (USA only) : Tel: 1 866 636 9703
Email: dsesales@deepseausa.com
Web: www.deepseausa.com
053-014
ISSUE4
