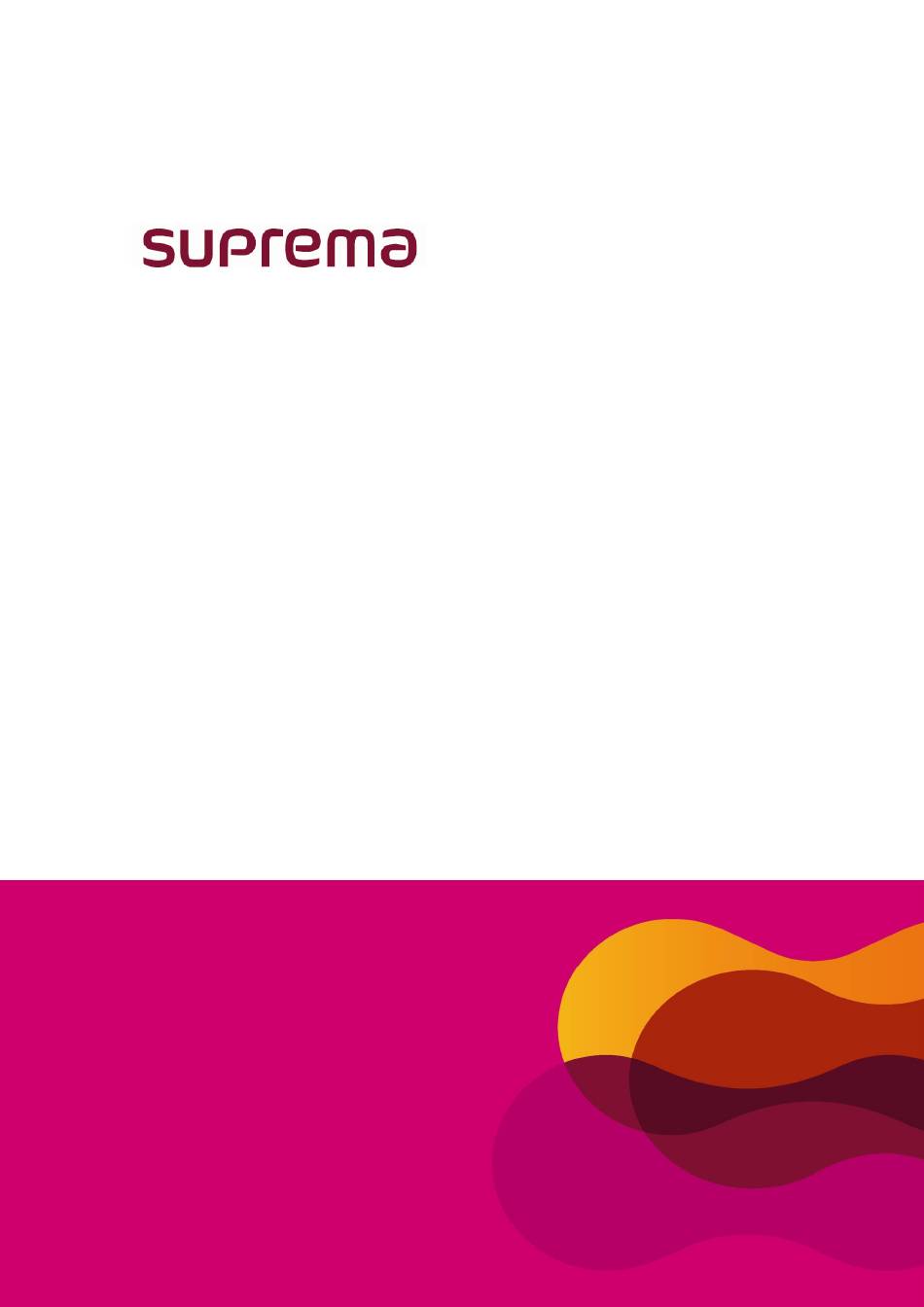

- Page 1 RealPass-F Multi-functional ID Card & Passport Reader User Manual Version 1.0...

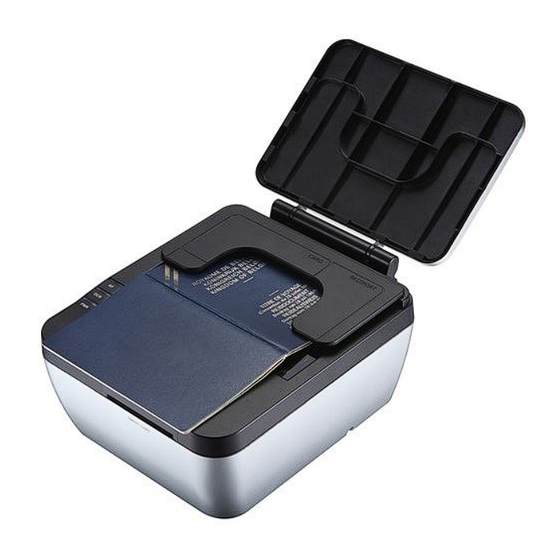

- Page 2 Introduction RealPass-F RealPass-F is RealPass-F is a multi-functional ID document and passport reader that can read variety of data such as OCR, photos, characters, barcodes, contact and contactless smart chips. As an e-passport reader, RealPass-F provides full-page, one-step reading of visual data page and RF chip data of ICAO standard passports.
-
Page 4: Specifications
Features • Compact size and ergonomic design • Powered from external power supply. • Flexible OCR to read various documents type • ISO 14443 A/B contactless RFID, ISO7816 contact card. • Reads 1D and 2D barcodes. • Multi-color LED and beep sound for intuitive user interface •... -
Page 5: Device Components
Device Components Sample Passport RealPass-F External Power 5V DC Adaptor... -
Page 6: Top View
Exterior Top View 2.1.1 Indication LED (1) RF - Green: Lighted when RF reading succeeded. - Red: Lighted when RF reading failed. - Blue: Lighted when RF recognition is operating. (2) OCR - Green: Lighted when OCR reading is succeeded. - Red: Lighted when OCR reading failed. -
Page 7: Device Label
Device Label • Provides basic information. • Includes interface, power specifications, certification marking, and device number... -
Page 8: Device Driver Installation
Installation Device driver Installation 3.1.1 Installation program check and execution (x86 / x64) Execute “RealPass_Driver(x86).exe” for x86 system or “RealPass_Driver(amd64)_WHQL.exe” for x64 system. 3.1.2 Start InstallShield Wizard Click “Next”... - Page 9 3.1.3 Customer Information Enter your information and Click “Next” 3.1.4 Select the setup type Select “Complete” and Click “Next”...
- Page 10 3.1.5 Ready to Install the Program Click “Install” 3.1.6 Completion of driver installation Click “Finish”...
- Page 11 3.1.7 Driver Software Installation Connect the device’s USB cable to a PC and Driver is installed automatically. 3.1.8 Check using Device Manager.
-
Page 12: Using Software
Using Software 3.2.1 Initial Screen ① ② ③ ④ ① Tabs ② Reading Result Panel ③ Log Panel ④ Control Panel 3.2.2 Tabs 1) OCR(MRZ) : VIZ reading results are displayed on the Panel.(Photo, MRZ) 2) RFID(e-Passport) : RF reading results are displayed on the Panel (DG1, DG2) 3) White Image : The image scanned by White LED is displayed on the Panel 4) IR Image : The Image scanned by IR light is displayed on the Panel. - Page 13 3.2.3 Control Panel 1) Device Open Button : Connect application to the device. 2) Device Close Button : Disconnect application from the device. 3) Auto Start Button : Start the automatic document detection. 4) Auto Stop Button : Stop the automatic document detection. 3.2.4 OCR(MRZ) Reading Result...
- Page 14 3.2.5 RFID(e-Passport) Reading Result 3.2.6 White Image...
