GREISINGER GDH 01 AN Operating Manual

H18.0.0x.6C-01

Specification:

Measuring range:
Overload:
(no destruction
or new calibration of sensor)
Resolution:
Accuracy (device):
(at nominal temperature 25°C)
Drift (device):
Sensor: (relative pressure)
Sensor: (absolute pressure)
Application area:
Sensor accuracy:
(typ.)
hysteresis and linearity:
temperature influence 0 - 50°C: ± 0.4% full scale
with option „double accuracy":
Nominal temperature:
Operating temperature:
Relative humidity:
Storage temperature:
Display:
Analog output:
Power supply:
Power consumption:
Mains connection:
Low battery warning:
Dimensions (device):
Dimensions (sensor):
Weight:
EMC:
GREISINGER
Operating Manual for
GDH __ AN
GDH 01 AN GDH 07 AN
manometer manometer
0 ... 1999 Pa rel. 0.0 ... 199.9 mbar rel. 0 ... 1300 mbar abs.
(0.00 ... 19.99 mbar rel.)
max. 100 mbar max. 1 bar
1 Pa (0.01 mbar) 0.1 mbar
1 Pa ±1 digit 0.1 mbar ±1 digit
0.01 % / K 0.01 % / K
piezoresistive relative pressure sensor, externally mounted in plastic case, 2 connection terminals
for plastic tube 6 x 1 mm (4 mm i.d.), approx. 1 m of 4-wire PVC connecting cable with 4-pin
mini DIN plug.
piezoresistive absolute pressure sensor, externally mounted in plastic case, connection terminal for
plastic tube 6 x 1 mm (4 mm i.d.), approx. 1 m of 4-wire PVC connecting cable with 4-pin mini DIN
plug.
Sensor suitable for non-corrosive and non-ionising gases and liquids (do not use for water - air
cushion or hydrophobic filter)
± 0.5% full scale ± 0.2% full scale
± 0.4% full scale
±0.1%f.s. / ±0.2% f.s. ±0.1% f.s. / ±0.2% f.s. ±0.1% f.s. / ±0.2% f.s. ±0.1% f.s. / ±0.2% f.s.
25°C
device: 0 to 50°C
sensor: -40 to 85°C (temperature in sensor is compensated from 0 to 70° C)
0 to 80 %RH (non-condensing)
-10 to 70°C
3½ digit LCD-display , approx. 13 mm high
0 - 1 V DC equiv. 0 to 2000 digit
connection over 3.5 mm dia jack connector (plug included in scope of supply)
9V battery, type JEC 6F22 (in scope of supply)
approx. 5 mA
2.5 mm socket for external 10 - 12V supply voltage. (suitable power pack: GNG10)
Battery will be automatically disconnected as soon as power pack is connected.
"BAT" displayed automatically in case of low battery
approx. 150 x 86 x 30 mm (H x W x D), impact resistant ABS plastic housing
with integrated pop-up clip for table-top or suspended use.
approx. 67.5 x 26 x 15 mm (H x W x D), with suspension eye
approx. 340g (device ready for operation)
The device corresponds to the essential protection ratings established in the Regulations of the
Council for the Approximation of Legislation for the member countries regarding electromagnetic
compatibility (89/336/EWG).
Additional error: <1%
GDH 12 AN GDH 13 AN
vakuum-/barometer manometer
0 ... 1999 mbar rel.
max. 2 bar abs. max. 4 bar
1 mbar 1 mbar
1 mbar ±1 digit 1 mbar ±1 digit
0.01 % / K 0.01 % / K
± 0.2% full scale ± 0.2% full scale
± 0.4% full scale ± 0.4% full scale
electronic GmbH
page 1 of 3

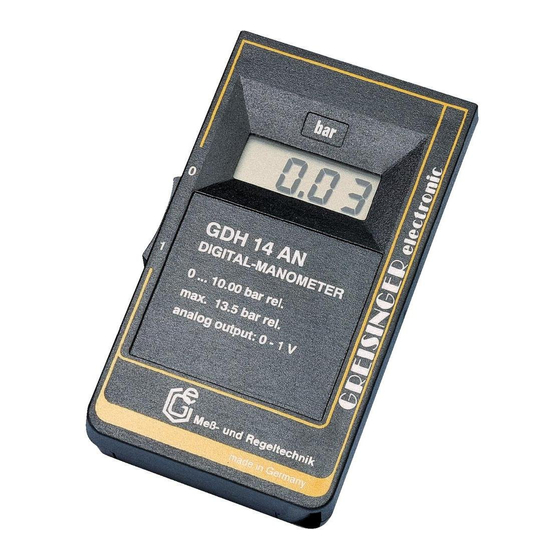

GDH 14 AN
manometer
0.00 ... 10.00 bar rel.
max. 10.34 bar
0.01 bar
0.01 bar ±1 digit
0.01 % / K
± 0.2% full scale
± 0.4% full scale
