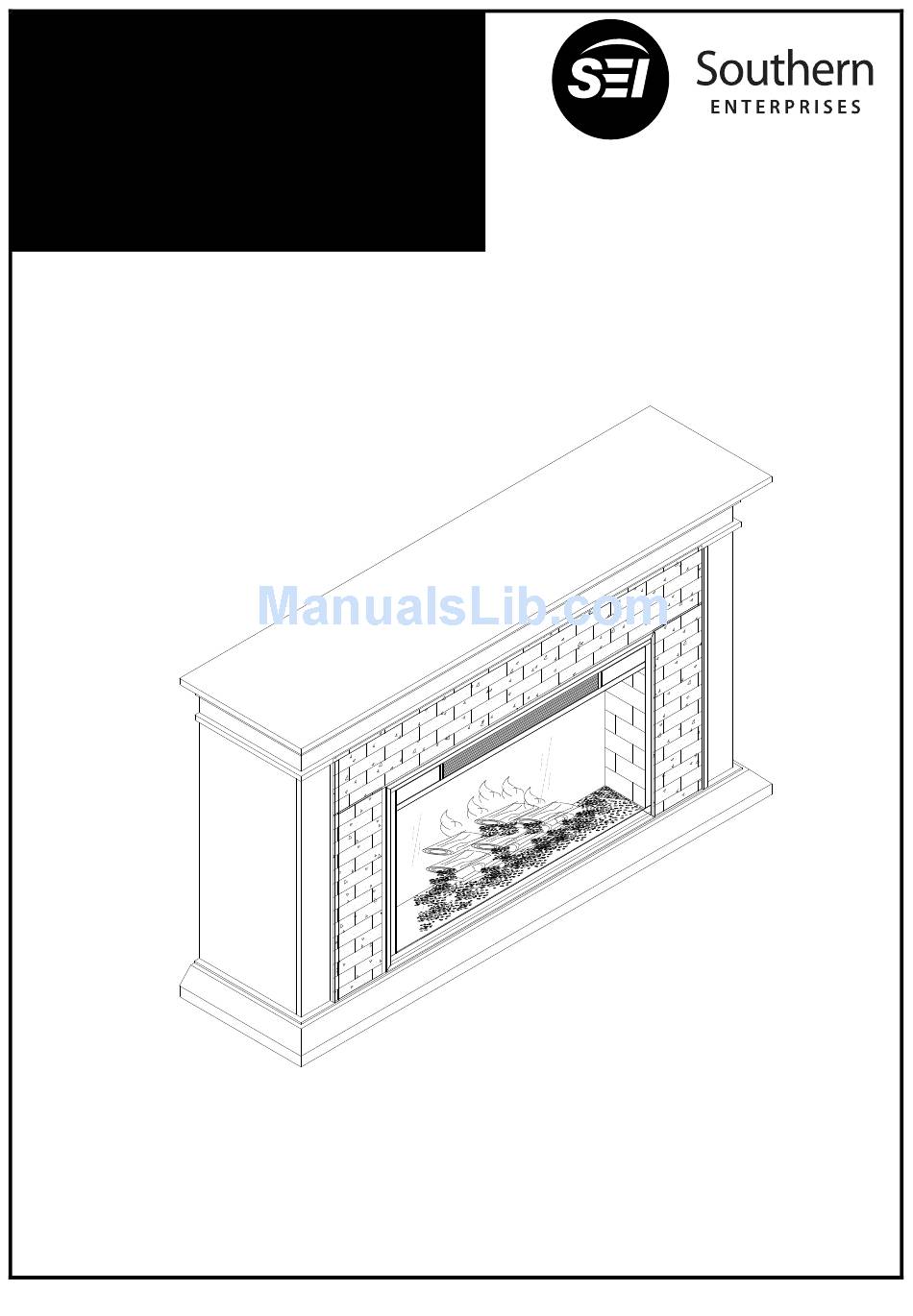

- Page 1 Canyon Heights Fireplace FA902300TX- Whiskey Maple For assistance with assembly contact: Southern Enterprises Inc. Assembly Instructions Customer Service 1-800-633-5096 service@seidal.com www.seidal.com...
- Page 2 PACKAGE CONTENTS PART DESCRIPTION QUANTITY PART DESCRIPTION QUANTITY Top Panel Middle Front Panel Bottom Panel Left Front Panel Side Panel Right Front Panel Left Front Side Panel Wood Blocks Firebox Right Front Side Panel (shipped in a separate carton)
- Page 3 HARDWARE CONTENTS Cam Bolt Wood Dowel Cam Lock Flat Head Long Screw Qty:24 Qty:31 Qty:31 Qty:4 Phillips screwdriver (not included)
- Page 4 ASSEMBLY INSTRUCTIONS 1. Insert Cam Locks (C) into corresponding holes on Middle Front Panel (6). Screw Cam Bolts (A) and insert Wood Dowels (B) into corresponding holes on Left Front Panel (7) and Right Front Panel (8). Attach Left Front Panel (7) and Right Front Panel (8) to Middle Front Panel (6) by inserting Wood Dowels (B) and Cam Bolts (A) into corresponding holes until Left Front Panel (7),...
- Page 5 ASSEMBLY INSTRUCTIONS 3. Insert Cam Locks (C) into the corresponding holes on the assembled unit from Step 1. Screw Cam Bolts (A) and insert Wood Dowels (B) into the corresponding holes on the assembled unit from Step 2. Attach the assembled unit from Step 1 to the assembled unit from Step 2 by inserting Wood Dowels (B) and Cam Bolts (A) into corresponding holes until the assembled units meet.
- Page 6 ASSEMBLY INSTRUCTIONS 5. Insert Cam Locks (C) into corresponding holes on assembled unit from Step 4. Screw Cam Bolt (A) and insert Wood Dowels (B) into corresponding holes on Top Panel (1). Attach Top Panel (1) to the assembled unit from Step 4 by insert Wood Dowels (B) and Cam Bolts (A) into corresponding holes until Top Panel (1) and the assembled unit from Step 4 meet.
- Page 7 Parts Replacement Form Customer Information Name Address City/State/Zip Code Phone Number Please indicate where you purchased this item: Store/Website/Catalog Please indicate color/size/style number: Style No Parts Letter Parts Description Quantity Needed Please examine this product carefully upon immediate receipt. Any request for missing parts or damage replacement must be received within 90 days of your receipt of the product.
