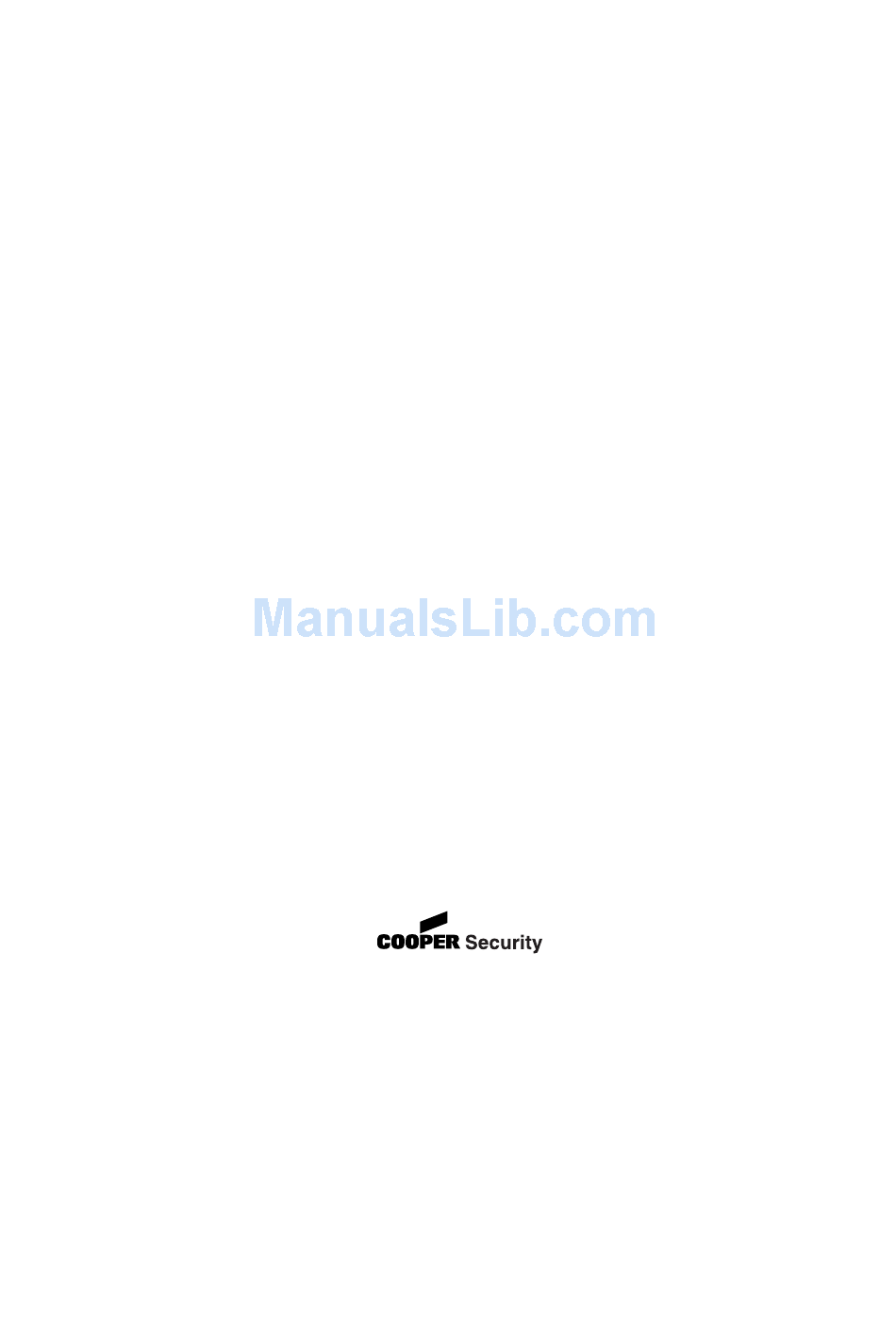

  • Page 1 M-Series Manager's Manual...
  • Page 2 © Cooper Security Limited 2007 Every effort has been made to ensure that the contents of this book are correct. However, neither the authors nor Cooper Security Limited accept any liability for loss or damage caused or alleged to be caused directly or indirectly by this book.

  • Page 3: Table Of Contents

    Contents Preface......................2 Introduction........................2 Accessing the User Menus....................3 Options in User Menu 1 ..................4 Option 1-1: Testing.....................4 Option 1-2: Omitting Zones..................8 Option 1-3: Shunting 24hr Zones ................9 Option 1-4: Changing your User Code ..............10 Option 1-5: Enabling Chimes...................11 Option 1-6: Setting the Speaker Volume ..............12 Option 1-7: Customising Text ...................13 Option 1-8: Setting Up Silent Set Wards ..............14 Option 1-9: Configuring Engineer Access ..............15...

  • Page 4: Preface

    Preface Introduction About your Alarm Your intruder alarm system provides System comprehensive and flexible protection for domestic or commercial premises. The system comprises several components, such as keypads and sensors, linked to a control unit, which is concealed from view but accessible for maintenance.

  • Page 5: Accessing The User Menus

    Accessing the User Menus To access the user menus: 1. Enter your user code or present your BANNER TEXT proximity tag. 17:30 Sun 01 JAN 2. Press [. 0=Set Selection [Ent]=User Level 3. Press [ if you want to enter User Menu User Level 1 Press [Ent]or[2] 1.

  • Page 6: Options In User Menu 1

    Options in User Menu 1 Option 1-1: Testing Option 1-1-1: This option enables you to test the internal Testing the Bell sounder, strobe, external sounder, and telecommands. 1. Press [ to select this option. User 1 Menu 1 Test Menu 2.
  • Page 7 Option 1-1-2: This option enables you to check that zones Performing a Walk Test are operating correctly. You can test only those wards that you have access to. Each zone tested is added (once) to the event log, which you can review using User option 2-9 (page 37).
  • Page 8 Option 1-1-3: This option enables you to check if any Telecommand Batteries telecommands have reported a low battery. 1. Press [ to select this option. User 1 Menu 1 Test Menu 2. Use | or ¬, or press 3 to select Test Menu 3 Telecmd Batts Telecommand Batts, then press [.
  • Page 9 Option 1-1-4: This option enables you to test a Telecommand Test telecommand, or identify an unknown telecommand. 1. Press [ to select this option. User 1 Menu 1 Test Menu 2. Use | or ¬, or press 4 to select Test Menu Telecmd Test Telecmd Test, then press [.

  • Page 10: Option 1-2: Omitting Zones

    Option 1-2: Omitting Zones Sometimes you may need to omit zones when you set your wards, e.g. if a zone is to remain occupied while the rest of the ward is set. This option enables you to select which zones to omit. When the system is unset, any selections made here are cleared.

  • Page 11: Option 1-3: Shunting 24Hr Zones

    Option 1-3: Shunting 24hr Zones This option enables you to shunt (disable) all 24 Hour zones in selected wards that have been set up as shuntable in Engineer option 1-1. Shunting disables a zone and the shuntable attribute identifies whether this is permissible.

  • Page 12: Option 1-4: Changing Your User Code

    Option 1-4: Changing your User Code This option enables you to change your own user code. To make changes for other users, refer to page 21. 1. Press [ to select this option. User 1 Menu 4 Change Code 2. Enter your new code, Enter new code..

  • Page 13: Option 1-5: Enabling Chimes

    Option 1-5: Enabling Chimes This option enables you to select which of your wards (if any) use the chime feature. In a ward with this feature enabled, zones that have a Chime Tone attribute (User option 2- 5) and are in a selected ward will generate a chime tone when activated.

  • Page 14: Option 1-6: Setting The Speaker Volume

    Option 1-6: Setting the Speaker Volume This option enables you to adjust the volume level of the extension loudspeaker connected to the control unit. 1. Press [ to select this option and display User 1 Menu 6 Volume Control the current setting. 2.

  • Page 15: Option 1-7: Customising Text

    Option 1-7: Customising Text This option enables you to edit the following text strings: Banner Text This message is shown on the top line of the display when the keypad is in normal "standby" mode (i.e. waiting for a code to be entered).

  • Page 16: Option 1-8: Setting Up Silent Set Wards

    Option 1-8: Setting Up Silent Set Wards This option enables you to select which of your wards (if any) set silently, without emitting an exit tone, when the system is set normally. The wards remain enabled for silent setting until you deselect them in this option. Pressing 8 when the display shows "0=SET WARDS"...

  • Page 17: Option 1-9: Configuring Engineer Access

    Option 1-9: Configuring Engineer Access This option enables you to define a period during which an engineer can log into the alarm system. Once the period has expired, the engineer can continue working if logged in but will not be able to log in again. The period starts from the time you set it and can be four hours or five minutes.

  • Page 18: Option 1-0: Accessing The Set/Unset Menu

    Option 1-0: Accessing the Set/Unset Menu The set/unset menu is displayed whenever you enter your user code or present your proximity tag. This option enables you to access this menu from User Menu 1. The Set/Unset Menu has several options, but only relevant ones are shown, e.g.

  • Page 19: Options In User Menu 2

    Options in User Menu 2 Option 2-1: Viewing Zones This option enables you to view the status of each zone, which may be: Healthy The normal status of a zone (e.g. a door is closed or a detector inactive). Active The alarm status of a zone (e.g. a door is open or a detector is triggered).

  • Page 20: Option 2-2: Setting The Time And Date

    Option 2-2: Setting the Time and Date This option enables you to set the system time and date. The system automatically advances/retards the time by one hour at 1 am GMT on the standard summer/winter changeover dates. 1. Press [ to select this option. User 2 Menu 2 Time and Date 2.

  • Page 21: Option 2-3: Setting Up Shunt Groups

    Option 2-3: Setting Up Shunt Groups Shunt groups provide a simple way to isolate zones until further notice. Each shunt group can contain up to eight zones, and each group can be allocated to a "Shunt" user code. When the code is first entered, the zones are isolated.
  • Page 22 You can view any of the eight possible zones assigned to the group by using | or ¬, or pressing the hot key (1 to 8). If you want to delete the displayed zone from the shunt group, press r, then ]. You can delete more than one zone by scrolling to each in turn and pressing r, then finally pressing ].

  • Page 23: Option 2-4: Setting Up User Codes

    Option 2-4: Setting Up User Codes This option allows you to define users to operate the alarm system. When setting up a user, you need to specify: A user code. This is the code that the • user enters at keypads (e.g. to set or unset the system).
  • Page 24 About the User Types The following user types are available. (Press the key shown next to the type name to select a type directly.) Users of this type have access to all user Manager 1 menus and options. They can set and unset assigned wards from any keypad.
  • Page 25 When unsetting, all associated wards are Easy Set 5 unset and the keypad displays no options. The system sets with no options, providing auto-set wards are set up. The user can set/unset from any keypad. You must set up wards assigned to an Easy Set user as auto-set and auto- unset, see page 26 onwards.
  • Page 26 Allow setting in Engineer option 1-9-1-24 must be set to YES. Users of this type have no access to user Access 9 menus and cannot set or unset the system. Entering a user code of this type temporarily activates outputs of type "Code Accepted", Access or "Access Code", which could be used to operate electric door strikes or similar mechanisms.
  • Page 27 Option 2-4-1: This option enables you to set up or modify Configuring the User users. For each user, you specify Codes information such as the user type and the wards the user has access to. 1. Press [ to select this option. User 2 Menu 4 Edit Codes 2.
  • Page 28 6. Use the numeric keys to select the User 05 wards Ward > 1*..wards you want the user to have access to, then press [. Any ward numbers shown will be allocated to the user. (A “*” indicates that the ward will not be allocated, and “.”...
  • Page 29 Option 2-4-2: This option enables you to specify a name Defining User Names for each user. When viewing the event log (page 37), pressing r toggles between displaying user number and user name for appropriate log entries. 1. Press [ to select this option. User 2 Menu 4 Edit Codes 2.
  • Page 30 4. Select the User Menu 1 options to which Menu 1 Options:- > 0123456789 the user should have access, then press [. Pressing 0 to 9 selects (option number displayed) and deselects (“*” displayed) options. The options are: 0 = Set/Unset Menu 1 = Test Menu 2 = Omit Zones 3 = Shunt 24hr Zones...
  • Page 31 Use this option to allocate telecommand or Programming PA buttons to individual wards. Telecommands Cooper Security Limited recommend that you take advice from your alarm installer before modifying any of these options. 1. Press [ to select this option. User 2 Menu 4 Edit Codes 2.
  • Page 32 allocated ward) only when in range of a specific MRNode receiver . OR: Unused: The control unit will ignore any telecommand programmed as Unused, even though it may still be learned by an MRNode. (Hint: Use this option to disable telecommands that have been lost.) Press [ to save your changes.
  • Page 33 9. Press [ to select this option. Telecmd 1 ^elecommand Name Use the text editing keys (page 48) to edit the telecommand name, then press [ to save your changes.

  • Page 34: Option 2-5: Setting Up Chime Zones

    Option 2-5: Setting Up Chime Zones This option enables you to select which zones generate a chime if activated when unset, or to switch chimes off. The chime occurs only at keypads and extension loudspeakers assigned to the same ward(s) as the zone.

  • Page 35: Option 2-6: Using Communications

    Option 2-6: Using Communications Option 2-6-1: You can use this option to initiate a Starting a Call Back connection over the telephone line to a remote site that is running the Downloader software . Once the communication link is established, the remote site can upload data and change settings in the control panel.
  • Page 36 Option 2-6-2: This option allows you to define or edit up to Editing the Call-Back four telephone numbers for communication Numbers with a PC running the Downloader software 1. Press [ to select this option. User 2 Menu 6 Communications 2.

  • Page 37: Option 2-7: Assigning Zones To Wards

    Option 2-7: Assigning Zones to Wards The assignment of zones to wards is usually carried out by your alarm company. Change these assignments only if you have detailed knowledge of your alarm system and the way that wards are used in it. You can assign zones only to wards assigned to your user code.

  • Page 38: Option 2-8: Setting Up Ward Groups

    Option 2-8: Setting Up Ward Groups This option enables you to allocate wards to groups, which you can then set or unset with a single operation (as described in the User's Guide). You can select only those wards that are assigned to your user code. You can name each ward group using User option 1-7 (page 13).

  • Page 39: Option 2-9: Using The Log

    Option 2-9: Using the Log Option 2-9-1: This option enables you view the contents of Viewing the Log the system log. The log contains the date and time of system events, such as wards being unset, zones omitted, duress code activations and communications problems.
  • Page 40 Option 2-9-2: If a printer is connected to the control unit, Printing the Log you can print some or all of the events recorded in the log. 1. Press [ to select this option. User 2 Menu 9 2. Use | or ¬, or press 2 to select Print Log Functions Print Log Log, then press [.
  • Page 41 Option 2-9-3: You can use this option to view the content Viewing the Access Log of the access log, which stores every use of a user code of type Access (which is used to open doors). 1. Press [ to select this option. User 2 Menu 9 2.

  • Page 42: Option 2-0: Setting Up Timers

    Option 2-0: Setting Up Timers Option 2-0-1: This option enables you to define up to Setting Up Time Switches three time switches, which can be used to switch outputs of the alarm system on or off at selected times. The outputs may, for example, control internal or external lighting or other electrical equipment.
  • Page 43 You can manually override a time switch by pressing 0, then pressing r to toggle its current status. 5. You will see a screen similar to the one Time Switch shown opposite if you have chosen to On (1) >00:00 edit an on/off time.
  • Page 44 Option 2-0-2: Use this option to make the control unit set Setting Up Auto-Set or unset selected wards at specified times. Timers The control unit has three auto-set timers. You can allocate each timer to one or more wards, which the control unit sets and unsets at the times you chose.
  • Page 45 3. Use | or ¬, or press a hot key (1 to Auto Set 3) to select the auto-set timer to edit, then press [. (The display shows the timer number at the top right.) Each auto-set timer has three events. The Auto Set display shows the event number in brackets On (1)
  • Page 46 When editing the days press 1 to 7 to 1 Operates On :- > ....toggle days on/off, then press [. On the days screen the event number is in the top-left corner. (Note that day 1=Sunday.) 6. Repeat steps 4 and 5 for each event you wish to program.
  • Page 47 Option 2-0-3: Use this option to lock out one or more users Setting Up Code-Locks at specified times. Timers The control unit has three code-lock timers. You can allocate each timer to up to ten users. Each timer prevents the system from accepting the allocated users' codes at the specified times.
  • Page 48 4. To select the on/off time or days of operation to edit, EITHER Use | or ¬ then press [. Press a hot key (1 to 9) then press [. The table below shows the hot keys for each item: Event 1 2 3 4 5 6...
  • Page 49 You can now: Continue with step 6 to specify other • users as necessary. Press ] and continue from step 4. • Press ] twice to exit. •...

  • Page 50: Text Keys

    Text Keys The following table shows how to obtain characters when entering text at the keypad. For example, press 2 twice to obtain the "B" character. Once you have chosen the character you require, press | to move the cursor to the right to edit the next character. The ¬ key moves the cursor to the left.

  • Page 51: Zone Numbering

    Zone Numbering Each zone has a unique 4-digit number. The meaning of the number is as follows: For all zones except those using iD Plus biscuits (on an M800iD Plus): The first digit is the network number. This is the network number of •...

  • Page 52: Radio Systems

    Radio Systems You security system may be fitted with a radio receiver (called an MRNode) that ‘listens’ for signals from wire-free detectors and other transmitters, and reports their activity to the control unit. The control unit treats the wire free detectors as standard zones.
  • Page 53 any programming of PA buttons, but you can give them a name and allocate them to individual wards. Telecommand Buttons The 722r, 723r, 727r and 728r telecommands have four buttons that you may program for separate functions. The control unit identifies each button on a telecommand by a number.

  • Page 54: Log Events

    Log Events Event Description --- NO EVENT --- Not used ### LECS or REMS The number of LEC or keypads logged on to system after a re-learn ### NODE R# ADD Keypad added to MNode/XNode. First # is the network No. Next ## is the device No. R# is the keypad No.
  • Page 55 Event Description BATTERY MISSING Battery is not connected BATTERY RESTORE Battery restored to healthy condition BEAM PAIR #### First activation of a beam pair zone number #### BELL BOX TAMPER Not used BELL FUSE Bell fuse tripped BELL TAMP OMIT Bell tamper omitted after confirmation timer has expired BELL TESTED:- Bell tested for wards...
  • Page 56 Event Description KEYSWITCH ### Keyswitch zone #### activated LOCAL ON LINE Local connection with Downloader LOCAL SERV CALL Local connection with Downloader LOCAL SERV END Not used LOCKSET #### ON Lock set zone #### activated LOCKSET #### OFF Lock set zone #### deactivated LOCKSET WARD ON Lockset for ward enabled MAIN POWER ON...
  • Page 57 Event Description SET EXT L.FAULT System set with external line fault SET FAIL #### Set fail caused by zone #### SET FAIL WARDS:- Set fail for wards SET GENERAL FLT System set with a general fault present SET NO ACTIVITY Not used SET PSTN FAULT System set with a line fault present...
  • Page 58 Event Description WARDS UNLOCKED:- Wards unlocked via security key zone WINTER CHANGED Not used WINTER TIME SET Time changed at Winter changeover date WLK TST FAIL LOG Not used ZONE TESTED #### Zone number #### tested during walk test routine...

  • Page 59: System Records

    System Records General System Details Wards Entry Time Exit Time Setting Mode Bell Delay Bell Duration Wards Entry Time Exit Time Setting Mode Bell Delay Bell Duration Remote Servicing (Downloading) Site Telephone No Details User Authorised Y/N...
  • Page 60 Ward Groups Group Name Wards Group Name Wards Shunt Groups Group Zone 1 Zone 2 Zone 3 Zone 4 Zone 5 Zone 6 Zone 7 Zone 8 Time Switch 1 Timer On at Off at Mon Tue Wed Thu Time Switch 2 Timer On at Off at...
  • Page 61 Auto-Set Timer 1 Timer Set at Unset at Mon Tue Wed Thu Set Wards: Auto-Set Timer 2 Timer Set at Unset at Mon Tue Wed Thu Set Wards: Auto-Set Timer 3 Timer Set at Unset at Mon Tue Wed Thu Set Wards: Code Lock Timer Timer...

  • Page 62: User Details

    User Details Name Type Wards Auto-set Auto-Unset Manager...

  • Page 63: Zone Details

    Zone Details Zone No. Location Chime Y/N Wards...

  • Page 64: Service Record

    Service Record Date Engineer Action...

  • Page 65: Installer Information

    Installer Information Installation Engineer: Installation Company: Address: Telephone Number: Reset Message: Alarm Receiving Centre: Telephone Number: Remote Reset Message:...

  • Page 66: Quick Reference

    Quick Reference 1. At the keypad, enter your user code or BANNER TEXT 17:30 Sun 01 JAN present your proximity tag. 2. Press [ to access the user menus. 0=Set Selection [Ent]=User Level 3. Press | or ¬ to display user menu 1 or User Level 1 Press [Ent]or[2] 2, then [ to select that menu.
  • Page 67 NOTES...
  • Page 68 497062 Issue 4...
