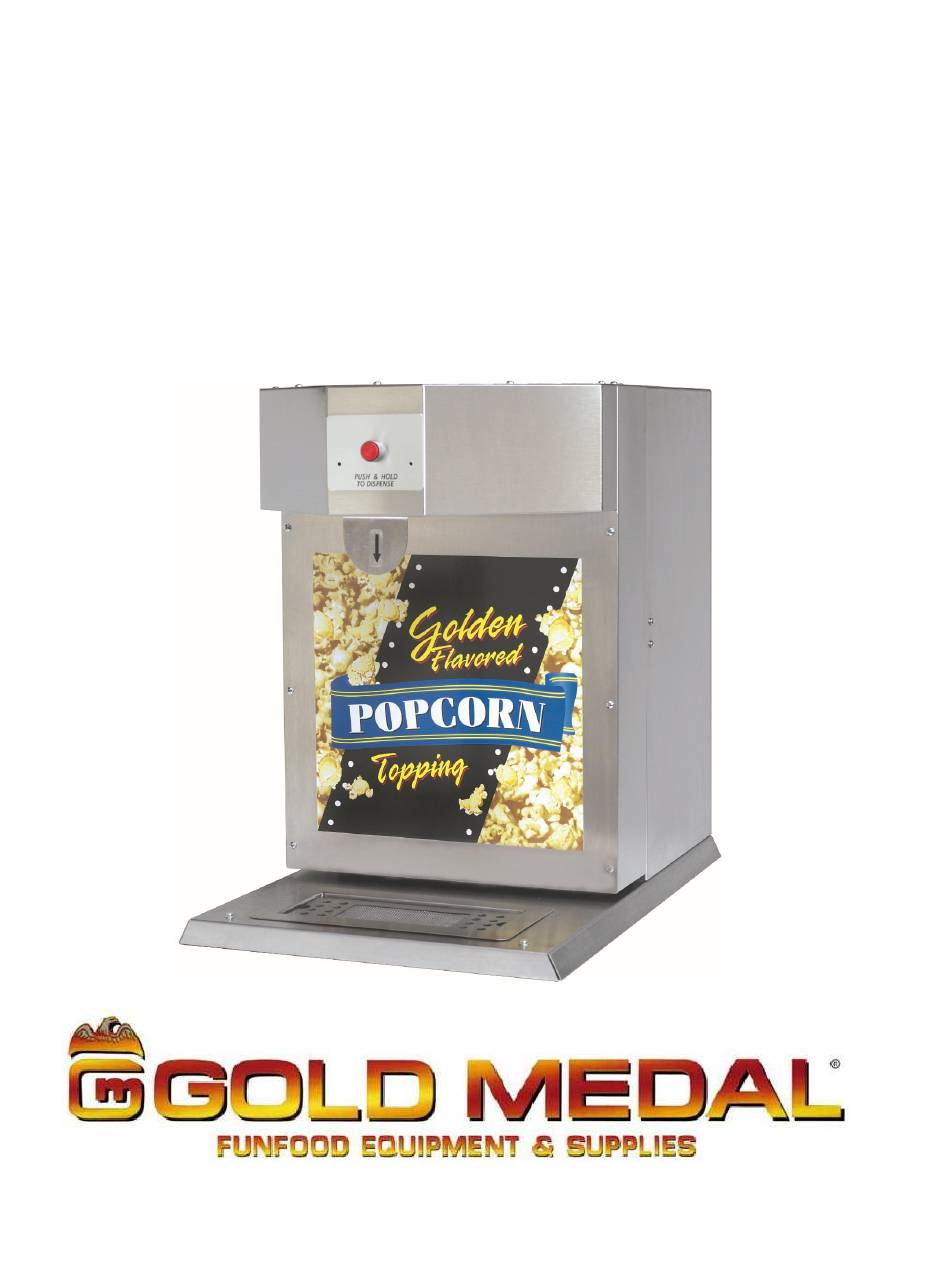

- Page 1 Part No. 39177 Countertop B.I.B. Topping Dispenser Instruction Manual Model #2496 Cincinnati, OH 45241-4807 USA...
-
Page 2: Safety Precautions
Read and understand operator’s manual and all other safety instructions before using this equipment. To order copies of the operator’s manual go to gmpopcorn.com or write to Gold Medal Products Co., 10700 Medallion Drive, Cincinnati, OH 45241 USA 1-(800)-543-0862 022_060215... - Page 3 Note: Improvements are always being made to Gold Medal’s equipment. This information may not be the latest available for your purposes. It is critical that you call Gold Medal’s Technical Service Department at 1-800-543-0862 for any questions about your machine operations, replacement parts, or any service questions.
-
Page 4: Installation Instructions
Failure to wire properly will void the warranty and may result in damage to the machine. It is Gold Medal Products Co.’s recommendation that this machine be plugged directly into a wall outlet. The use of extension cords is not recommended due to safety concerns, and may cause sacrificed and/or reduced performance. - Page 5 The heated cabinet maintains the topping at 135 degrees Fahrenheit. Important: This product is not intended for use with volatile food products, i.e. real butter. 1. Set the Model 2496 on the counter. See Electrical Requirements section for providing power to the unit.
-
Page 6: Care And Cleaning
DO NOT use oven cleaners or abrasive materials as they will damage parts of the machine. Sanitizing the Internal Parts (Tubing, Pump, Etc.) Gold Medal Products Co. recommends pumping sanitizer through the system nightly to clean pumps and dispensing lines. -
Page 7: Maintenance Instructions
No user serviceable parts inside. Refer servicing to qualified service personnel. 011_051514 CAUTION THE FOLLOWING SECTIONS OF THIS MANUAL ARE INTENDED ONLY FOR QUALIFIED SERVICE PERSONNEL WHO ARE FAMILIAR WITH ELECTRICAL EQUIPMENT. THESE ARE NOT INTENDED FOR THE OPERATOR. 027_010914 Model #2496... -
Page 8: Ordering Spare Parts
4. Please include your model number, serial number, and date of manufacture (located on the machine nameplate/data plate) with your order. 5. Address all parts orders to: Parts Department Gold Medal Products Co. 10700 Medallion Drive Cincinnati, Ohio 45241-4807 Or, place orders by phone or online:... - Page 9 Countertop B.I.B. Item Part No. Description 38971 Momentary Switch 39142 Dispenser Label 38566 No Drip Spout 39179 Decal 38936 Drip Pan 38938 Drip Pan Insert Weldment 77890 Spout Indicator 77891 Arrow Label Model #2496...
- Page 10 Hinge, Left Hand Female 49140 Hinge, Right Hand Male 49141 Hinge, Left Hand Male 49139 Hinge, Right Hand Female 79341 Fuse 74636 Fuse Holder 42532 Switch, DPST Rocker 22038 Lead-In Cord, 15 Amp 76026 Strain Relief 39175 Aluminum Tube Model #2496...
- Page 11 Countertop B.I.B. Item Part No. Description 91375 Tubing (sold by the foot) 67843 Hose Clamp (x3) 75110 Single Wire Hose Clamp (x3) 46304 Draw Latch 79269 In Line Strainer 47200 Finger Guard 46034 Keeper 79100G Bag Connector Model #2496...
- Page 12 Countertop B.I.B. Item Part No. Description 48018 Exhaust Blower 38824 Heat Element 250W, 120V 79888 B.I.B. Butter Pump 38990 Thermostat 135° F 55443 150 Ohm Resistor and Diode Wire Assy. 47199 Blower Plug & Cord Model #2496...
-
Page 13: Electrical Schematic
Countertop B.I.B. Electrical Schematic Model #2496... -
Page 14: Warranty
