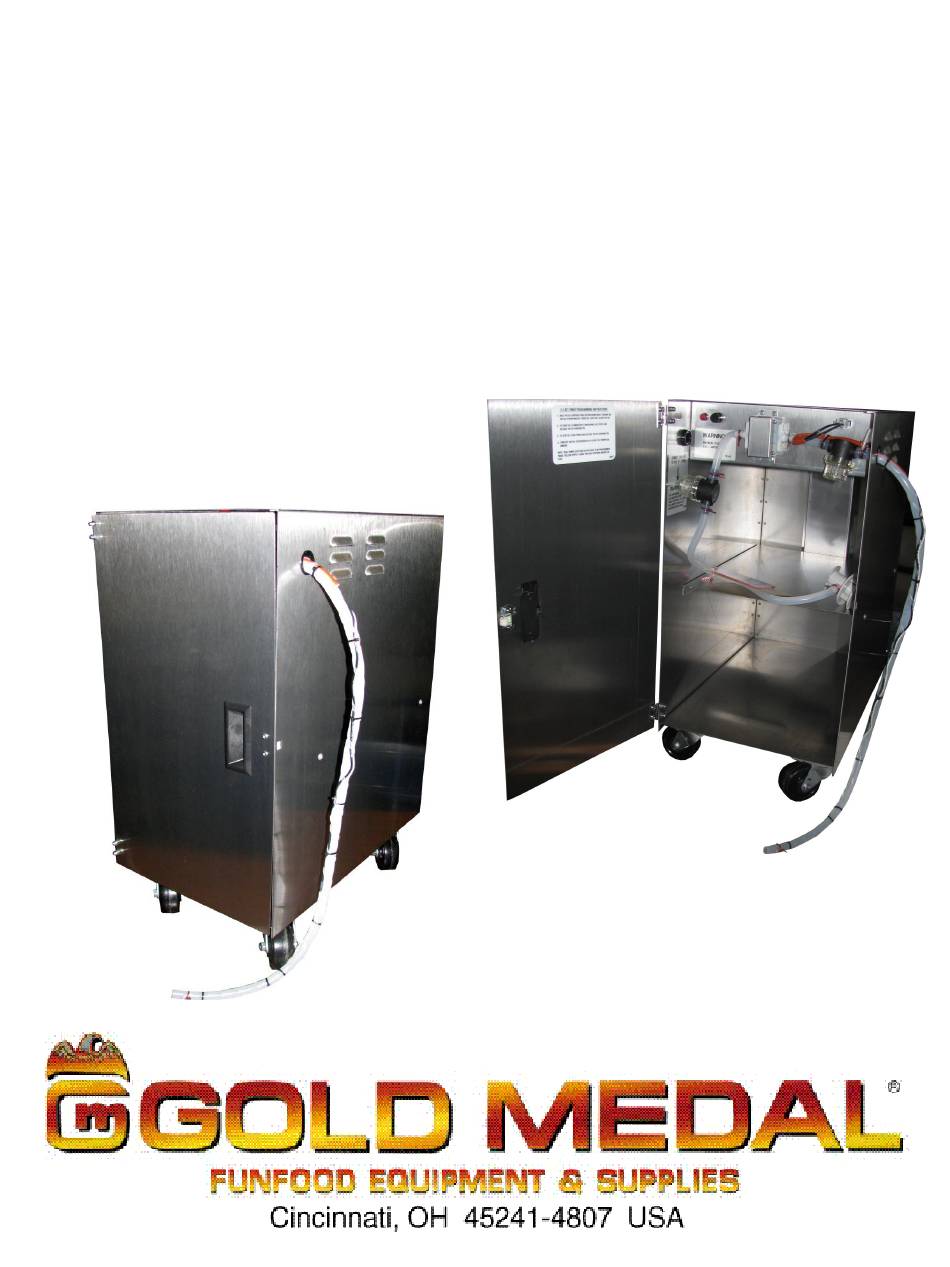

- Page 1 Part No. 39488 Bag-In-A-Box Enclosed Oil Dispenser Instruction Manual Model #2257GA & Model #2257GAD...
-
Page 2: Safety Precautions
Bag-In-A-Box Enclosed Oil Dispenser Safety Precautions Models #2257GA & #2257GAD... -
Page 3: Checking Shipment
ELECTRICAL REQUIREMENTS Model No. 2257GA & Model No. 2257GAD – 120 Volts, 2.15 Amps, 340 Watts, 60 Hz INSTALLATION INSTRUCTIONS 1. The enclosed oil dispenser rolls to any location where it can be connected to a popcorn machine. -
Page 4: Operating Instructions
2257GAD has a dual oil timer. Select salt popping to program the salt oil time. Select sweet popping to program the sweet oil time. For Flexi-Pop machines, select one of the load settings. Program the time and then select the second load setting, program the time for that setting. Models #2257GA & #2257GAD... - Page 5 When the box is properly mounted for dispensing, the top side flap will fold down from the top edge of the box, so that if one were to attempt to separate the flap it would be necessary to pull up from the bottom edge. See the illustrations below. Models #2257GA & #2257GAD...
- Page 6 Oil flow is crosspiece, slide hose connector hose connector onto the bag initiated. shell onto bag nozzle. nozzle. Models #2257GA & #2257GAD...
- Page 7 The order the blue hose connector from nozzle is now ready to be used with a blue hose connector. Gold Medal. Models #2257GA & #2257GAD...
-
Page 8: Cleaning Instructions
3. Fill the pail with a sanitizing solution. Gold Medal offers a product for this purpose, Chlor-Tech, part number 1109. Put the bag connector in the pail of sanitizer. Pump it through the lines by holding the dispense button until the pail is empty. -
Page 9: Maintenance Instructions
Bag-In-A-Box Enclosed Oil Dispenser MAINTENANCE INSTRUCTIONS Models #2257GA & #2257GAD... -
Page 10: Ordering Spare Parts
3. Please include your model name and machine serial number (located on the machine nameplate) with your order. 4. Address all parts orders to: Parts Department Gold Medal Products Co. 10700 Medallion Drive Cincinnati, Ohio 45241-4807 or, place orders at: (513) 769-7676 (800) 543-0862 Fax: (513) 769-8500 E-mail: goldme19@eos.net Models #2257GA & #2257GAD... -
Page 11: Parts Breakdown
P/N – 48732 Positioned underneath bracket Axial Fan (1) P/N - 48018 Heat Element (1) (250W, 120V) P/N – 38824 Positioned underneath Axial Thermostat (1) Jones Plug Assembly (1) P/N 38990 P/N - 67900 Parts Breakdown Models #2257GA & #2257GAD... -
Page 12: Electrical Schematic
Catch Door (1) Assembly (1) P/N - 12045 P/N - 39480 Hose Clamp (1) Swivel Caster (4) P/N 67843 P/N - 37513 Door (1) Use to attach to P/N - 39452 Popcorn Machine ELECTRICAL SCHEMATIC Model #2257GA Models #2257GA & #2257GAD... - Page 13 Bag-In-A-Box Enclosed Oil Dispenser Models #2257GA & #2257GAD...
- Page 14 Bag-In-A-Box Enclosed Oil Dispenser ELECTRICAL SCHEMATIC Model #2257GAD Models #2257GA & #2257GAD...
-
Page 15: Warranty
Bag-In-A-Box Enclosed Oil Dispenser WARRANTY WE WARRANT to the original purchaser the Gold Medal equipment sold by us to be free from defects in material or workmanship under normal use and service. Our obligation under this warranty shall be limited to the repair or replacement of any...
