Summary of Contents for Gold Medal 2496

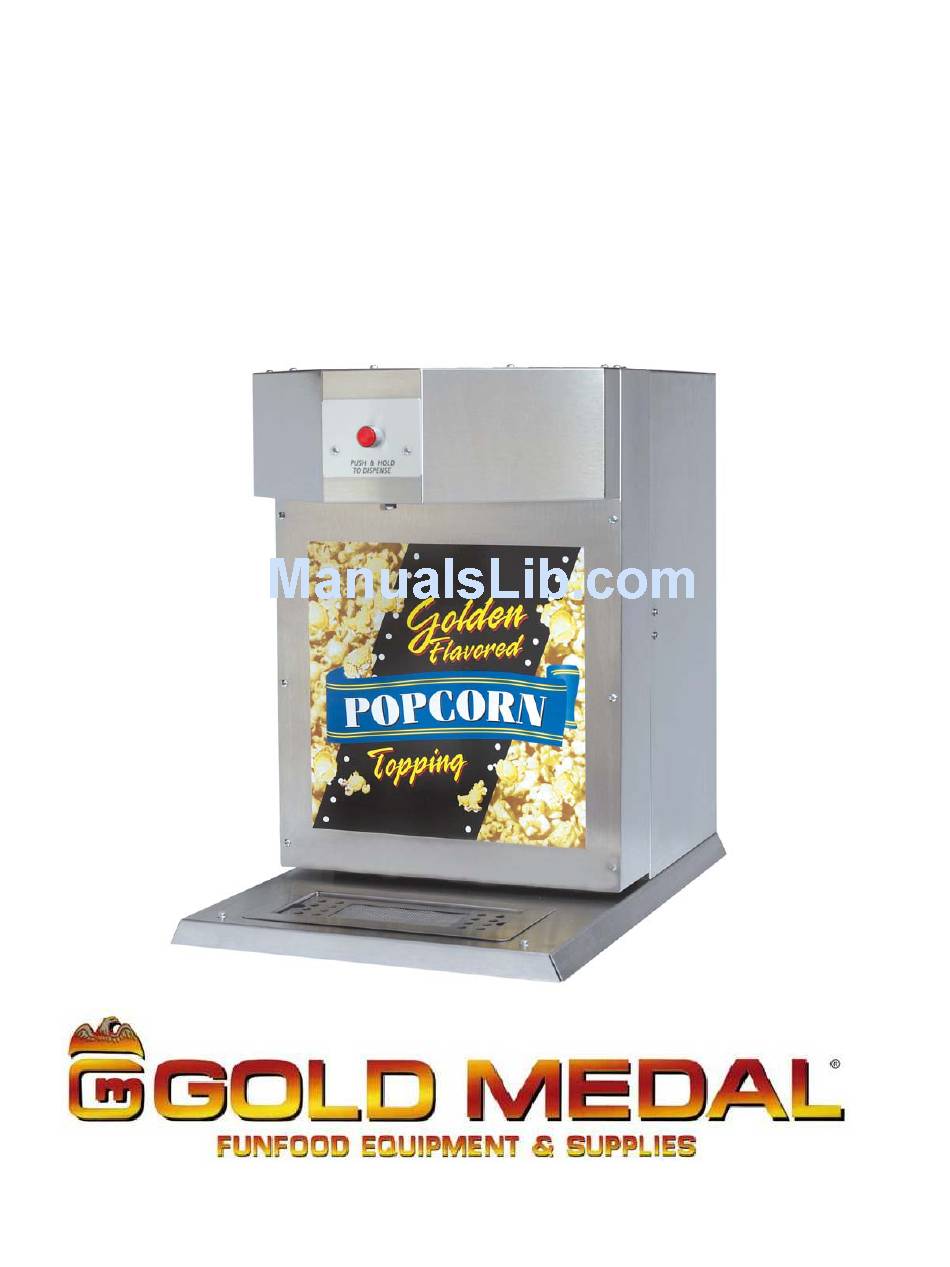

  • Page 1 Part No. 39177 Countertop B.I.B. Butter Dispenser Instruction Manual Model #2496 Cincinnati, OH 45241-4807 USA...
  • Page 2: Safety Precautions

    SAFETY PRECAUTIONS...
  • Page 3: Installation Instructions

    Butter dispenser be on a dedicated and protected circuit. Failure to wire properly will void the warranty and may result in damage to the machine. It is Gold Medal Products Company’s recommendation that this machine be plugged directly into a wall outlet. The use of extension cords is not recommended. They may cause sacrificed and/or reduced performance and can become a safety hazard.
  • Page 4: Care And Cleaning

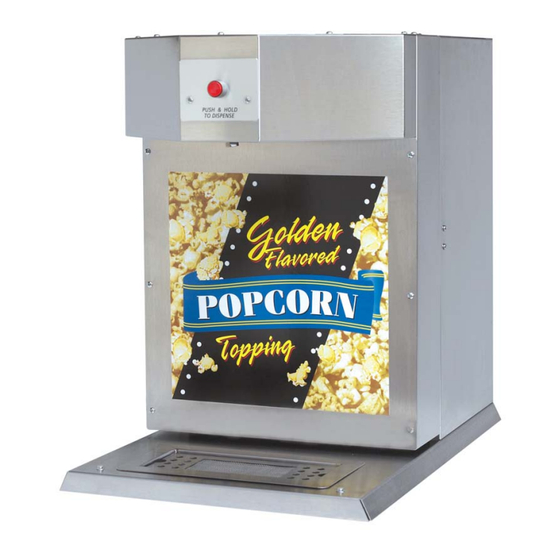

    The heated cabinet maintains the topping at 135 degrees Fahrenheit. Set the Model 2496 on the counter. Open the front to install the bag-in-a-box product. Place the bag-in-a-box vertically, with the opening for the quick-disconnect fitting at the bottom. Connect the fitting located on the back side of the door to the bag-in-a-box.
  • Page 5: Maintenance Instructions

    MAINTENANCE INSTRUCTIONS...
  • Page 6: Ordering Spare Parts

    ORDERING SPARE PARTS Always speak to a Gold Medal Products Technical Service Advisor before ordering any parts to help ensure accuracy for your product. Included diagrams may not be the latest information. 1. Identify the needed part by checking it against the photos, illustrations, and/or parts list.
  • Page 7 Countertop B.I.B. Item Part No. Description 38971 Momentary Switch 39142 Dispenser Label 38566 No Drip Spout 39179 Decal 38936 Drip Pan 38938 Drip Pan Insert Weldment 77890 Spout Indicator 77891 Arrow Label Model #2496...
  • Page 8 Hinge, Left Hand Female 49140 Hinge, Right Hand Male 49141 Hinge, Left Hand Male 49139 Hinge, Right Hand Female 79341 Fuse 74636 Fuse Holder 42532 Switch, DPST Rocker 22038 Lead-In Cord, 15 Amp 76026 Strain Relief 39175 Aluminum Tube Model #2496...
  • Page 9 Countertop B.I.B. Item Part No. Description 91375 Tubing (sold by the foot) 67843 Hose Clamp (x3) 75110 Single Wire Hose Clamp (x3) 46304 Draw Latch 79269 In Line Strainer 47200 Finger Guard 46034 Keeper Model #2496...
  • Page 10 Countertop B.I.B. Item Part No. Description 48018 Exhaust Blower 38824 Heat Element 250W, 120V 79888 B.I.B. Butter Pump 38990 Thermostat 135°F 55443 150 Ohm Resistor and Diode Wire Assy. 47199 Blower Plug & Cord Model #2496...
  • Page 11: Electrical Schematic

    Countertop B.I.B. Electrical Schematic Model #2496...
  • Page 12: Warranty

    WARRANTY WE WARRANT to the original purchaser the Gold Medal equipment sold by us to be free from defects in material or workmanship under normal use and service. Our obligation under this warranty shall be limited to the repair or replacement of any...
