Summary of Contents for Iskra MI7054
-
Page 1: Operating Instructions
OPERATING INSTRUCTIONS ANALOG MULTIMETER MI7054 20. 02. 2004 Page 1 of 8... -
Page 2: Table Of Contents
TABLE OF CONTENTS Safety features and precautions description Characteristic values measuring ranges and characteristic values Voltage Current Resistance ACCURACY AND INFLUENCING QUANTITIES Accuracy under Reference Conditions Frequency Influence Temperature Influence overload protection battery for resistance measurements OPERATING INSTRUCTIONS MEASUREMENTS Direct and Alternating Voltage Measurements Direct and Alternating Current Measurements Resistance Measurement MAINTENANCE... -
Page 3: Safety Features And Precautions
SAFETY FEATURES AND PRECAUTIONS You have selected an instrument which provides you with a high level of safety. The multime- ter is manufactured and tested in accordance with safety regulations IEC 61010–1 / DIN EN 61010–1 / VDE 0411–1. When used for its intended purpose, safety of the operator, as well as that of the instrument, is assured. -
Page 4: Description

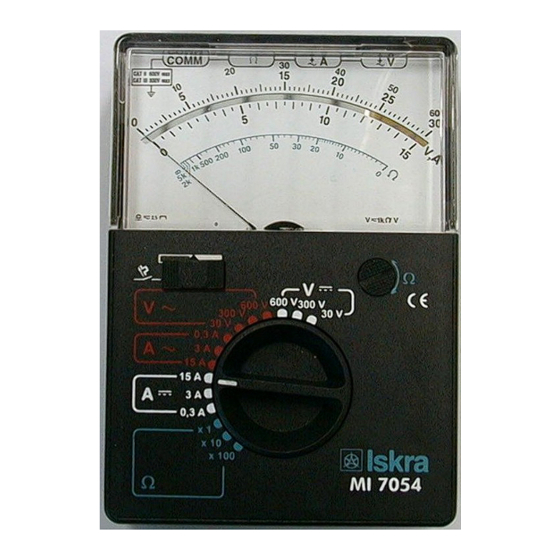

DESCRIPTION The MI7054 multimeter has been designed for measurements in industry, for training and in the commercial trades. Its greatest advantage is protection: The current measuring ranges are protected against overload with an electromagnetic protective relay (AUTO-FUSE), resistance ranges are protected with a PTC thermistor, and the voltage measuring ranges are protected through the use of adequately dimensioned electrical components. -
Page 5: Resistance
4.3 Resistance Measuring Scale Range and Value Measuring Cur- Battery Voltage Range at Scale Center rent Imax , prox. Ω x 1 Ω ... 30 Ω ... 3 kΩ 50 mA Ω x 10 Ω ... 300 Ω ... 30 kΩ 6 mA 1.5 V Ω... -
Page 6: Operating Instructions
OPERATING INSTRUCTIONS Initial Start-Up The instructions included below must be followed in order to assure error-free, safe use of the instrument: The instrument must be in the horizontal position during the performance of measurements. The battery must be inserted into the instrument for resistance measurements. First remove the battery compartment cover from the instrument, and then insert the battery (IEC LR6). -
Page 7: Direct And Alternating Voltage Measurements
The cut-off relay tends to hum at these higher current values! The MI7054 must be connected to the consumer in series. For reasons of safety, voltage to earth may not exceed 240 V~ or 50 V= for installation category II. -
Page 8: 10. Maintenance
Discharged or electrolyzed batteries must be removed from the battery compartment. The battery contacts should be kept clean, and reliable contact pressure must be assured. If the MI7054 remains unused for a lengthy period of time, remove the battery from the battery compartment as a precaution.
