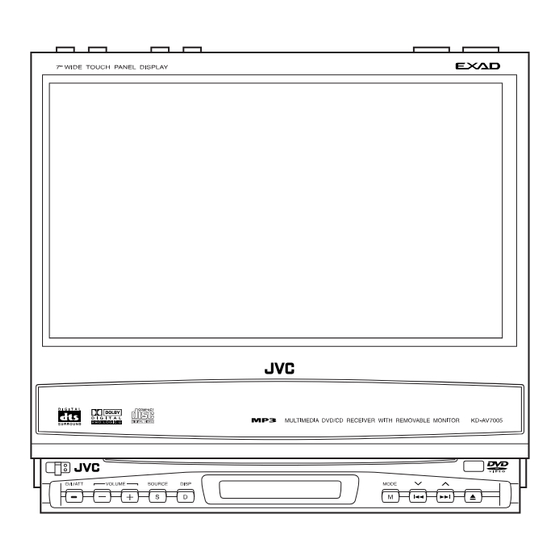

JVC KD-AV7005 Service Manual

Dvd receiver with monitor.
Hide thumbs

Advertisement

SERVICE MANUAL
DVD RECEIVER WITH MONITOR
2005
1
MA101
KD-AV7000,KD-AV7001,
KD-AV7005,KD-AV7008,
KV-MAV7001,KV-MAV7002
1
PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
2
SPECIFIC SERVICE INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7
3
DISASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8
4
ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-35
5
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-51
TABLE OF CONTENTS
COPYRIGHT © 2005 Victor Company of Japan, Limited
KD-AV7000
Area suffix
J ------------- Northern America
KD-AV7001
Area suffix
E ------------- Southern Europe
EU ------------------------- Turkey
KD-AV7005
Area suffix
UN --------------------------Asean
U -------------------- Other Areas
KD-AV7008
Area suffix
A ------------------------ Australia
KV-MAV7001,KV-MAV7002
Area suffix
U -------------------- Other Areas
2005/1
