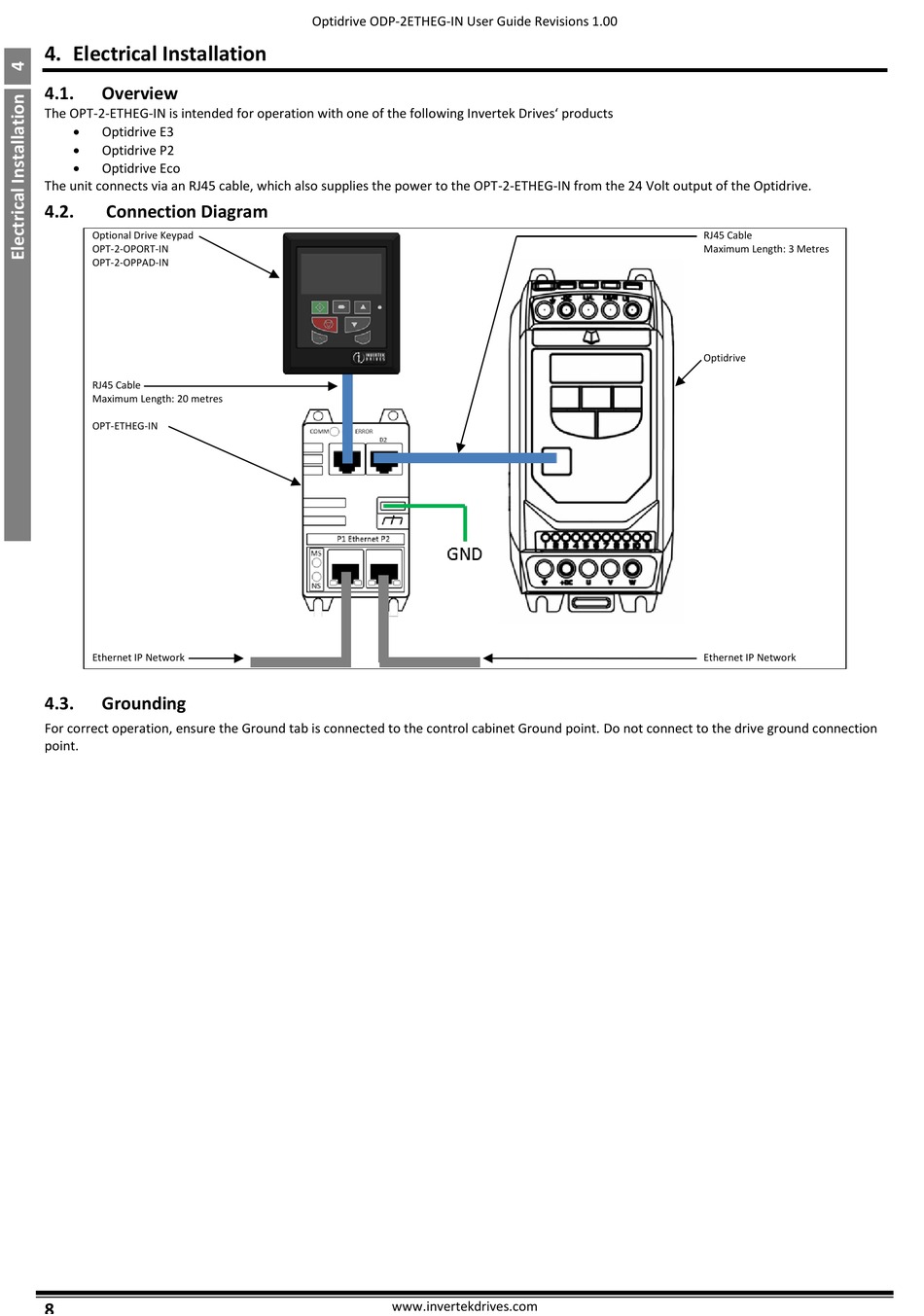

4. Electrical Installation

4.1.

Overview

The OPT-2-ETHEG-IN is intended for operation with one of the following Invertek Drives' products

Optidrive E3

Optidrive P2

Optidrive Eco
The unit connects via an RJ45 cable, which also supplies the power to the OPT-2-ETHEG-IN from the 24 Volt output of the Optidrive.
4.2.

Connection Diagram

Optional Drive Keypad
OPT-2-OPORT-IN
OPT-2-OPPAD-IN
RJ45 Cable
Maximum Length: 20 metres
OPT-ETHEG-IN
Ethernet IP Network
4.3.

Grounding

For correct operation, ensure the Ground tab is connected to the control cabinet Ground point. Do not connect to the drive ground connection
point.
8
Optidrive ODP-2ETHEG-IN User Guide Revisions 1.00
www.invertekdrives.com
RJ45 Cable
Maximum Length: 3 Metres
Optidrive
Ethernet IP Network
