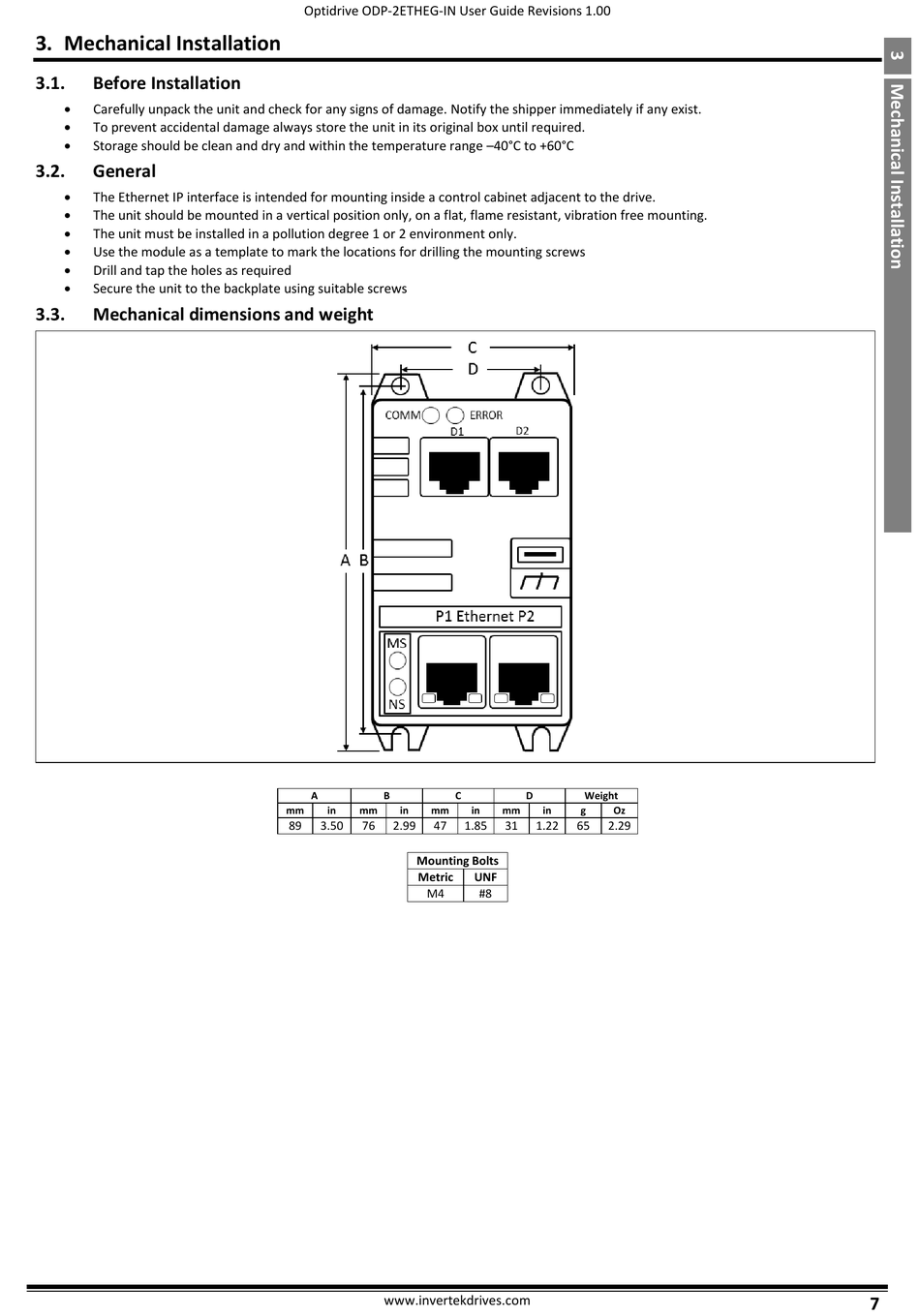

3. Mechanical Installation
3.1.
Before Installation
Carefully unpack the unit and check for any signs of damage. Notify the shipper immediately if any exist.
To prevent accidental damage always store the unit in its original box until required.
Storage should be clean and dry and within the temperature range –40°C to +60°C
3.2.
General
The Ethernet IP interface is intended for mounting inside a control cabinet adjacent to the drive.
The unit should be mounted in a vertical position only, on a flat, flame resistant, vibration free mounting.
The unit must be installed in a pollution degree 1 or 2 environment only.
Use the module as a template to mark the locations for drilling the mounting screws
Drill and tap the holes as required
Secure the unit to the backplate using suitable screws
3.3.
Mechanical dimensions and weight
Optidrive ODP-2ETHEG-IN User Guide Revisions 1.00
A
B
C
mm
in
mm
in
mm
89
3.50
76
2.99
47
Mounting Bolts
Metric
M4
www.invertekdrives.com
D
Weight
in
mm
in
g
Oz
1.85
31
1.22
65
2.29
UNF
#8
7
