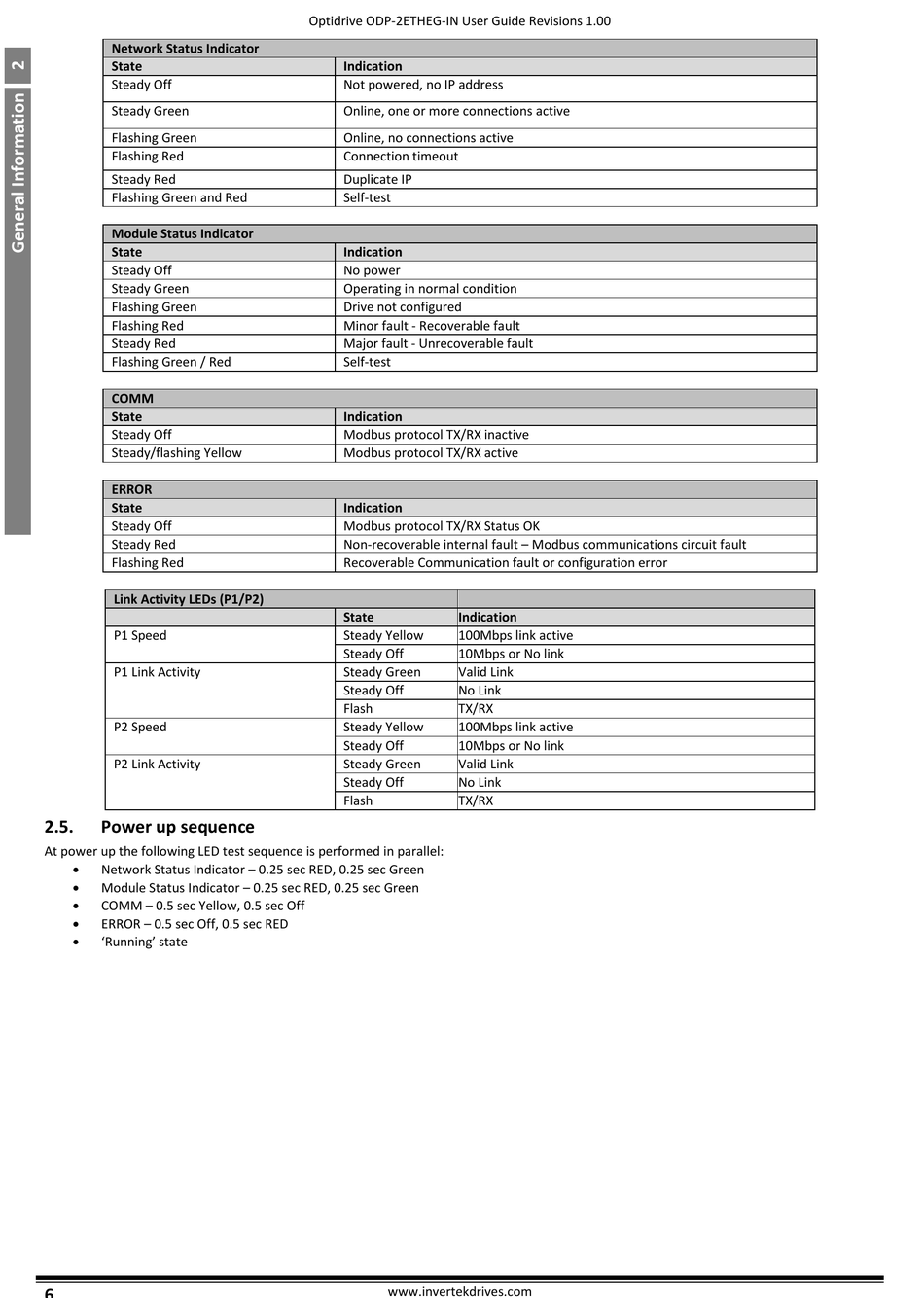

Network Status Indicator
State
Steady Off
Steady Green
Flashing Green
Flashing Red
Steady Red
Flashing Green and Red
Module Status Indicator
State
Steady Off
Steady Green
Flashing Green
Flashing Red
Steady Red
Flashing Green / Red
COMM
State
Steady Off
Steady/flashing Yellow
ERROR
State
Steady Off
Steady Red
Flashing Red
Link Activity LEDs (P1/P2)
P1 Speed
P1 Link Activity
P2 Speed
P2 Link Activity
2.5.

Power up sequence

At power up the following LED test sequence is performed in parallel:

Network Status Indicator – 0.25 sec RED, 0.25 sec Green

Module Status Indicator – 0.25 sec RED, 0.25 sec Green

COMM – 0.5 sec Yellow, 0.5 sec Off

ERROR – 0.5 sec Off, 0.5 sec RED

'Running' state
6
Optidrive ODP-2ETHEG-IN User Guide Revisions 1.00
Indication
Not powered, no IP address
Online, one or more connections active
Online, no connections active
Connection timeout
Duplicate IP
Self-test
Indication
No power
Operating in normal condition
Drive not configured
Minor fault - Recoverable fault
Major fault - Unrecoverable fault
Self-test
Indication
Modbus protocol TX/RX inactive
Modbus protocol TX/RX active
Indication
Modbus protocol TX/RX Status OK
Non-recoverable internal fault – Modbus communications circuit fault
Recoverable Communication fault or configuration error
State Indication
Steady Yellow 100Mbps link active
Steady Off 10Mbps or No link
Steady Green Valid Link
Steady Off No Link
Flash TX/RX
Steady Yellow 100Mbps link active
Steady Off 10Mbps or No link
Steady Green Valid Link
Steady Off No Link
Flash TX/RX
