2. General Information

2.1.

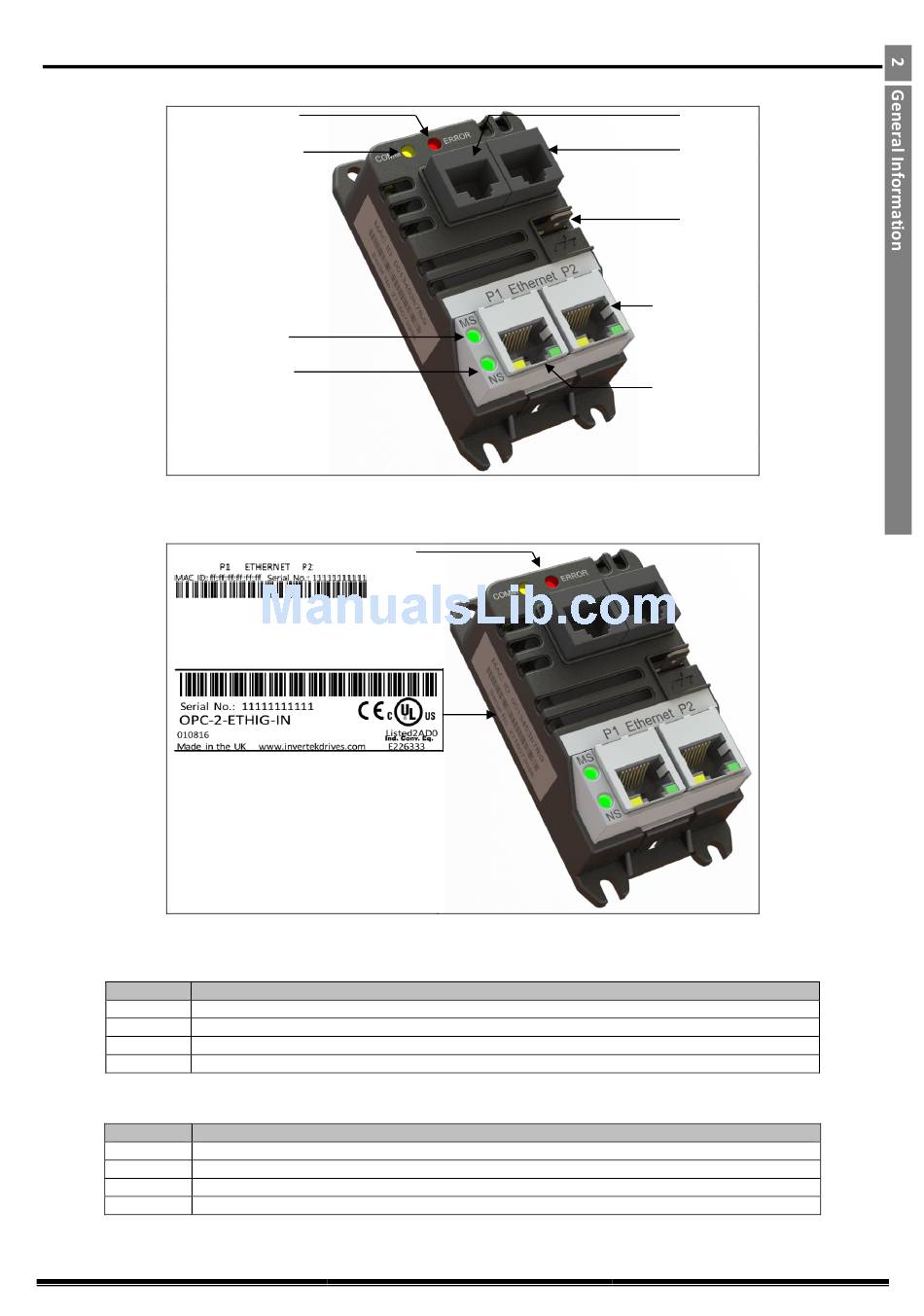

Overview

ERROR LED Indicator
COMM LED Indicator
Module Status LED
Network Status LED
2.2.

Labelling

The OPT-2-ETHEG-IN has two labels, as shown below.
Top Label :
Provides the MAC ID and PR ID Data for the
module
Side Label :
Provides, the model code and serial
number data
2.3.

Connection Ports

The interface connects to the Ethernet IP network and slave drive via the built in connection ports.
Port Function
P1 Ethernet Port 1
P2 Ethernet Port 2
IOIOI 1 RJ45 Drive Data Connection
IOIOI 2 RJ45 Aux equipment Connection
2.4.

Status Indicator LEDs

Status LED Function
NS EtherNet/IP Network Status Indicator
MS MS: EtherNet/IP Network Status Indicator
COMM COMM: Modbus Communication Indicator ( OPC-2-ETHIG-IN <-> Drive )
ERROR Modbus Error Indicator (OPC-2-ETHIG-IN <-> Drive )
Optidrive ODP-2ETHEG-IN User Guide Revisions 1.00
www.invertekdrives.com
Serial Port 1
Serial Port 2
Ground Tab
Ethernet Port P2
Ethernet Port P1
5
