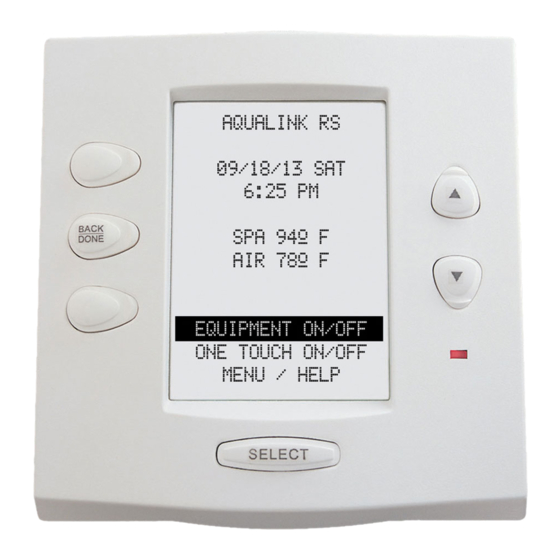

Jandy AquaLink RS Installation Instructions

AquaLink
Installation Instructions- Jandy p/n 6796
DIP
Sw itch
# 2 on
1. Turn off power.
IMPORTANT: TURN OFF ALL POWER AT THE BREAKERS BEFORE PROCEEDING.
2. Mount relay.

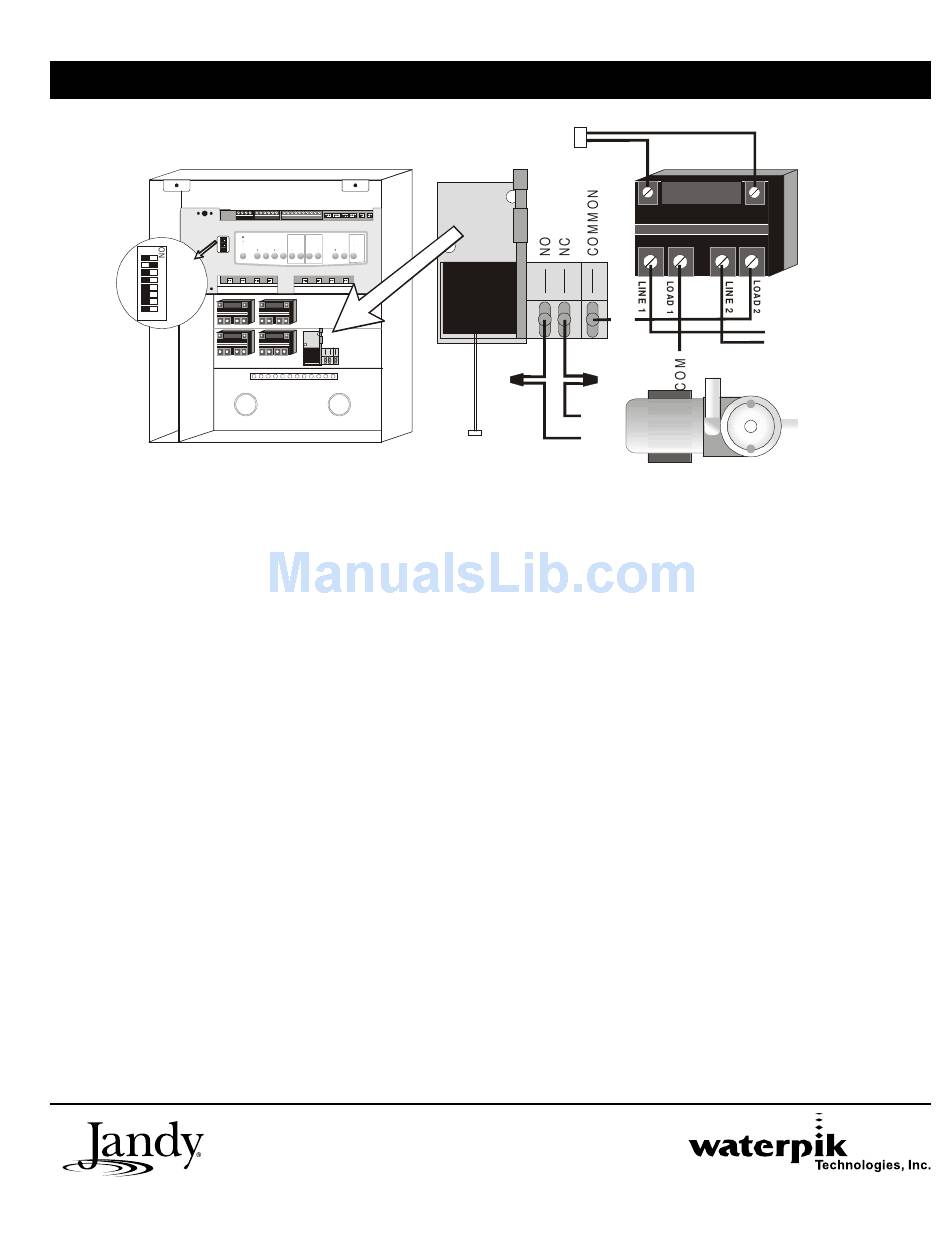

The Two-speed Relay must be mounted in one of the four positions on the lower step of the relay
compartment in the AquaLink Power Center. If necessary, remove a relay from the bottom step and
re-install it on the top step to make room for the Two-speed Relay. Mount the relay using one screw
as shown in the diagram above.
3. Wire relay.
Using high voltage wire, connect the normally open (NO) wire from the Two-speed Relay to the low
speed terminal on the filter pump. Connect the normally closed (NC) wire from the Two-speed relay to
the high speed terminal on the filter pump. Connect the common (C) wire to a Load terminal on a
standard Jandy relay, and connect the other Load on that standard relay to the common terminal on
the filter pump. Connect the Line terminals of the standard relay to 240 VAC power. Connect the coil
connectors of the Two-speed Relay to the Aux. 2 socket on the Power Center P.C. Board (see wiring
diagram on Power Center door and in Installation Manual).
4. Turn on DIP Switch #2.
For the system to recognize that it is connected to a two-speed pump, you must move DIP Switch #2
on the Power Center Dip Switches to the ON position.
5. Test system; program Controller.
Check your wiring, then turn power back on. The module may be tested by using the Service Mode
button on the Power Center, but note that this mode allows only on/off switching. The two speed
function is only available through the Controller or a Spa Side Switch. See main Owner's Manual, and
follow the directions under "Label Auxiliaries" on page 8.
Sheet # 6947 Rev. D, 1/01
RS
®
Two-Speed Relay
6000 Condor Drive, Moorpark, CA, USA 93021 • 707.776.8200 FAX 707.763.7785
480 S. Service Road West, Oakville, Ontario, Canada L6K 2H4 • 905.844.8233 FAX 905.844.2635
For Technical Support call 707-776-8200, ext. 260
TO FILTER PUM P
SO CKE T
R ED
RED
BLK
H IG H
LO W
TO AUX 2
SO CKE T
24 0
VA C
F ilte r
P um p
Litho in U.S.A. © Water Pik Technologies, Inc.0101
