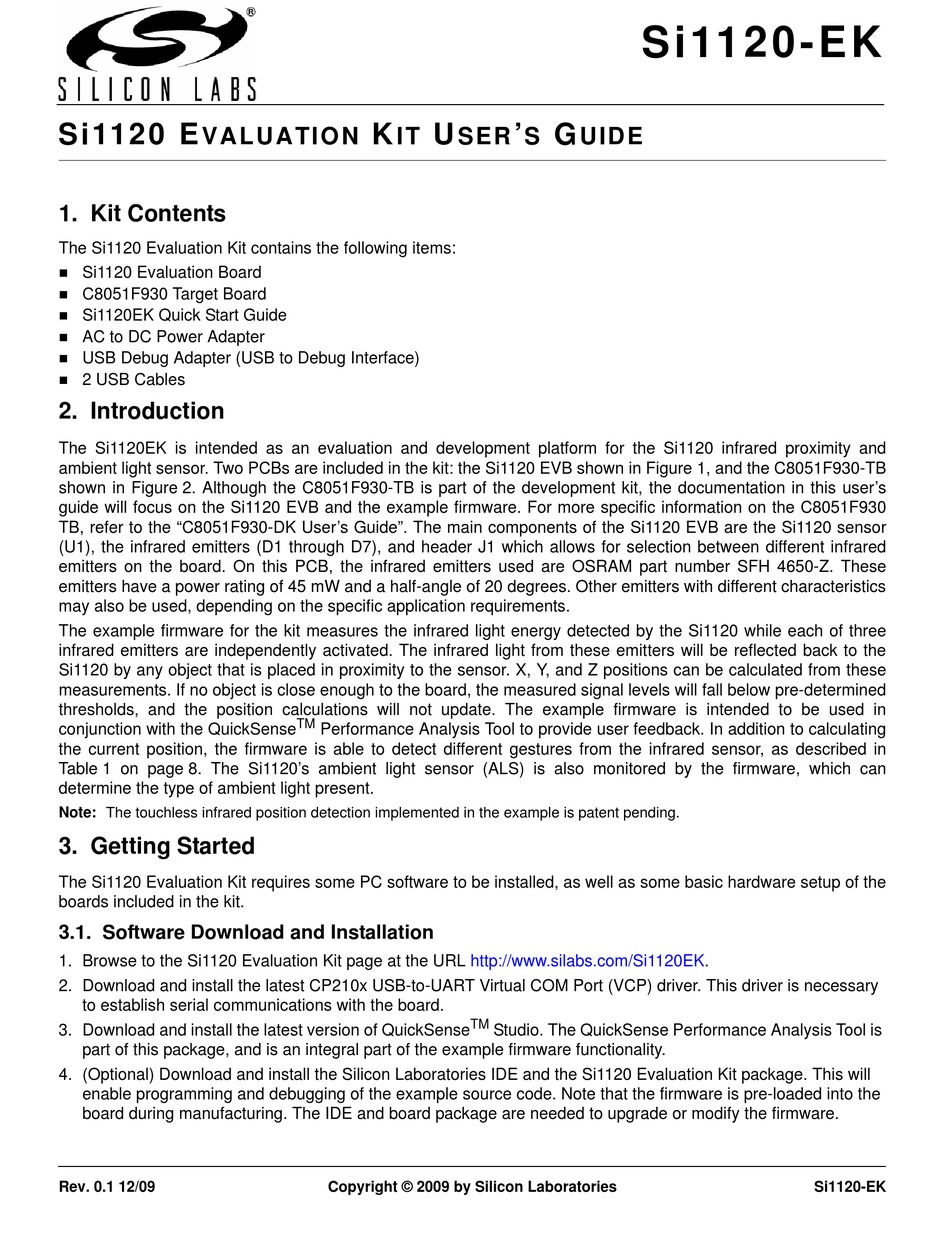

Silicon Laboratories Si1120 User Manual

S i 11 2 0 E
VALUATION

1. Kit Contents

The Si1120 Evaluation Kit contains the following items:
 Si1120 Evaluation Board
 C8051F930 Target Board

Si1120EK Quick Start Guide
 AC to DC Power Adapter
 USB Debug Adapter (USB to Debug Interface)
 2 USB Cables
2. Introduction
The Si1120EK is intended as an evaluation and development platform for the Si1120 infrared proximity and
ambient light sensor. Two PCBs are included in the kit: the Si1120 EVB shown in Figure 1, and the C8051F930-TB
shown in Figure 2. Although the C8051F930-TB is part of the development kit, the documentation in this user's
guide will focus on the Si1120 EVB and the example firmware. For more specific information on the C8051F930
TB, refer to the "C8051F930-DK User's Guide". The main components of the Si1120 EVB are the Si1120 sensor
(U1), the infrared emitters (D1 through D7), and header J1 which allows for selection between different infrared
emitters on the board. On this PCB, the infrared emitters used are OSRAM part number SFH 4650-Z. These
emitters have a power rating of 45 mW and a half-angle of 20 degrees. Other emitters with different characteristics
may also be used, depending on the specific application requirements.
The example firmware for the kit measures the infrared light energy detected by the Si1120 while each of three
infrared emitters are independently activated. The infrared light from these emitters will be reflected back to the
Si1120 by any object that is placed in proximity to the sensor. X, Y, and Z positions can be calculated from these
measurements. If no object is close enough to the board, the measured signal levels will fall below pre-determined
thresholds, and the position calculations will not update. The example firmware is intended to be used in
conjunction with the QuickSense
the current position, the firmware is able to detect different gestures from the infrared sensor, as described in
Table 1 on page 8. The Si1120's ambient light sensor (ALS) is also monitored by the firmware, which can
determine the type of ambient light present.
Note: The touchless infrared position detection implemented in the example is patent pending.

3. Getting Started

The Si1120 Evaluation Kit requires some PC software to be installed, as well as some basic hardware setup of the
boards included in the kit.
3.1. Software Download and Installation
1. Browse to the Si1120 Evaluation Kit page at the URL http://www.silabs.com/Si1120EK.
2. Download and install the latest CP210x USB-to-UART Virtual COM Port (VCP) driver. This driver is necessary
to establish serial communications with the board.
3. Download and install the latest version of QuickSense
part of this package, and is an integral part of the example firmware functionality.
4. (Optional) Download and install the Silicon Laboratories IDE and the Si1120 Evaluation Kit package. This will
enable programming and debugging of the example source code. Note that the firmware is pre-loaded into the
board during manufacturing. The IDE and board package are needed to upgrade or modify the firmware.
Rev. 0.1 12/09
K U
I T SER
TM
Performance Analysis Tool to provide user feedback. In addition to calculating
TM
Copyright © 2009 by Silicon Laboratories
S i 11 2 0 - E K
' G
S UIDE
Studio. The QuickSense Performance Analysis Tool is
Si1120-EK
